Unitronics IO-LC1 Installation Guide

I/O Expansion Modules and Adapters Installation Guide
2
Unitronics
Mounting
Note that figures are for illustrative purposes only.

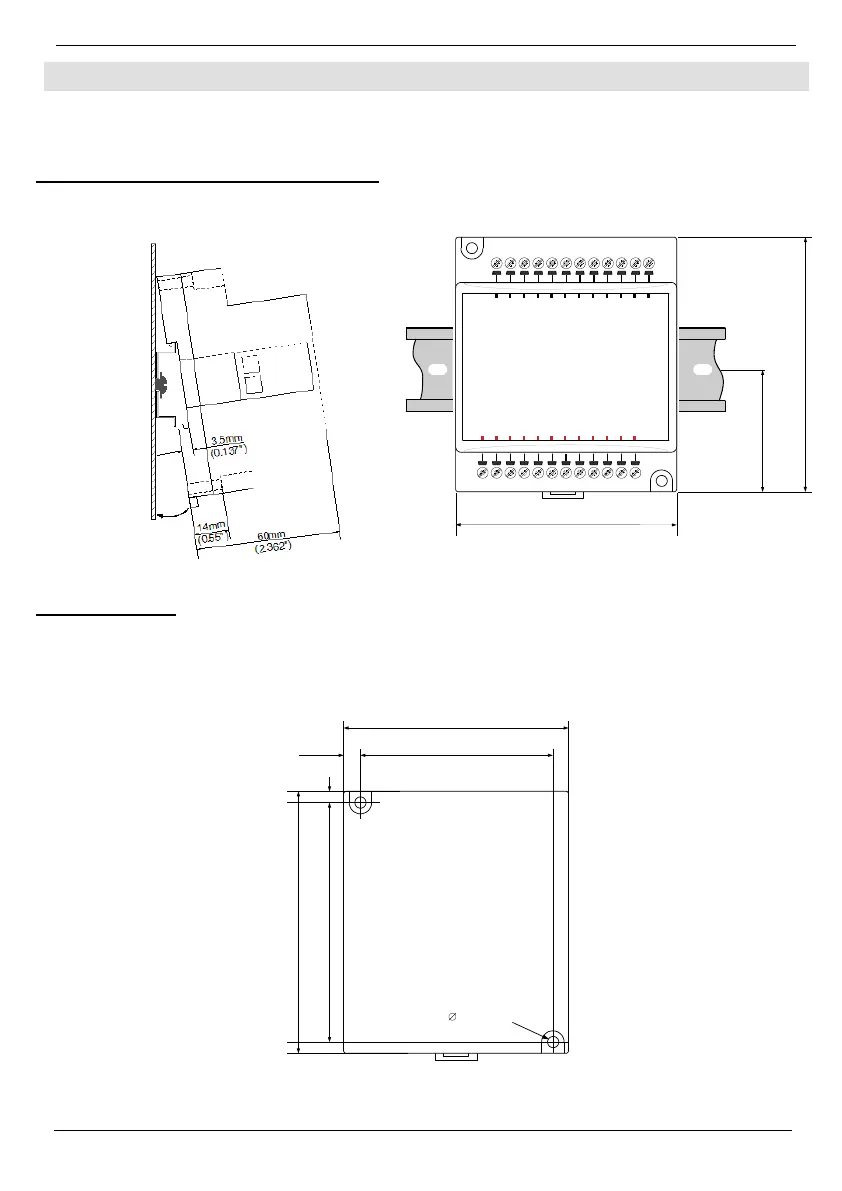

DIN-rail mounting - I/O Expansion Modules
Snap the device onto the DIN rail as shown below; the module will be squarely situated on the DIN rail.
80mm
(3.15")
93mm
(3.66")
44.5mm
(1.75")
Screw-Mounting
The figure below is drawn to scale. It may be used as a guide for screw-mounting the module. Mounting screw
type: either M3 or NC6-32.
4mm
5.8mm
(0.228")
85mm
(3.346")
80mm
(3.15")
68.4mm
(2.693")
93mm
(3.66")
4mm (x2)
(0.16")
(0.16")
