Connect to Input Sources and Monitor System
One typical Apollo Twin MkII setup is illustrated below. For complete details about all of Apollo
Twin MkII's connectors and controls, see Controls & Connectors.

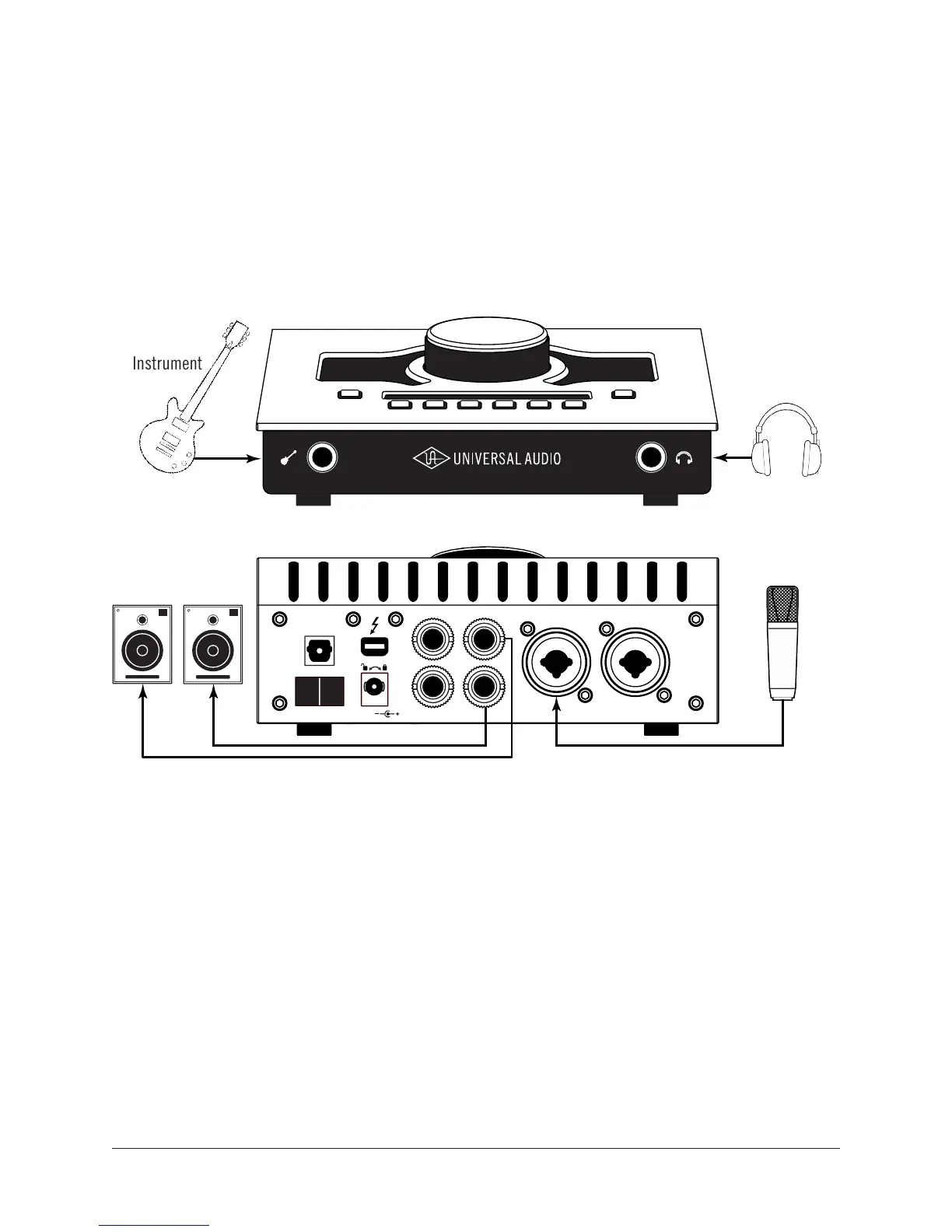

Typical Apollo Twin MkII setup connections
