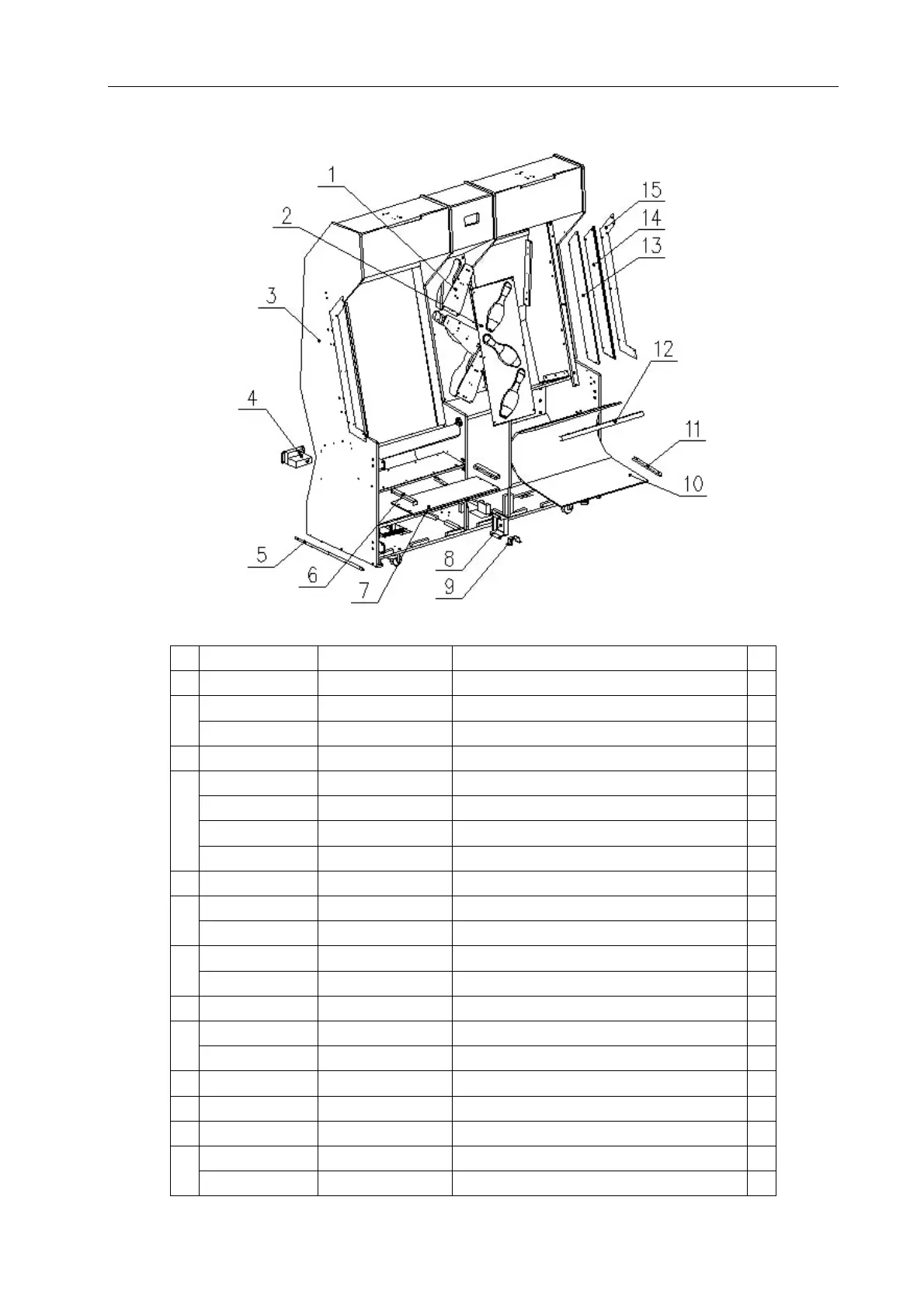

9.2 Display Assy.
No. Part No. Code No. Name Qty
1 L105-222-000 20611605028 Light bar fixed plate 3
2
L105-235-000 20611605002 Light plate 1
L105-109-000 20101010006 Hexagon flat round head screws 12
3 L105-002-000 29911605A004 Display Wood frame Assy. 1
4
L105-296-000 26000042000A Power box assy. 1
L105-293-000 26000042001A Power box 1
L105-294-000 26000042002A Power box cover 1
L105-295-000 26000042003 Cable cover 1
5 L105-214-000 20211605009 Side angle bead 2
6
L105-229-000 20611605001 Lane side light bar 2 4
L105-105-000 20101000110 Cross recessed pan head screw suite 8
7
L105-332-000
20611605043 Lane rear board 2
L105-128-000 20101102007 Cross recessed sunk head screw 4
8 L105-234-000 20611605029 Protect cover 1
9
L105-233-000 20211605043 Power fixed plate 1
L105-133-000 20102000012 Hexagon flange nut 8
10 L105-225-000 20611605011 Damping foam 1 2
11 L105-228-000 20211605017 Foam pressing plate 4
12 L105-226-000 20211605016 Damping foam fixed bar 2
13
L105-220-000 20611605016 Side light board 2
L105-130-000 20101108019 Hexagon flat round head screws 8
