Lane Master Manual
07/19/2017
46

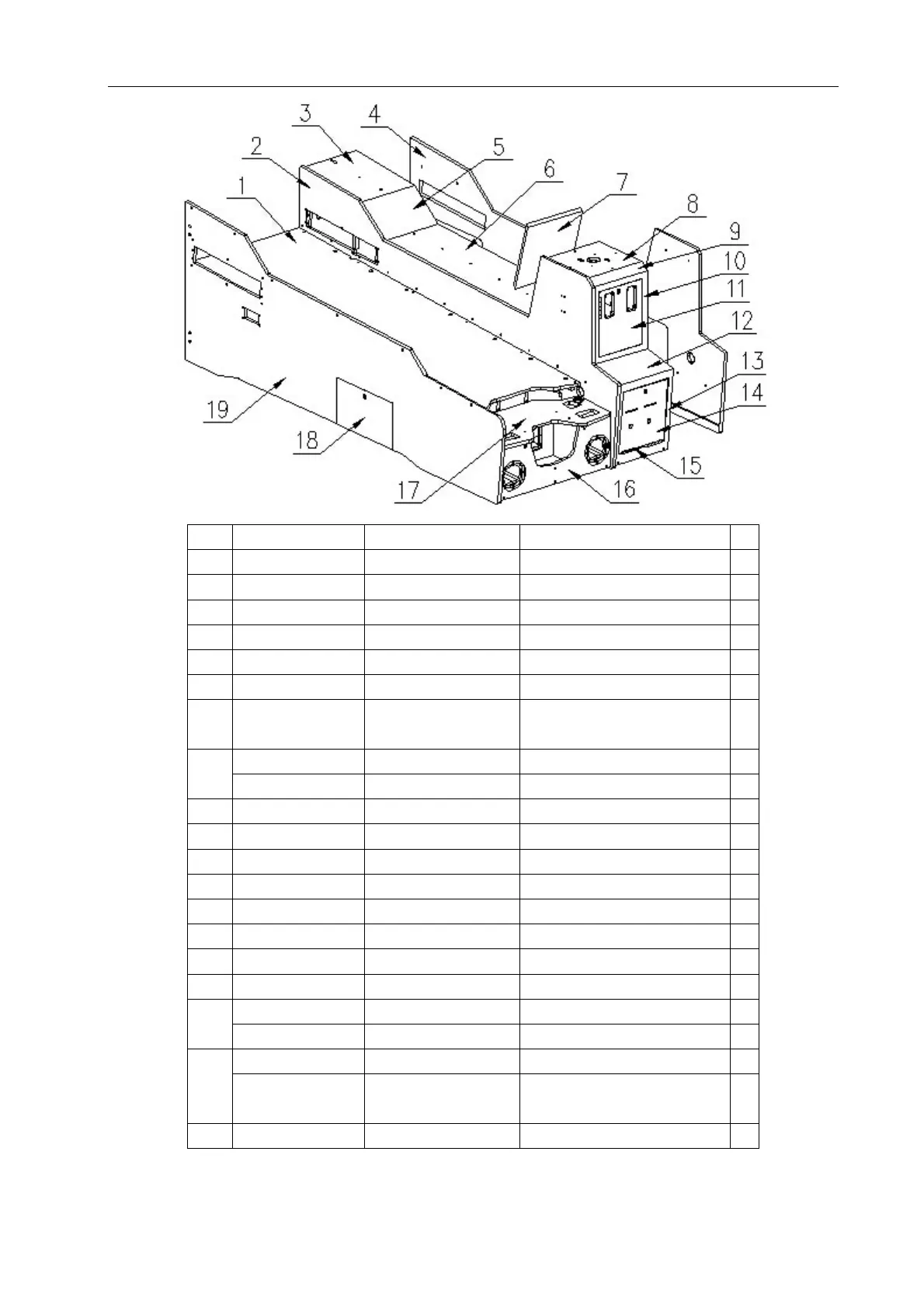

No. Part No. Code No. Name Qty
1 L105-448-001 20311605089 Lane board 2
2 L105-442-000 20311605068 Side board 1
3 L105-461-000 20311605075 Up front connected board
1
4 L105-471-000 20311605019 Connected side board 1
5 L105-462-000 20311605076 Up front cantboard 1
6 L105-463-000 20311605077 Long connected board 1
7 L105-464-000 20311605078
Rear connected
cantboard
1
8
L105-465-000 20311605079 Bowling decoration board
1
L105-146-000 20114000005 Nut 4
9 L105-466-000 20311605080 Small connected board 1
10 L105-467-000 20311605081 Coin board 1
11 L105-473-000 20311605086 Coin door board 1
12 L105-468-000 20311605082 Front connected board 1
13 L105-469-000 20311605083 Ticket board 1
14 L105-441-000 20311605A004
Ticket door plate 1
15 L105-507-000 26300000001 Hinge 4
16 L105-455-000 20311605073 Speaker fixed plate 1
17
L105-456-000 20311605014 Front light support plate 1
L105-342-000 20611605046 Light cover fixed plate 1
18
L105-472-000 20311605084 Ball out cover 1
L105-117-000 20101030027
Cross recessed pan head
screw
4
19 L105-443-000 20311605A003
Side board 1
