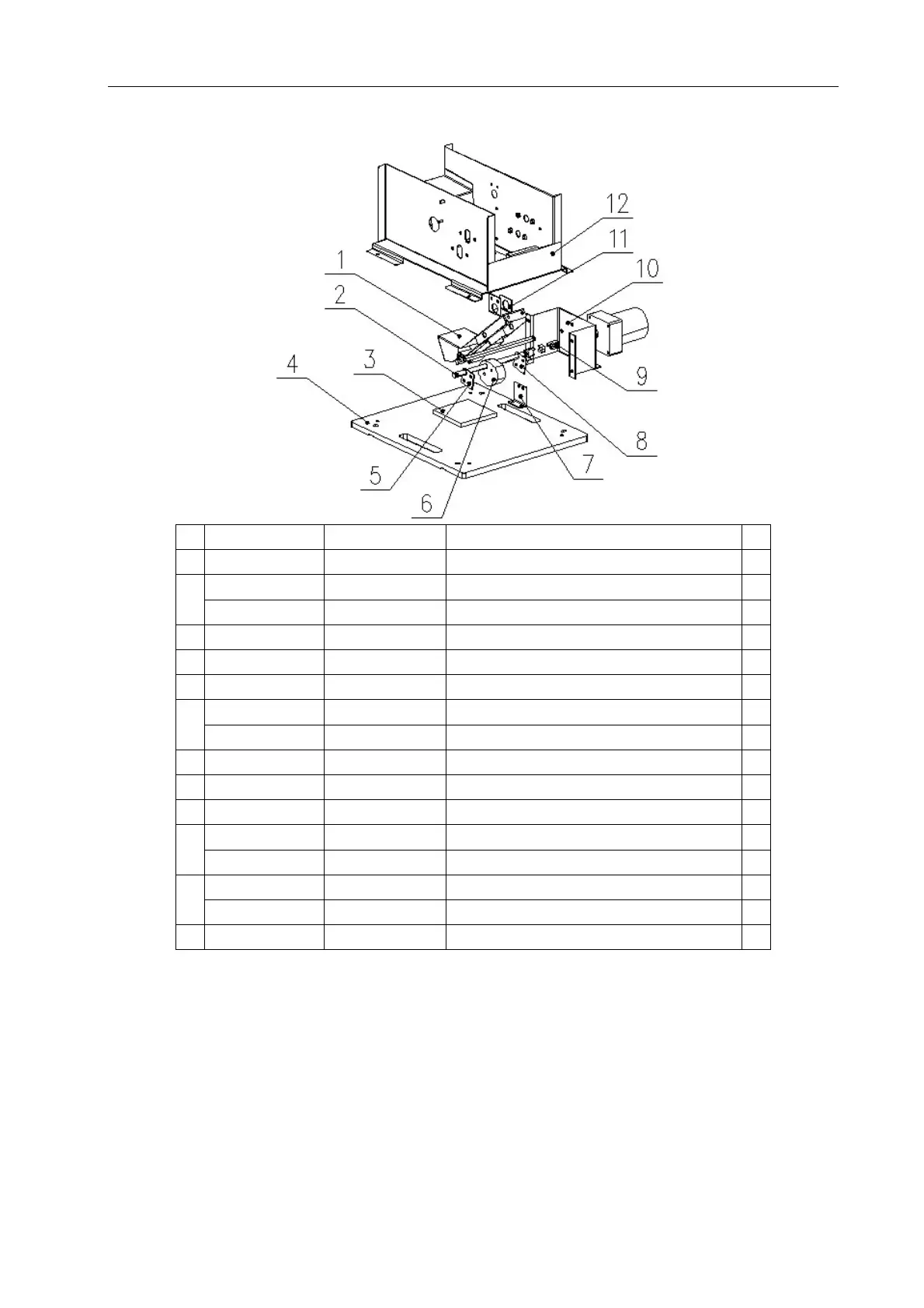

9.7 Ball out Assy.
No. Part No. Code No. Name Qty
1 L105-249-000 20211605023 Up bowling bracket 1
2
L105-250-000 20211605024 Motor shaft 1
L105-501-000 20106130014 Diamond bearing 2
3 L105-255-000 20611605014 Damping board 1
4 L105-481-000 20311605024 Cabinet support board 1
5 L105-252-000 20211605051 Eccentric wheel pad 1
6
L105-251-000 20611605023 Eccentric wheel 1
L105-103-000 20101000044 Cross recessed pan head screw suite 2
7 L105-254-000 20211605053 Sensor fixed plate B 1
8 L105-253-000 20211605052 Sensor baffle 1
9
L105-578-000 20117000401 Coupling
1
10
L105-248-000 20211605050 Motor bracket 1
L105-102-000 20101000041 Cross recessed pan head screw suite 4
11
L105-247-000 20211605049 Sensor fixed plate A 1
L105-131-000 20102000002 Non-metallic hexagon lock nut 2
12 L105-242-000 20211605057 Cabinet bracket 1
