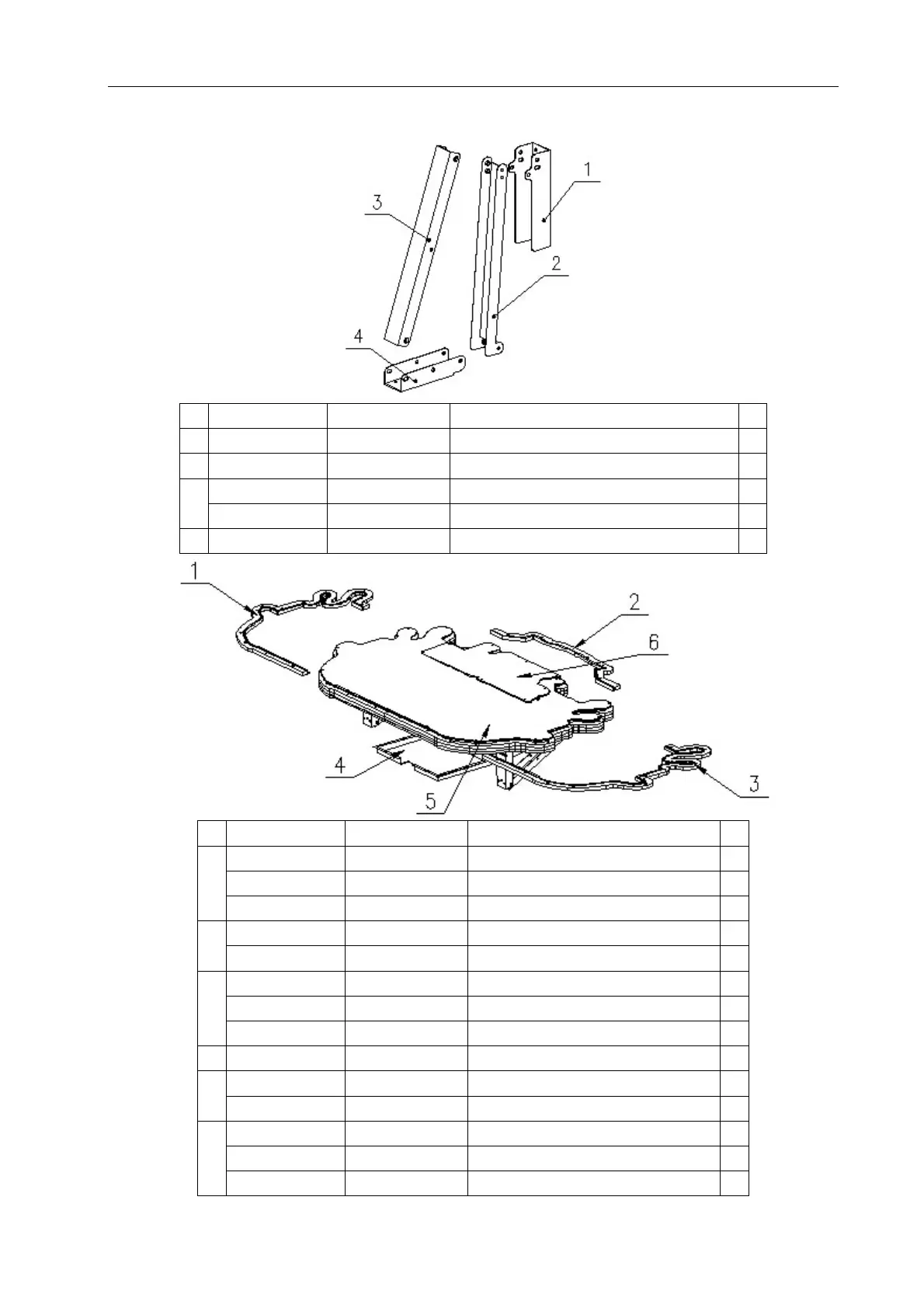

9.10 Marquee Assy.
No. Part No. Code No. Name Qty
1 L105-278-000 20211605034 Marquee fixed plate 2
2 L105-280-000 20211605035 Marquee connected rod 2
3
L105-282-000 20211605037 Fixed connected rod 2
L105-114-000 20101020186 Cross recessed hexagon screw suite 16
4 L105-281-000 20211605036 Marquee fixed bracket 1
No. Part No. Code No. Name Qty
1
L105-312-000
20611605033 Light bar 2 1
L105-313-000 20611605034 Light bar 3 1
L105-106-000 20101000112 Cross recessed pan head screw 7
2
L105-311-000 20611605032 Light bar 1 1
L105-106-000 20101000112 Cross recessed pan head screw 3
3
L105-314-000 20611605035 Light bar 4 1
L105-315-000 20611605036 Light bar 5 1
L105-106-000 20101000112 Cross recessed pan head screw 7
4 L105-284-000 20211605038 Marquee cover 1
5
L105-124-000 20101040134 Cross recessed pan head screw 12
L105-143-000 20113000055 C flat washer 12
6
L105-279-000
20611605024 Swivel nut 8
L105-136-000 20102040011 Hexagon flange nut 6
L105-123-000 20101040108 Cross recessed pan head screw 6
