Pirate’s Hook 4p Manual
21

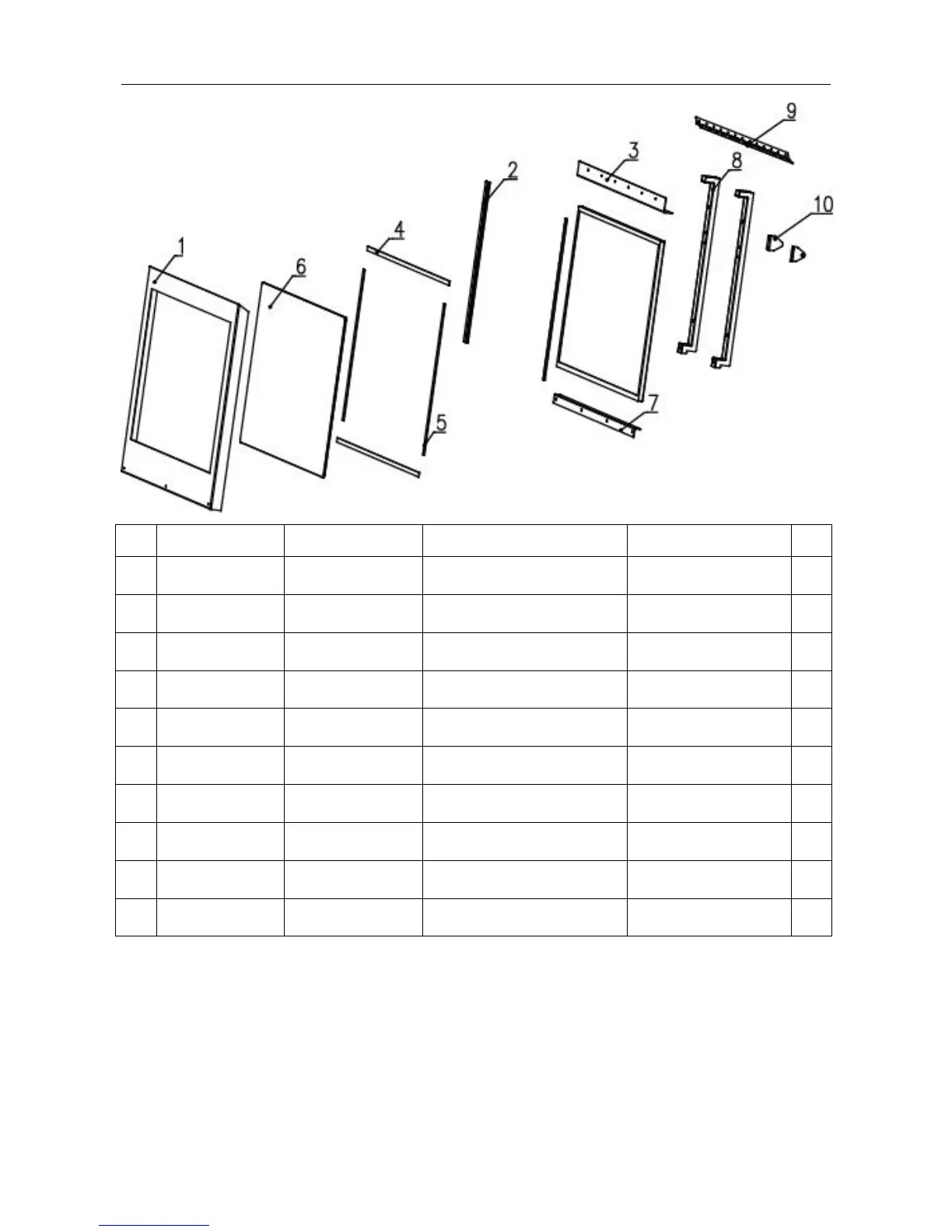

9.4 Monitor Assembly
No.
Part No. Draw No. Name
Material
Qty
1 P113-134-000
20241122S030
Monitor front plate
Q235 δ1.5 blue
1
2 P113-135-000
20241122S031
Monitor side fixed plate Metal plate δ1.2
2
3 P113-136-000
20241122S032
Monitor upper fixed plate
Metal plateδ1.5
1
4 P113-608-000
20641122S008
Monitor pad 1 Foam δ2 black
2
5 P113-609-000
20641122S009
Monitor pad 2 Foam δ2 black
2
6 P113-401-000
20641122S010
Monitor glass Tempered glass δ6
1
7 P113-137-000
20241122S033
Monitor lower fixed plate
Metal plate δ1.5
1
8 P113-138-000
20241122S034
Monitor main fixed board
Metal plate δ2 2
9 P113-139-000
20241122S035
Monitor hinge Stainless steel δ1.2
1
10
P113-108-000
20241122S003
Air spring fixed plate 1 Metal plateδ2.0
2
