Pirate’s Hook 4p Manual
22

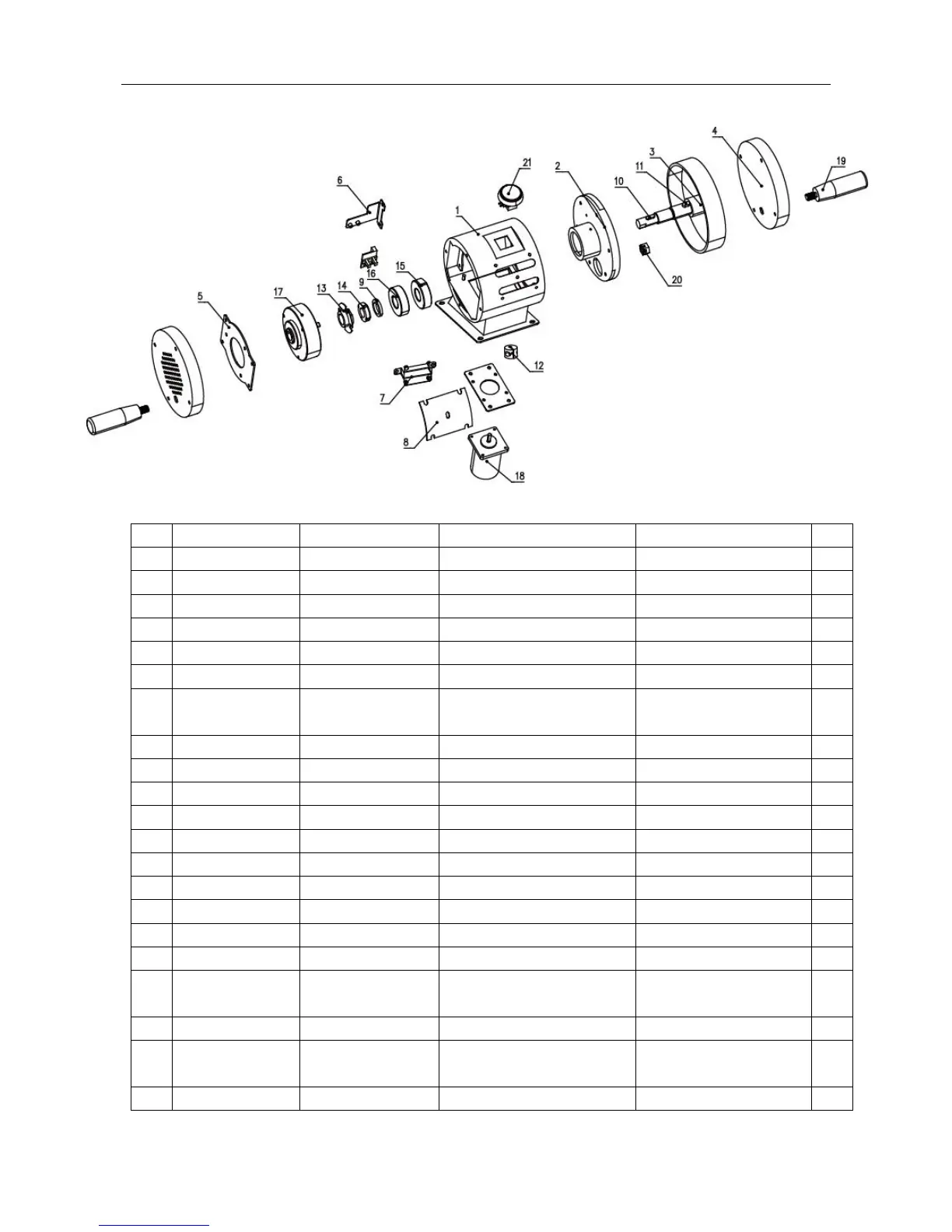

9.1.5 Fishing mechanism assembly
No.
Part No. Draw No. Name Material Qty
1 P113-140-000
20241122S036
Fishing mech. frame Q235 δ1.5 yellow 2
2 P113-143-000
20241122S039
Bearing seat Aluminum 2
3 P113-144-000
20241122S040
Wheel 1 Stainless steel(201) 1
4 P113-148-000
20241122S044
R cover Q235 δ2.0 blue 1
5 P113-152-000
20241122S048
Clutch seat Metal plate δ2.0 2
6 P113-153-000
20241122S049
Infrared socket Metal plate δ1.2 2
7 P113-154-000
20241122S050
Light bar mounted
plate
Metal plate δ1.2
4
8 P113-610-000
20641122S011
Shaded plastic acrylic δ2.0 white 4
9 P113-160-000
20241122016 washer Q235 2
10
P113-161-000
20241122034 Key 1 Q235 2
11
P113-162-000
20241122035 Key 2 Q235 2
12
P113-163-000
20241122037 Eccentric wheel Copper 2
13
P113-164-000
20241122038 Infrared sensor Q235 2
14
P113-178-000
20102008003 Round nut Q235 M18×1.5 2
15
P113-403-000
20106150003 One-way bearing CSK20 2
16
P113-402-000
20106000127 Ball bearing 6204-2Z 2
17
P113-406-000
23413000002 Magnetic powder brake
CZK-0.3 3N 2
18
P113-405-000
23404000030 DC motor
45ZY12-15 DC12V
15W 3000RPM 2
19
P113-159-000
20641122005 Grabbed handle 2
20
P113-179-000
20102030001 Hexagon locknut
Q235 M10 white
zinc 2
21
P113-404-000
22402000201 Lower-hook button 57-1820-02 white 2
