Pirate’s Hook 4p Manual
26

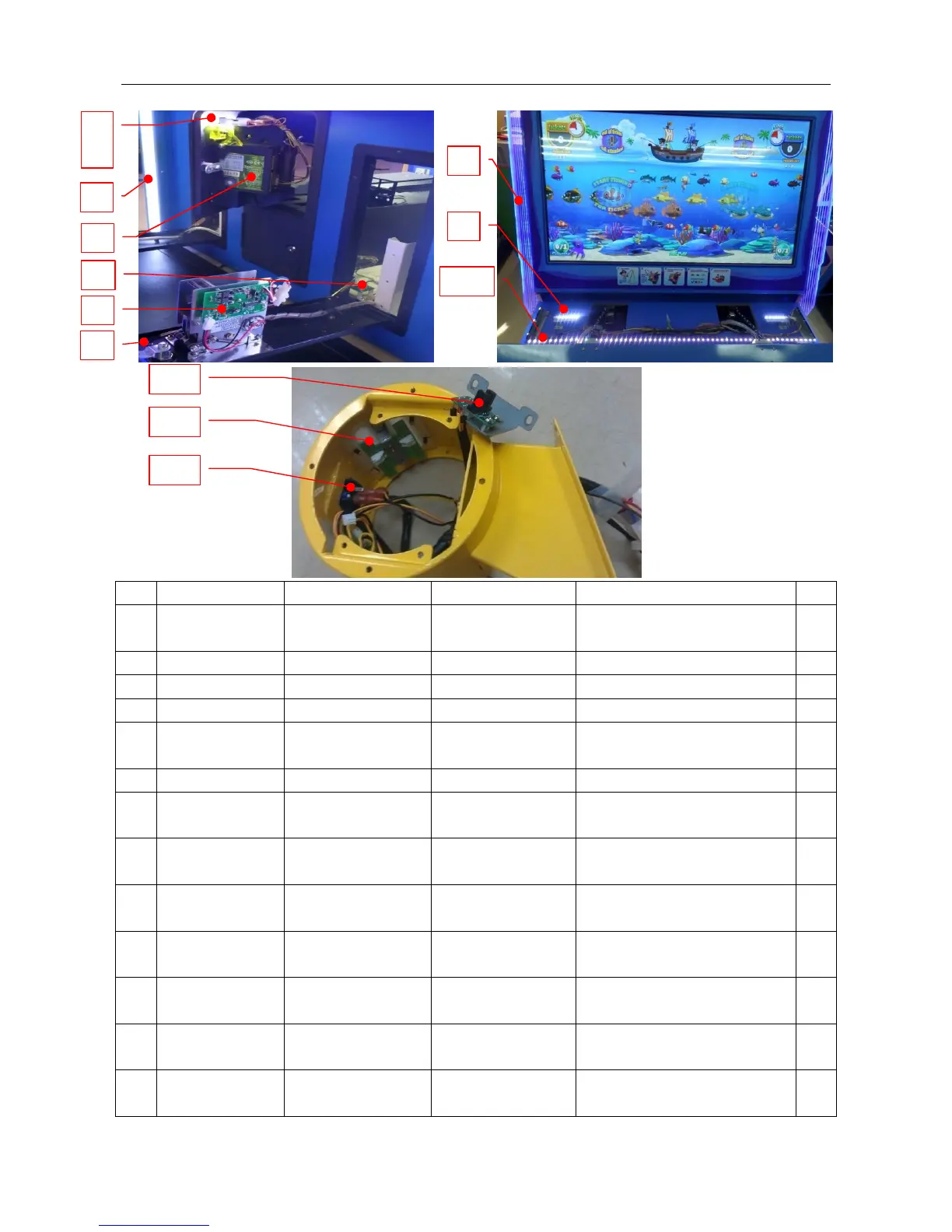

No.
Part No. Draw No. Name Material Qty
1 P113-425-000
22201000028
12V white light
socket
Coin mech indicating light
socket
4
2 P113-426-000
22003000018 LED bulb DC12V white 3LED 4
3 P113-810-000
297441122S004
Side light PCB LED5050RGB-NC 21LED 4
4 P113-422-000
22301000007 Coin mech TW-800 II 4
5 P113-811-000
21712000001
Ticket converted
board
TICK-CH.PCB 4
6 P113-423-000
23100000005 Ticket mech CL-022Q-270 4
7 P113-424-000
22003000075
Coin mech red
light
Ф3 LED 4
8 P113-815-000
22002013004
Monitor side LED
board
DC12V 3528LED 60/m
blue
10
9 P113-809-000
29741122S003
Control panel
LED board
LED48-NC-6 6 white LED 4
10
P113-813-000
22002013002
Control panel
rim LED board
DC12V 5050LED tri-color
LED
2.5
11
P113-806-000
29710701003 Sensor board
SenSoR
MOC70T4.PCBV1.1
11
12
P113-808-000
29741122S001
Fishing mech
LED board
XHD2-LED01PCB(V1.0) 8
13
P113-435-000
22402000201
Lower- hook
button
57-1820-02white 4
1
2
4
7
5
6
3
11
1
2
1
3
10
8
9
