Pirate’s Hook Manual
19

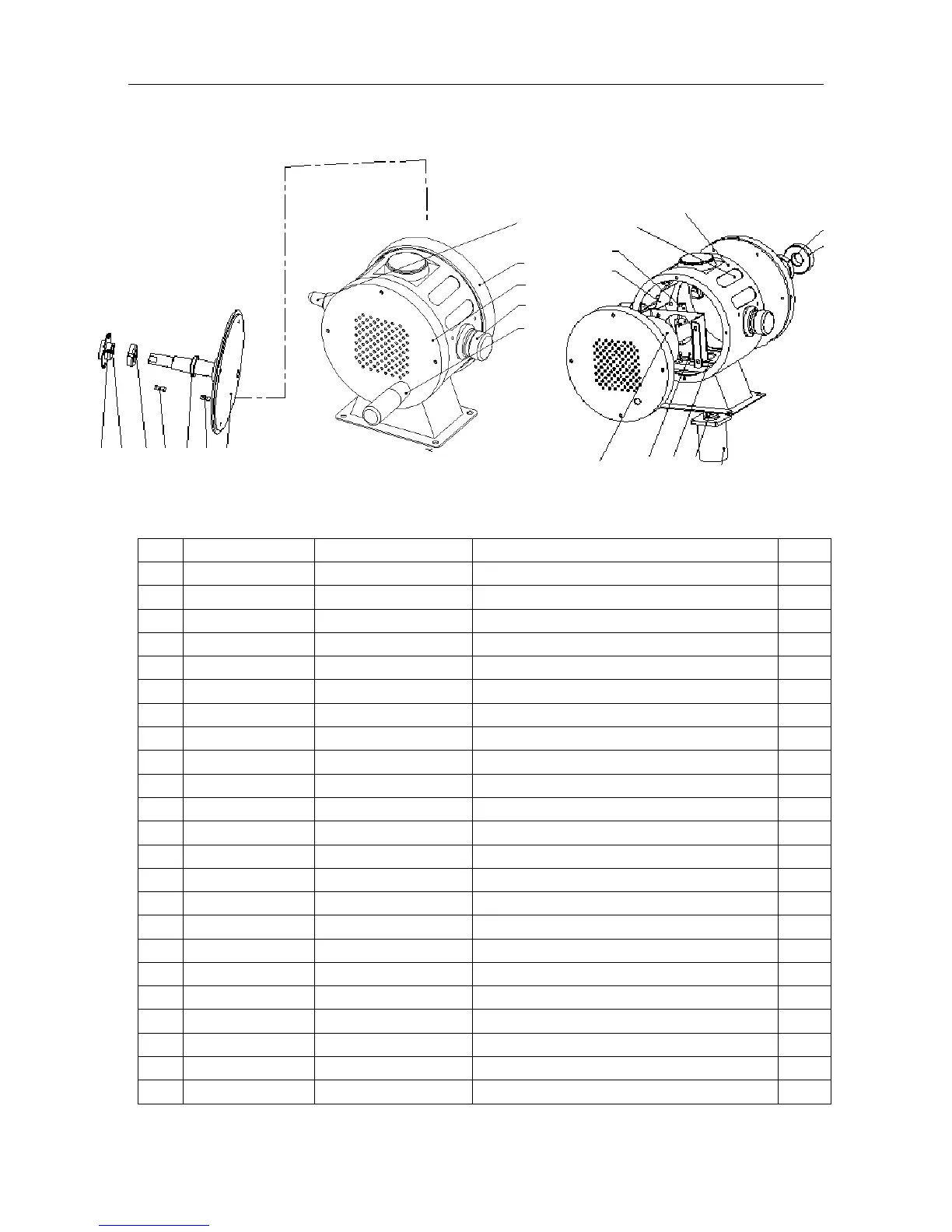

9.3 Right Handle Mechanism
No. Part No. Draw No. Name Qty
1 X109-229-000
2.99.4.11.22.007
Fishing mechanism outer bracket 2 1
2 X109-606-000
206.4.11.22.006 Translucent piece 2
3 X109-216-000
202.4.11.22.016 Washer 1
4 X109-217-000
202.4.11.22.031 Clutch support base 1
5 X109-218-000
202.4.11.22.032 Sensor support base 1
6 X109-219-000
202.4.11.22.033 Turntable 1
7 X109-220-000
202.4.11.22.034
Key 1 1
8 X109-221-000
202.4.11.22.035 Key 2 1
9 X109-222-000
202.4.11.22.036 Light strip fix board 2
10 X109-223-000
202.4.11.22.037 Eccentric 1
11 X109-224-000
202.4.11.22.038 Sensor block 1
12 X109-225-000
202.4.11.22.039 Motor fix board 1
13 X109-230-000
202.4.11.22.044 Bracket R cover 2 1
14 X109-231-000
202.4.11.22.045 Bracket L cover 2 1
15 X109-609-000
206.4.11.22.009 Fishing mechanism decorate 3 1
16 X109-610-000
206.4.11.22.010 Fishing mechanism decorate 4 1
17 X109-408-000
2.01.06.15.0003 One-way bearing 1
18 X109-409-000
2.01.06.000127 Deep groove ball bearing 1
19 X109-410-000
2.34.13.000002 Hollow shaft magnetic powder brake 1
20 X109-411-000
2.34.04.000030 DC motor 1
21 X109-412-000
2.01.02.00.8003 Round nut 1
22 X109-413-000
206.4.11.22.005 Rotating grip handle 2
23 X109-228-000
202.4.11.22.042 Copper pad 1
23 11
21 7 3 8 6
16
13
14
15
22
1
2
5
9
9
19
4
12
10
20
18
17
