Pirate’s Hook Manual
20

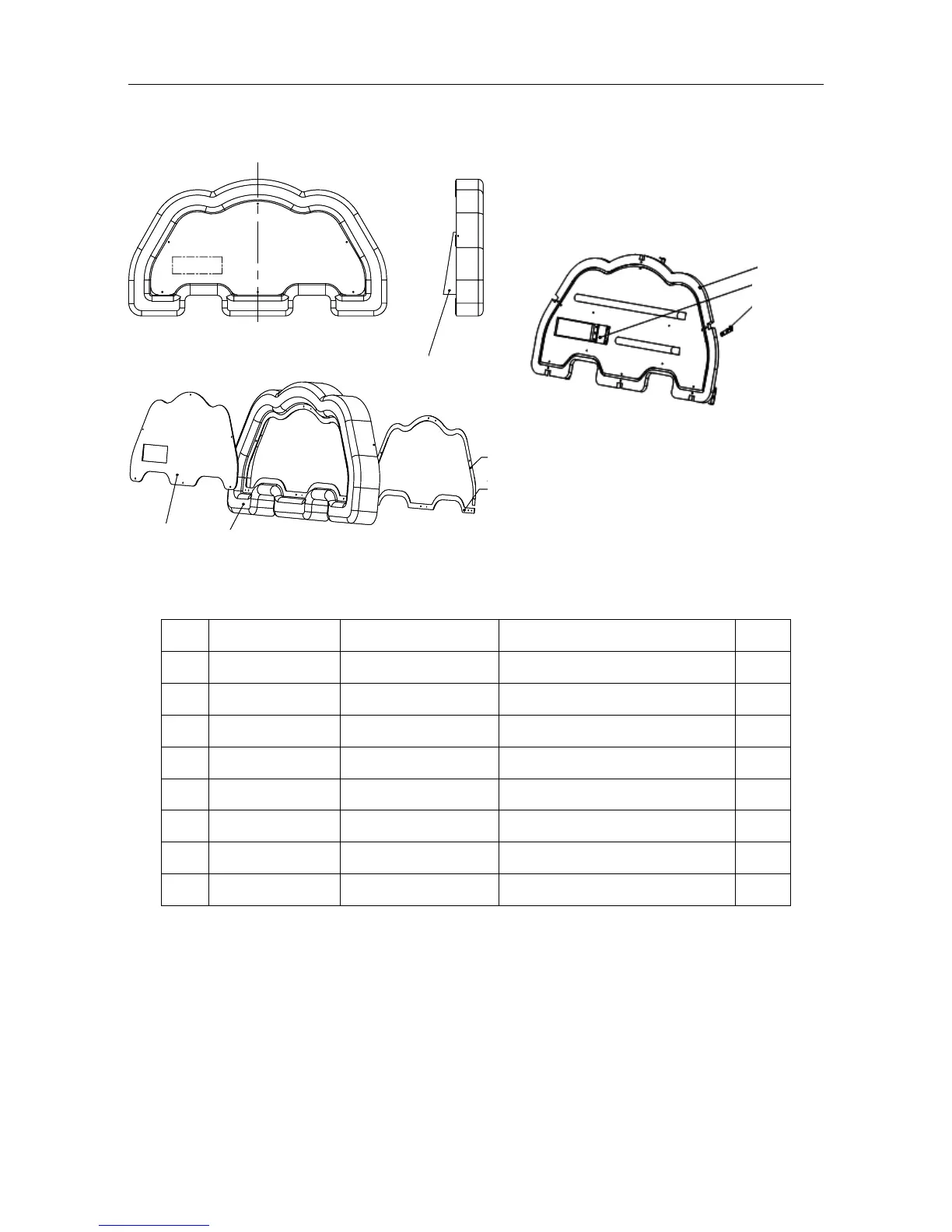

9.4 Marquee Assembly
No. Part No. Draw No. Name Qty
1 X109-503-000 203.4.11.22.005 Marquee fix board 1
2 X109-232-000 202.4.11.22.018 Digital support base 2
3 X109-611-000 206.4.11.22.011 Marquee vacuum form 1
4 X109-233-000 202.4.11.22.046 Vacuum form fix block 6
5 X109-234-000 202.4.11.22.049 Marquee support base 1
6 X109-235-000 202.4.11.22.050 Marquee decal fix board 1 1
7 X109-236-000 202.4.11.22.051 Marquee decal fix board 2 1
8 X109-702-000 205.4.11.22A.001
Marquee decal 1
5
1
2
3
4
6
7
8
