Univex PM91 User Manual

MOTOR:
INSTALLATION:
8. Place a 1 inch plastic sleeve on the two rear motor mounting studs (the longer studs).
9. Place a 1-1/8 inch plastic sleeve on the two front motor mounting studs.
10. Place a rubber isolator on the two rear motor mounting studs.
11. Install the motor pulley and key on the motor and tighten the two set screws.
12. Connect the motor leads to the motor and replace the access plate on the back of the motor.
13. Place the motor on the studs and over the plastic sleeves and install a rubber isolator on the two rear
mounting studs and a plastic sleeve and spring on the two front studs.
14. Install a washer and nut on the four studs. Tighten the two rear nuts the rubber isolators should be
compressed. Do not over tighten the nuts and destroy the plastic sleeves. Do not tighten the front two
nuts at this time.
15. Install the drive belt per the instructions on page 2.1 Replacing Drive Belt.
Page 4.2

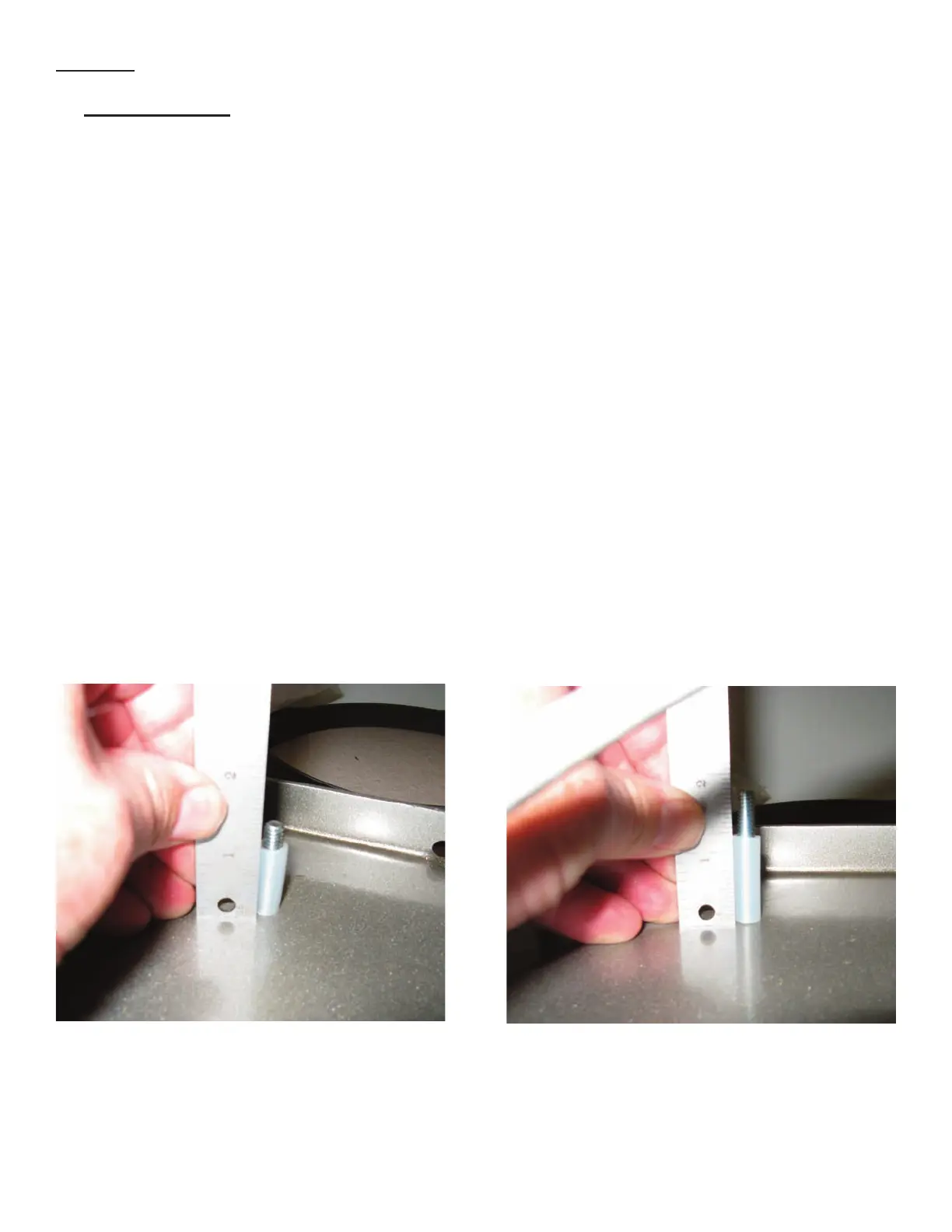

Rear sleeves
Front sleeves
