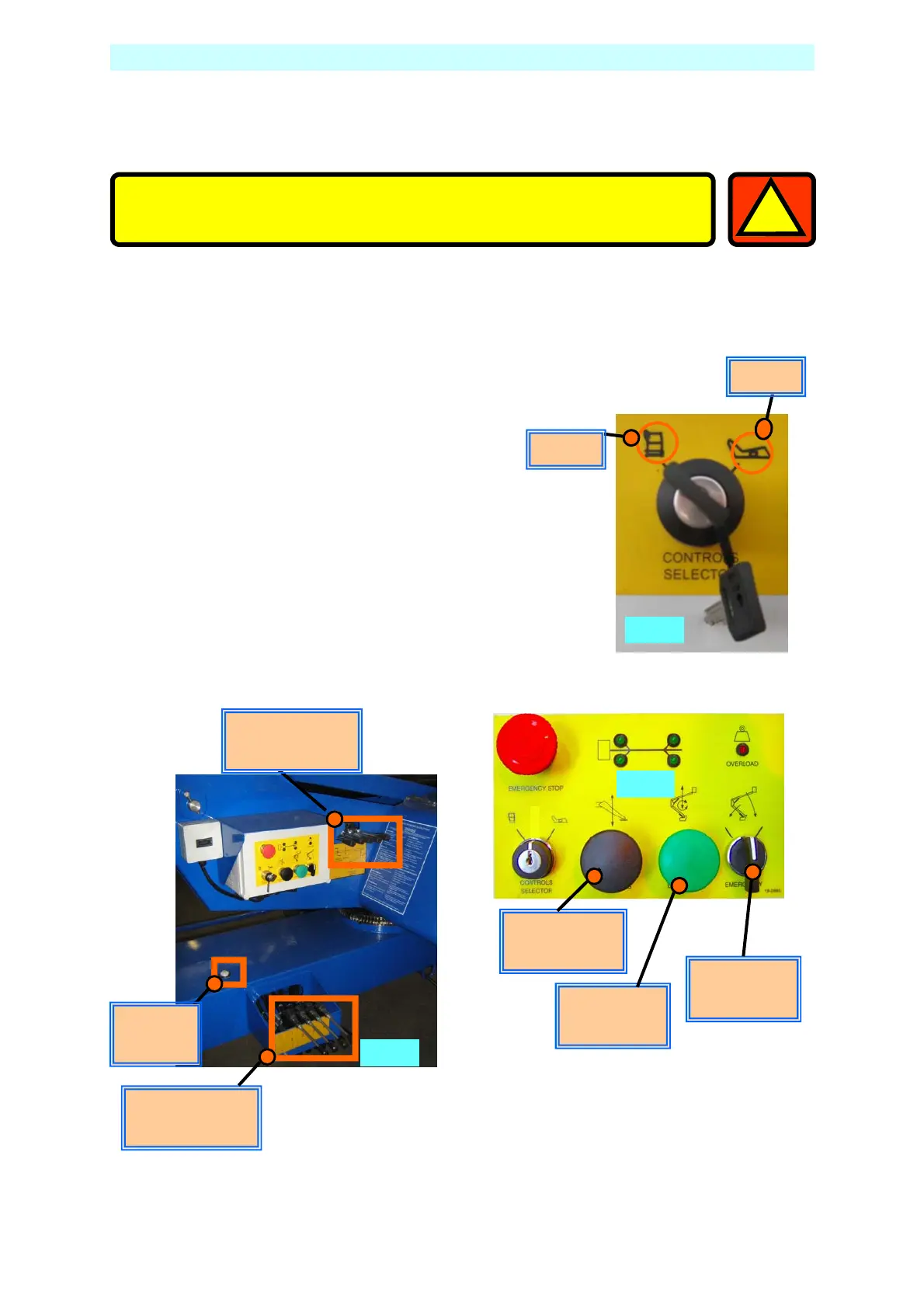

3. With platform key switch set to ’Ground’ (Fig 3)
lower the outriggers by keeping the
‘Outrigger Motor Run’ button (Fig 4)
pushed in, operate the appropriate
‘Outrigger control lever’ (Fig 5), until all
four are 25mm to 50mm from the
ground.
1. Park the unit in an appropriate location at the workplace.
2. Apply the handbrake on the trailer and remove from the towing vehicle.
Motor Run
Booms
Motor Run
Outrigger
Do not attempt to set up the machine on steep slopes, ramps or
soft ground.
1
Emergency
Lower
SETTING UP
Fig. 3
Ground
Basket
Fig. 4
Fig. 5
Control Levers
Outriggers
Level
indicator
Control Levers
Ground
