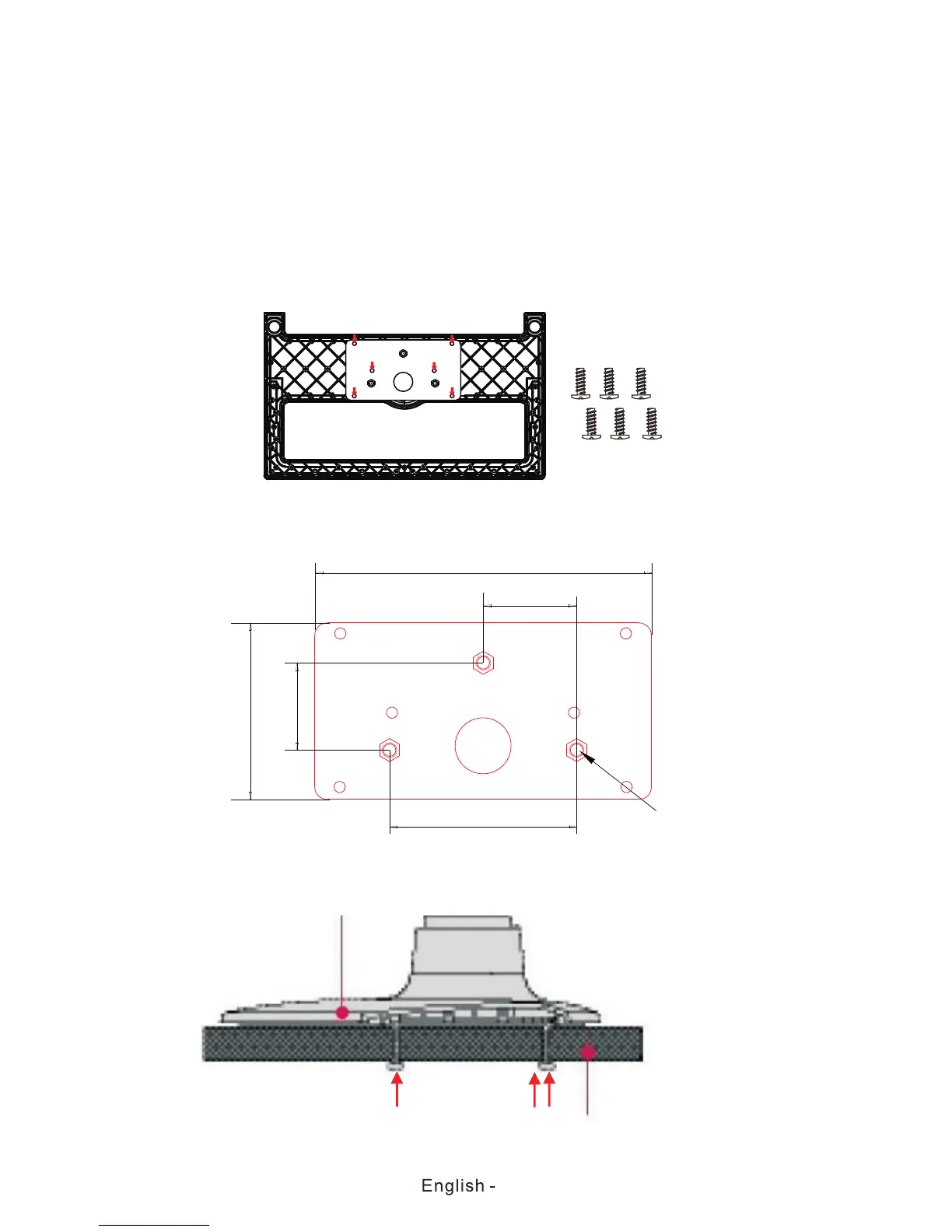

1). Lockdown base plate mounted to bottom of television with 6pcs ø4x10mm screws.
3. Mounting
2).
size printed on the template.
The correct base plate template should have your model number or television
3). Base plate bolts and washers attached to stand through bottom of desk.
Confirm lockdown parts are correct for your specific installation
Important: please confirm that the template specifies your model number or TV
screen size. drilling holes using the improper template will cause damage to your
credenza surface. in addition please confirm that the total thickness of the mounting
surface and buying the right length of the bolts and washers for mounting .
Stand
134.7mm
75mm
70.8mm
35mm
37.5mm
3-M5
Bolt & Washer
Desk
To Next Page
