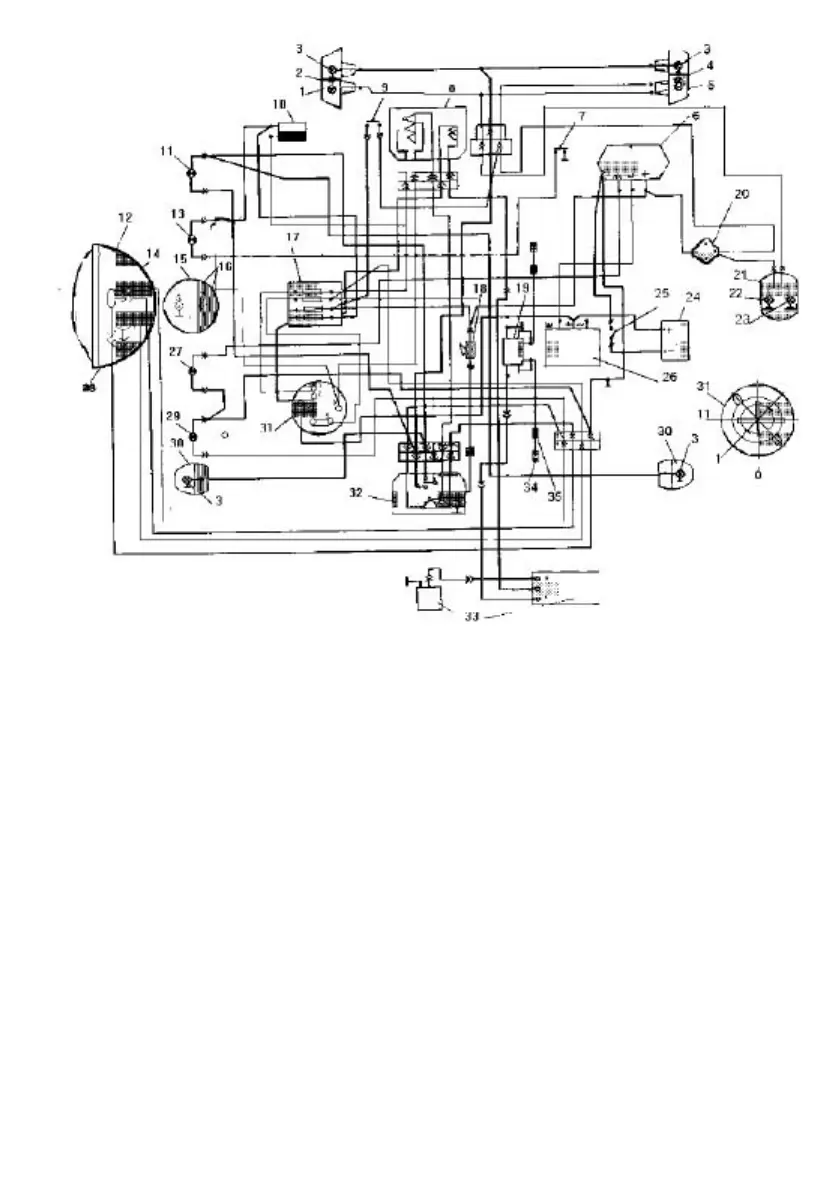

URAL Motorcycles IMZ-8.123 User Manual

1 - Sidecar side
bulb
13 - Neutral gear
ON indicator bulb
24 - Battery
2 - Sidecar front
lamp
14 - High/low
beam headlight
bulb
25 - Master
Battery Switch*
3 - Traffic
indicator bulb
15 - Speedometer 26 - Generator
4 - Sidecar rear
lamp
16 - Speedometer
illumination bulbs
27 - Generator
operation
indicator bulb
5 - Sidecar side
and brake bulb
17 - Fuse plate
28 - Side and
parking bulb in
lamp
6 - Adjustment
relay
18 - Horn
29 - Highbeam
ON indicator bulb
of lamp
7 - Contact
(neutral gear
indicator switch)
19 - Induction coil
30 - Left turn
indicator

URAL Motorcycles IMZ-8.123 Specifications

General

Rear Brake	Drum
Front Tire	3.75-19
Width	1650 mm
Fuel System	Carbureted
Transmission	4-speed
Drive	Shaft
Rear Suspension	Dual shocks
Fuel Capacity	19 L
Sidecar	Included
