URBANGLIDE RIDE-100 User Manual

8

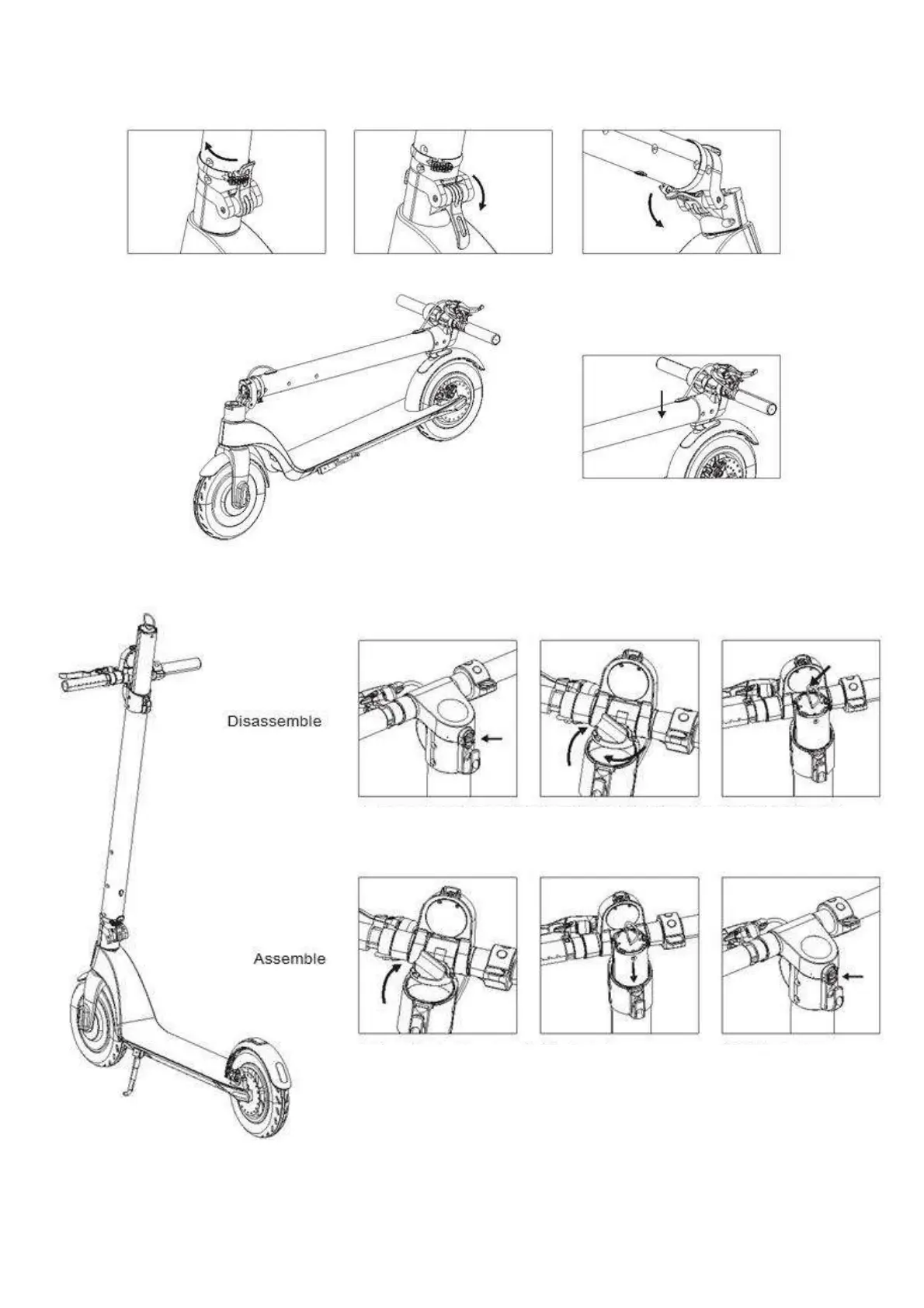

1. Loosen the folder fixing ring
2. Open the folder wrench
3. Open the folder wrench and
lower the pole
4. Align the hook with the hole
of the rear fender and press
down
1. Pull up and press the
dashboard cover lock to
open the cover
2. Unscrew the battery
cover
3. Put the battery straight
up to remove the battery
1. Open the dashboard
cover and battery cover
2. Align the battery
groove with the groove
in the pole and slowly
put the battery inside
(please pay attention to
the groove direction)
3. Tighten the battery
cover and push the
dashboard cover lock
down, complete the
installation

URBANGLIDE RIDE-100 Specifications

General

Motor Power	250W
Max Speed	25 km/h
Max Load	100 kg
Wheel Size	8.5 inches
Category	Electric Scooter
Tire Size	8.5 inches
Charging Time	4-5 hours
Foldable	Yes
Range	30 km
Brake Type	Disc Brake
Weight	14 kg
