ENGLISH•User’s manual
LUBRICATION

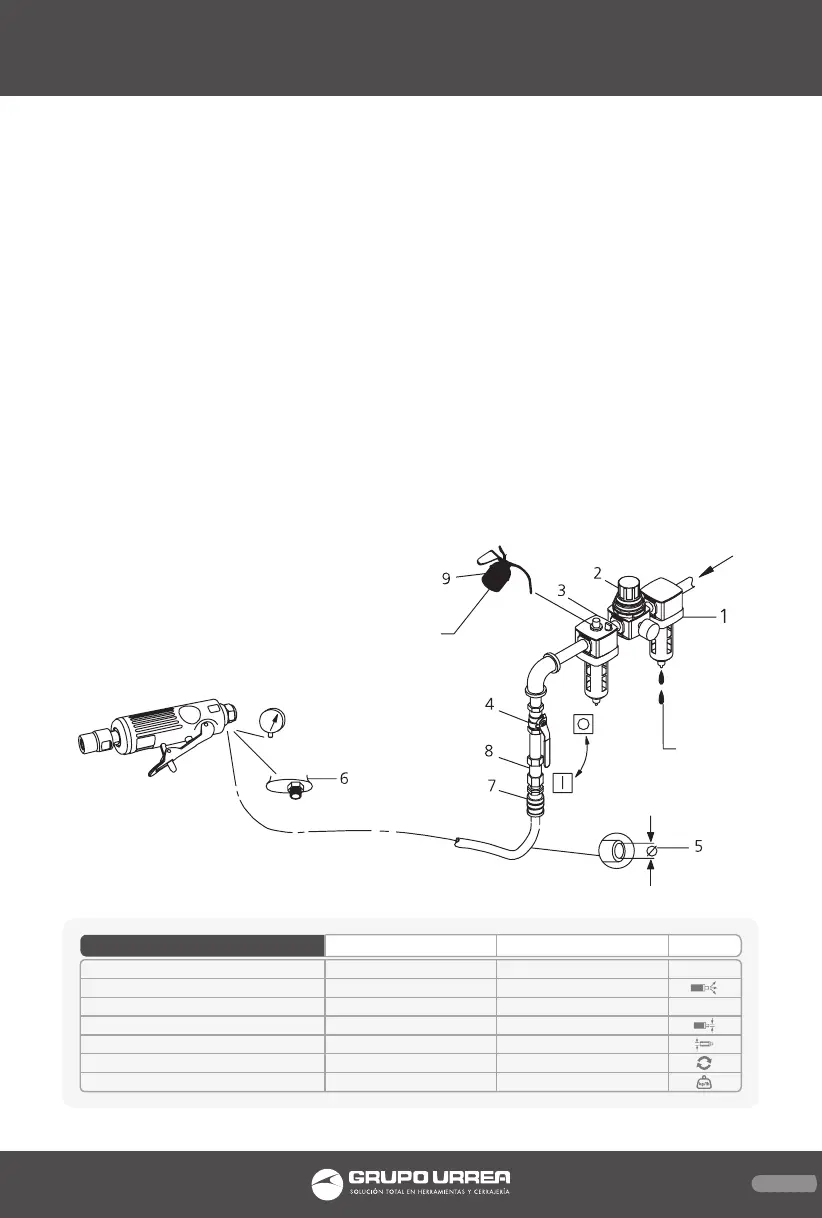

The parts shown in the assembly for proper
operation of your air tools are identified as
follows:
1. Air filter.
2. Regulator.
3. Lubricator.
4. Emergency shut-off valve.
5. Hose diameter.
6. Thread size.
7. Coupling.
8. Safety Air Fuse.
9. Oil.
10. Grease (During assembly).
COLLET CAPACITY
AIR FLOW
RECOMMENDED AIR PRESSURE
AIR INLET
HOSE INTERNAL DIAMETER
NO LOAD SPEED
WEIGHT
24h
48h
90 psi
TECHNICAL DATA
1/4” (6,35 mm)
4 CFM
90 PSI
1/4” NPT
3/8” NPT
25 000 r/min
450 g (1 lb)
1/4” (6,35 mm)
4 CFM
90 PSI
1/4” NPT
3/8” NPT
22 000 r/min
500 g (1,1 lb)
UP876UP860
