8

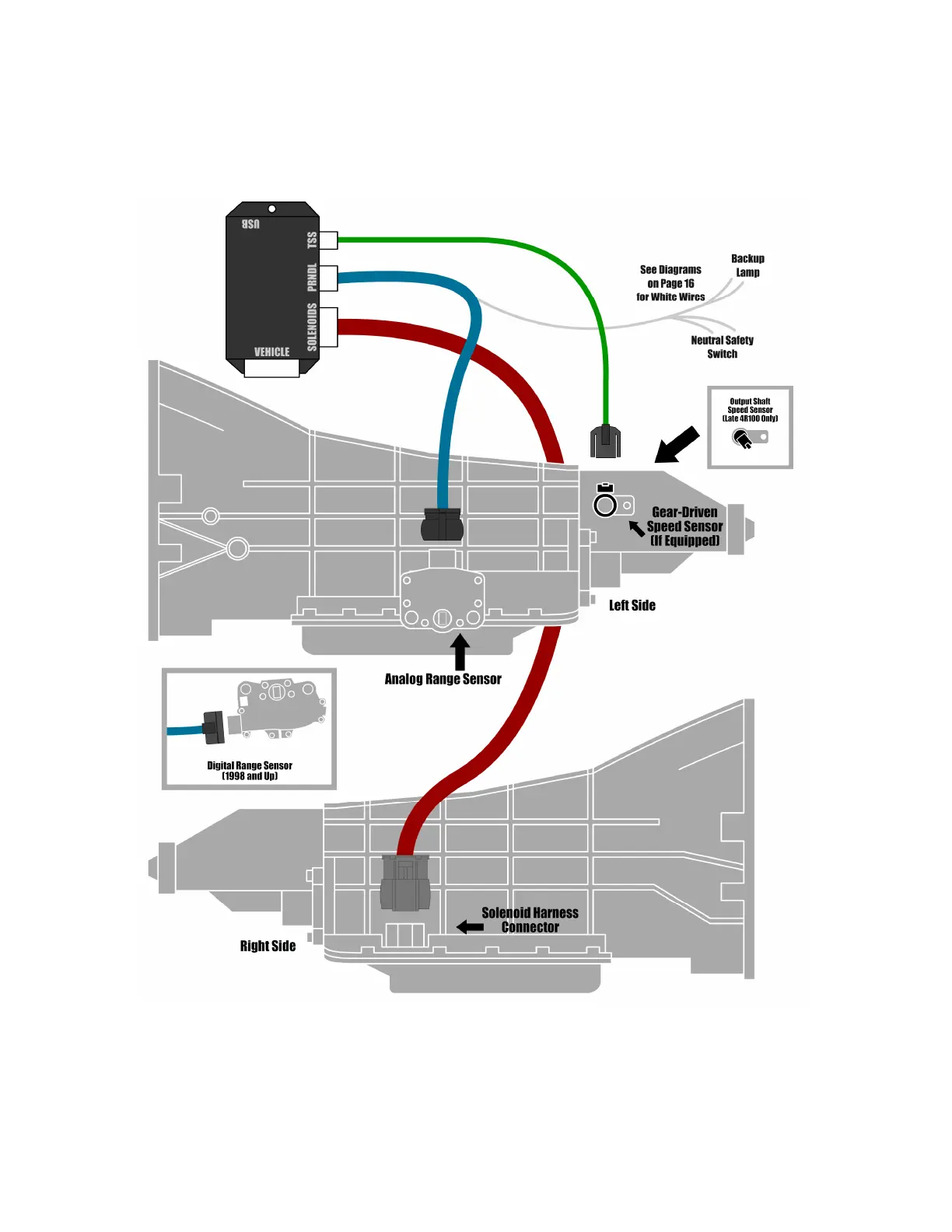

Step 4: Transmission Connectors
Connect the Solenoid, PRNDL, and TSS cables to the transmission.
Additionally, connect the Neutral Safety Switch and the Backup Lamp Switch
(See page 16). An output shaft speed sensor, a VSS, or an electronic speedo
can be used for speed input.
Step 5: Optional Features
Connect any extra features you wish to use. See the "Optional Features"
section for details.
