USand BT700 - Parts

11
BT700 MODEL
U-SAND FLOOR SANDER
BT700 MODEL
PARTS LIST

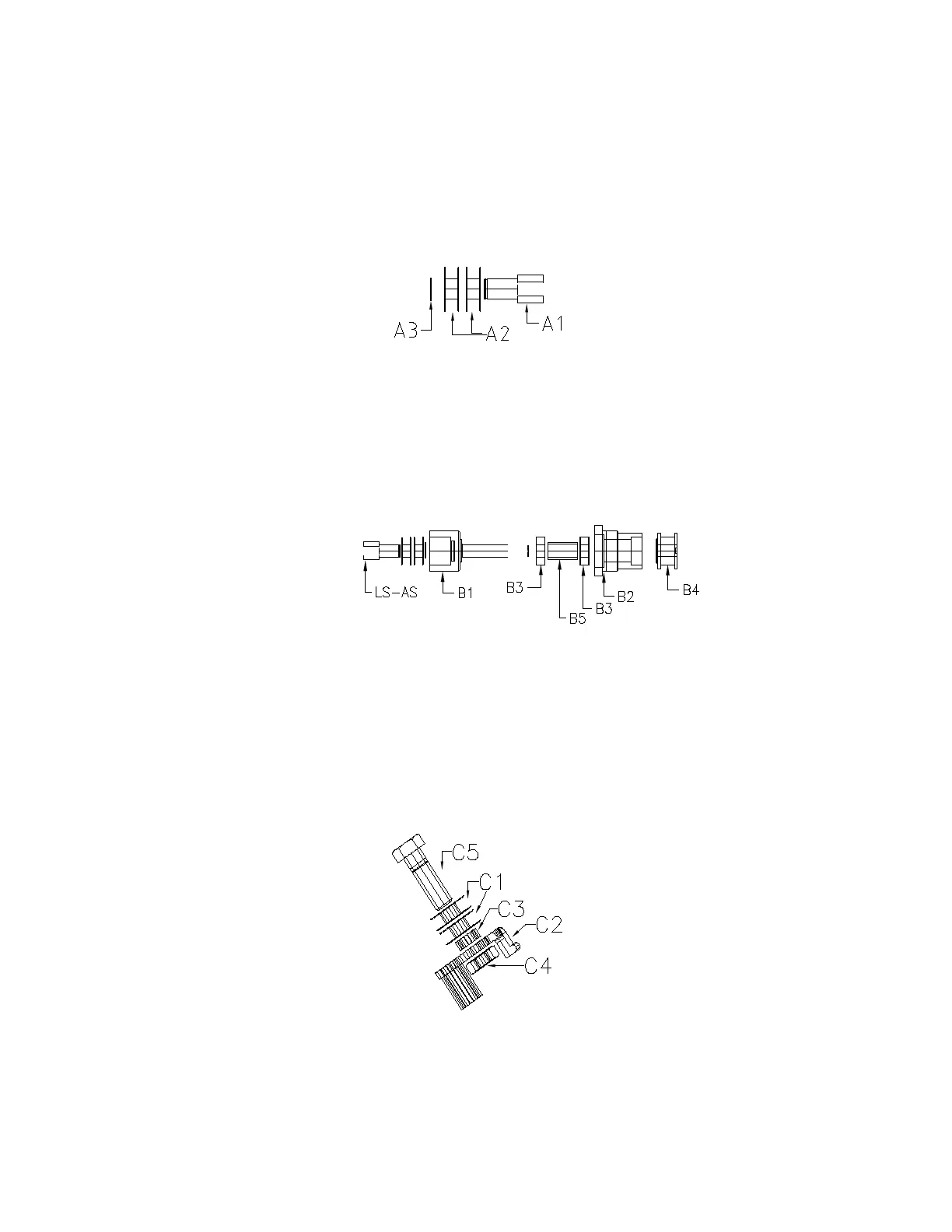

LS-AS LOWER SHAFT ASSEMBLY
A1 Lower Shaft (US104-146) (1)
A2 Bearings (HW-BRG) (2)
A3 Snap Ring (HW-ESR) (1)
SP-AS-7 SPINDLE ASSEMBLY
LS-AS (1)
B1 Main Shaft (US103-146-7) (1)
B2 Spindle Housing (US101-146-7) (1)
B3 Bearings (HW-BRG) (2)
B4 Spindle Pulley (US106-146-7) (1)
B5 Upper Shaft Bearing Spacer (us105-146)(1)
B6 Bearing (Bearing-7) (1)
BT-AS BELT TENSION ASSEMBLY
C1 Bearing (HW-BRG) (2)
C2 Belt Tensioner (SK-020605-01) (1)
C3 Belt Tension Sub(US-148) (1)
C4 HW-HCS5/8
