- 8 -

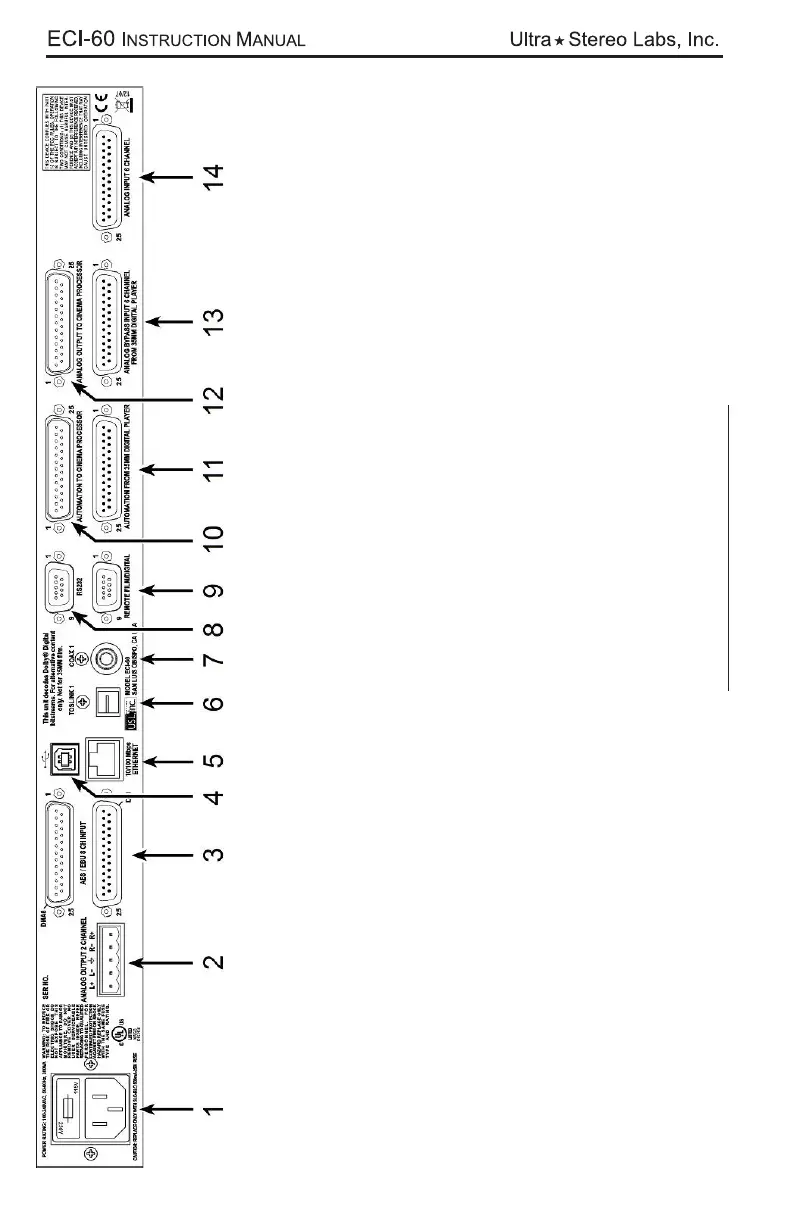

Power entry Module – Accepts IEC type of line cord from power 100-240VAC source. Also contains a 300mA Slo-
Blo 5x20mm fuse.
Analog 2 Channel Output – Balanced analog output of AES Channels 7 and 8. Output level nominal 300mV, 600V
Digital Input – 8 channels of AES balanced line input. Channels 1-6 are routed through the unit to the Analog Out-
put (item #11). Both DCI and DMA8 connector formats are supported. Channels 7 and 8 are routed to Analog 2
Channel Output (item #2).
USB Port – For communication with the user interface. *
Ethernet Port – For communication with the User Interface. *
Toslink Port – Optical Fiber input for SPDIF (PCM) or AC3 signals.
Coax 1 Port – RCA type Connector for SPDIF (PCM) or AC3 signals.
RS-232 Port – For communication with the User Interface.*
Remote Start/Stop – A manual control port for selecting Film or Digital Mode.
Cinema Processor Automation Port – A bi-directional port for receiving and sending automation pulses between the
Cinema Processor and the ECI.
Digital Player Automation Port – A bi-directional port for receiving and sending automation pulses between the Ex-
ternal Digital Player and the ECI.
Analog Output – Sends balanced line audio outputs to the Cinema Processor.
Analog Bypass Input – Receives balanced line inputs from the external Digital Player.
Analog Input 2 Channel - Receives balanced line signals for the 2 Channel Analog Inputs;
Analog Input 6 Channel Receives balanced line signals for the 6 channel Analog Inputs.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
* Either connector may be used to connect. Only one can be active at a time.
