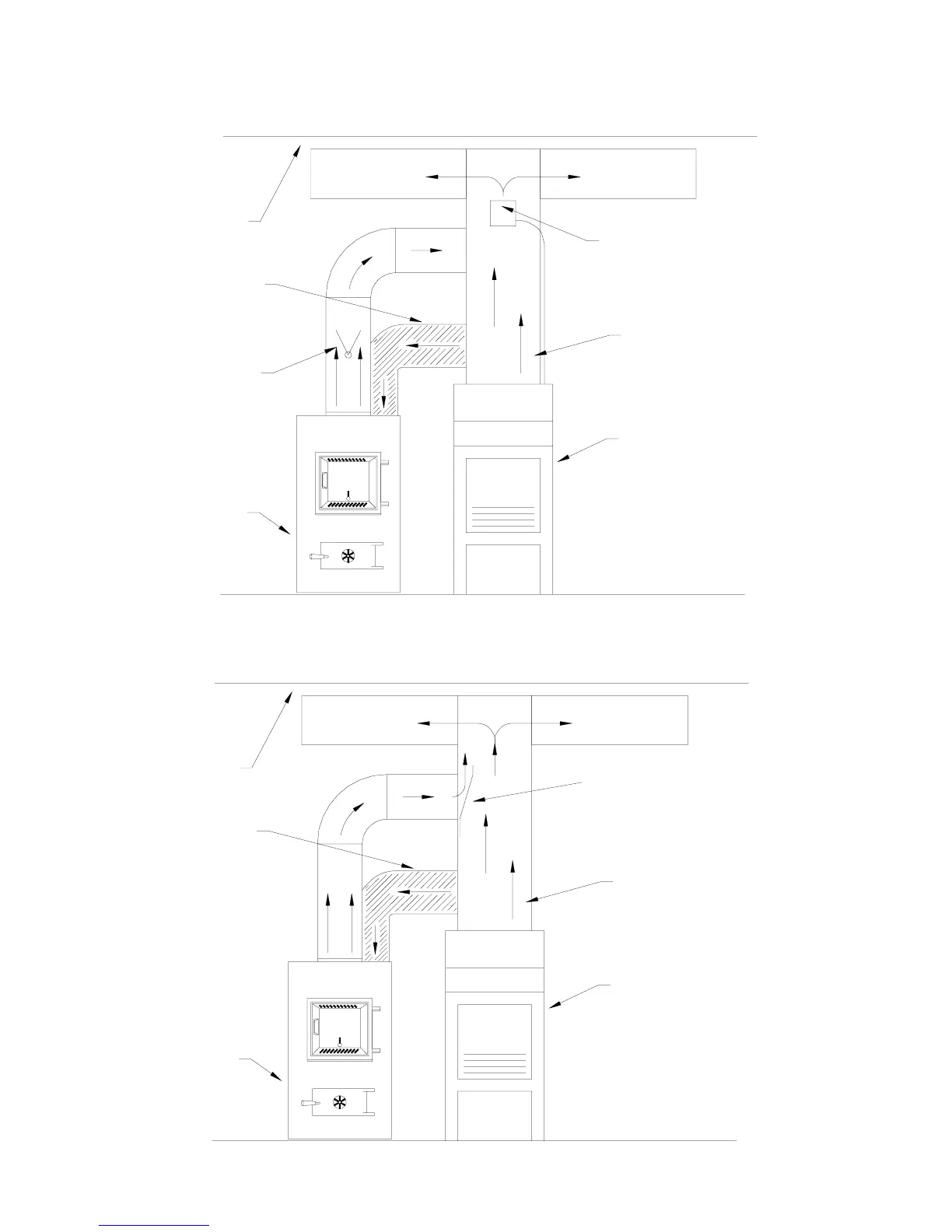

USSC 1537M - Installation Diagrams D & E (U.S. Only)

23
COLD AIR
RETURN
2" MINIMUIM
CLEARANCE
SOLID FUEL
FURNACE
DUCT
WORK
BAFFLE
FURNACE PLENUM
EXISTING FURNACE
EXISTING FURNACE
FURNACE PLENUM
CLEARANCE
2" MINIMUIM
WORK
DUCT
RETURN
COLD AIR
FURNACE
SOLID FUEL
11 PCS
(OPTIONAL PLENUM FAN
CONTROL LOCATION)
ANTI-BACKDRAFT
FLAPPER
INSTALLATION - D
(U.S. ONLY)
INSTALLATION - E
(U.S. ONLY)
