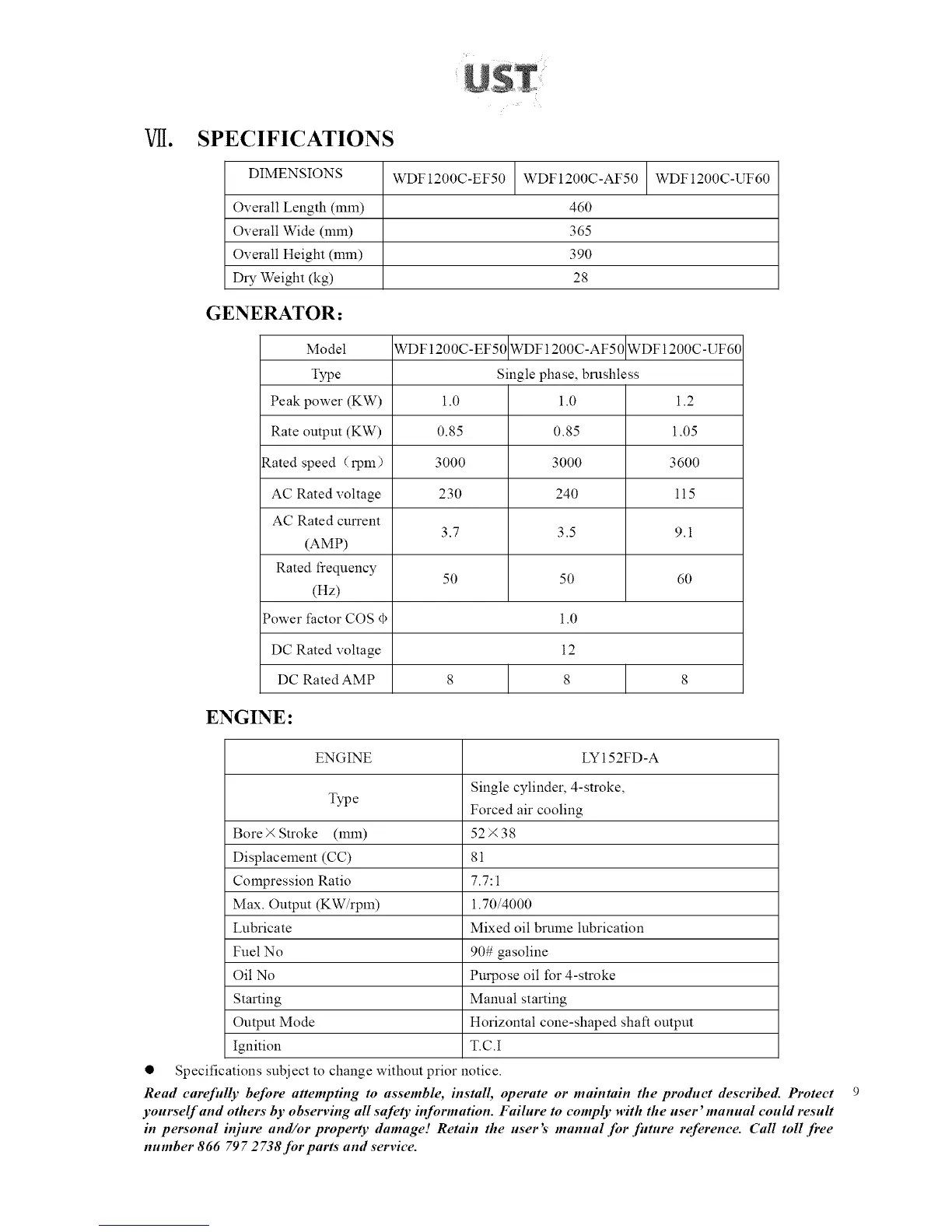

VII. SPECIFICATIONS
DIMENSIONS WDF1200C-EF50 WDF1200C-AF50 WDF1200C-UF60
Overall Length (iron) 460
Overall Wide (iron) 365
Overall Height (iron) 390
Dry Weight (kg) 28
GENERATOR:
Model WDF1200C-EF50 WDF 1200C-AF50 WDF1200C-UF60
Type Single phase, brushless
Peak power (KW) 1.0 1.0 1.2
Rate output (KW) 0.85 0.85 1.05
Rated speed (l_ln) 3000 3000 3600
AC Rated voltage 230 240 1t5
AC Rated current
3.7 3.5 9.1
(aMP)
Rated frequency
50 50 60
(Hz)
Power factor COS 4_ 1.0
DC Rated voltage 12
DC Rated AMP 8 8 8
ENGINE:
ENGINE LY152FD-A
Single cylinder, 4-stroke,
Type
Forced air cooling
Bore X Stroke (iron) 52 X 38
Displacement (CC) 81
Compression Ratio 7.7:1
Max. Outpm (KW/rpm) 1.70/4000
Lubricate Mixed oil brume lubrication
Fuel No 90# gasoline
Oil No Purpose oil for 4-stroke
Starting Manual starting
Output Mode Horizontal cone-shaped shaft outpm
Ignition T.C .I
• Specifications subject to change withom prior notice.
Read carefully before attempting to assemble, install, operate or maintain the product described. Protect
yourself and others by observing all safety inJbrmation. Failure to comply with the user' manual could result
in personal injure and/or property damage! Retain the user's" manual for future reference. Call toll free
number 866 797 2 738 for parts and service.
