ASSEMBLY INSTRUCTIONS

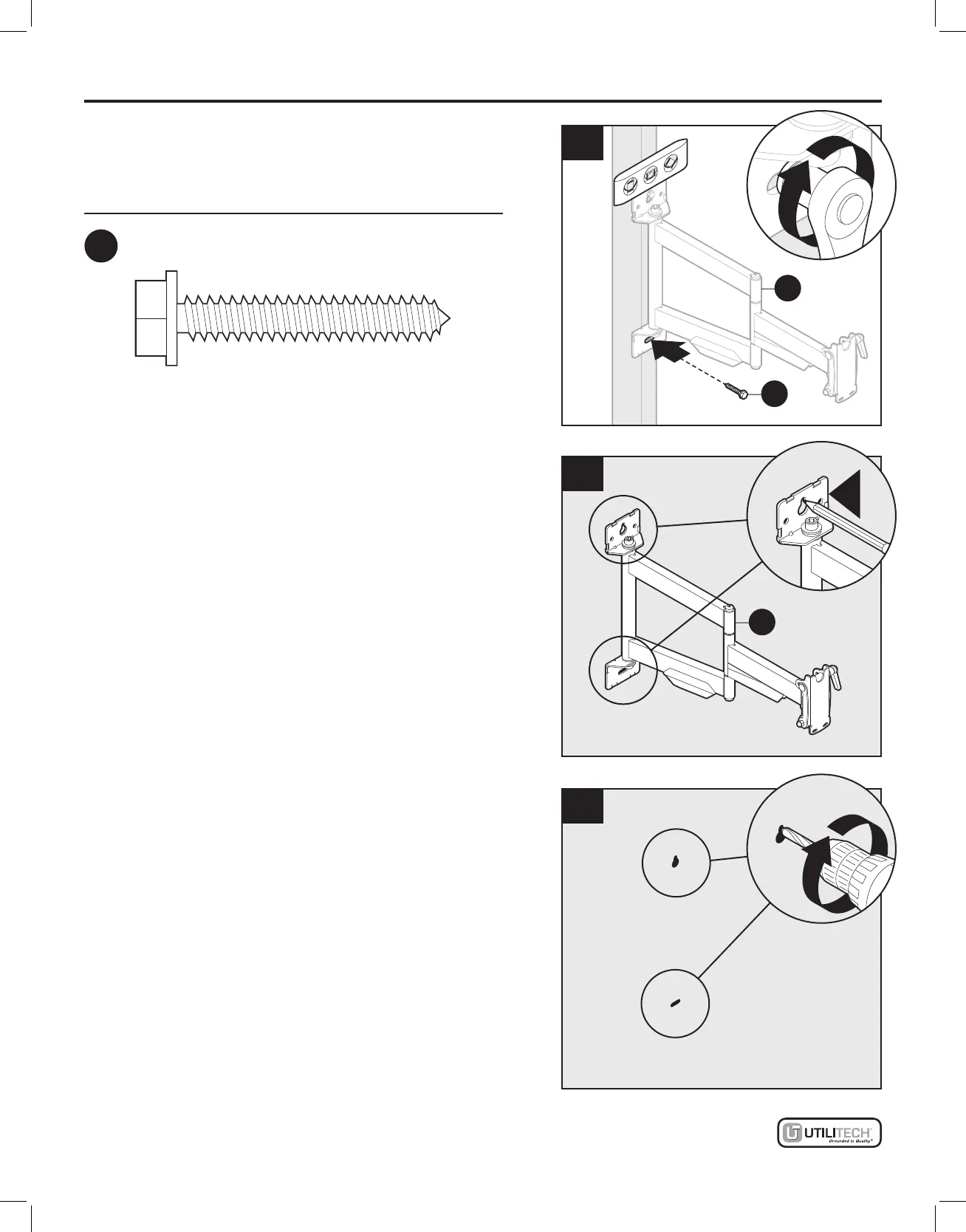

11. Make sure mounting arm (A) is level, then secure
bottom of mounting arm (A) using 8 mm lag bolt (II).
1
2
11
A
II
Hardware Used
II
x 1
8 mm Lag bolt
M4 x 12
Screw
Qty. 4
AA
M5 x 12
Screw
Qty. 4
BB
M6 x 15
Screw
Qty. 4
CC
M8 x 15
Screw
Qty. 4
8 mm Lag bolt
Qty. 2
Anchor
Qty. 2
DD
M4 x 30
Screw
Qty. 4
EE
M5 x 30
Screw
Qty. 4
FF
M6 x 30
Screw
Qty. 4
GG
M8 x 30
Screw
Qty. 4
HH
Square
washer
Qty. 4
KK
5 mm
Spacer
Qty. 4
Phillips
screw
Qty. 8
Mounting arm screw
(preassembled to
Mounting arm (A))
Qty. 2
LL
OO PP
10 mm
Spacer
Qty. 4
MM
Steel
washer
Qty. 8
NN
II
JJ
Concrete Installation
12. Use mounting arm (A) to mark two mounting hole
locations.
13. Drill two 3/8 in. pilot holes 2-3/4 in. (70 mm) deep at
the marked locations for the mounting holes.
1
12
A
13
