V-Sol V2802W User Manual

G/EPON 1GE+1FE+WiFi+CATV ONU Introduction V1.1
2 Access the world
1.3 Application Chart

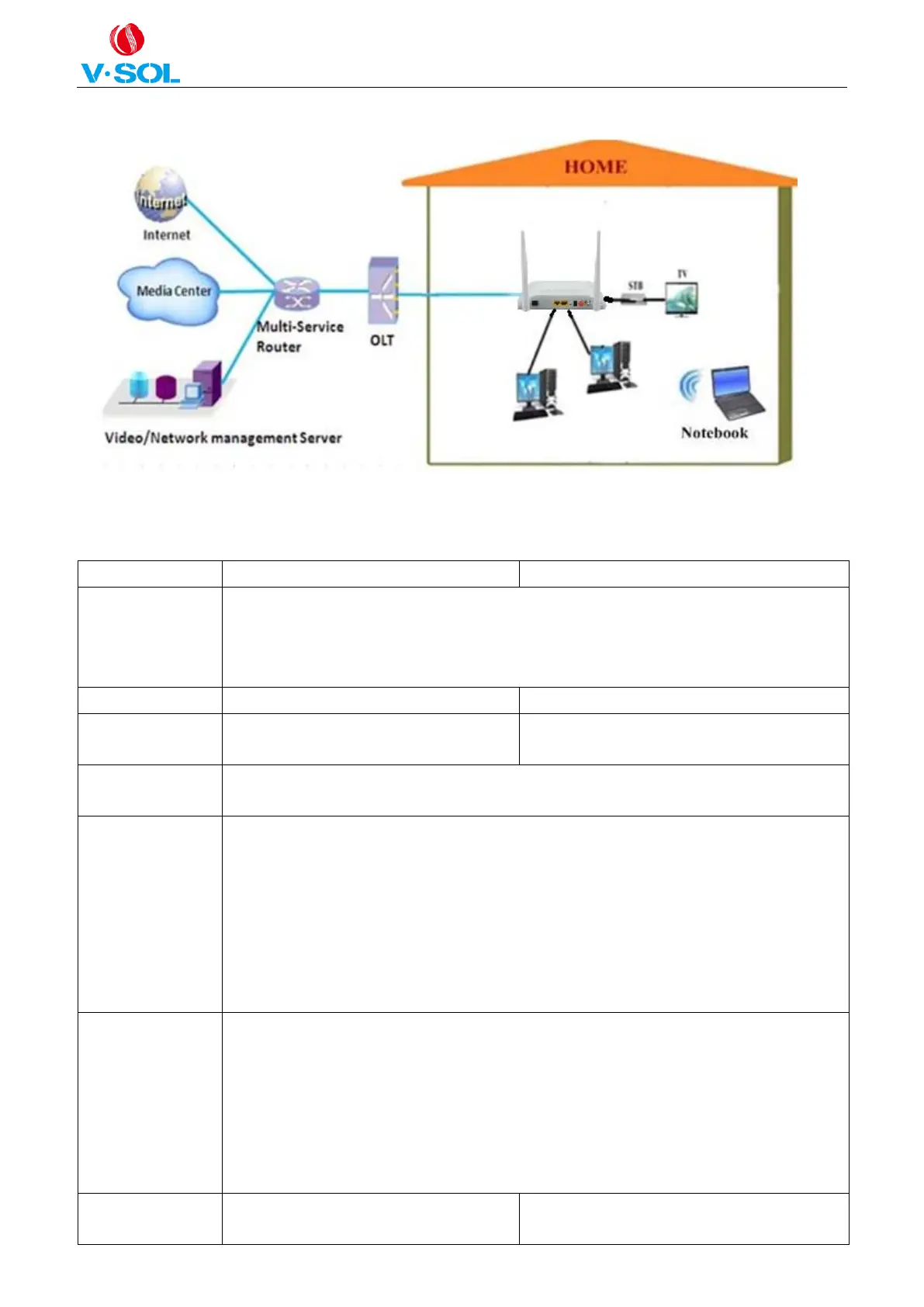

Figure 3 Application Chart
1.4 Technical parameters
Technical item
1GE+1FE+WiFi
1GE+1FE+WiFi+CATV
PON interface
1 G/EPON port(EPON PX20+ and GPON Class B+)
Receiving sensitivity: ≤-28dBm, Saturability: -8dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20KM
Wavelength
Tx1310nm,Rx 1490nm
Tx1310nm,Rx 1490nm and 1550nm
Optical interface
SC/UPC connector
SC/APC connector(signal fiber with
WDM)
LAN interface
1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet
interfaces. Full/Half, RJ45 connector
WiFi interface
Compliant with IEEE802.11b/g/n
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps
2T2R,2 external antenna 5dBi
Support: multiple SSID
Channel:13
Modulation type: DSSS、CCK and OFDM
Encoding scheme: BPSK、QPSK、16QAM and 64QAM
CATV interface
RF, optical power : +2~-18dBm
Optical reflection loss: ≥45dB
Optical receiving wavelength: 1550±10nm
RF frequency range: 47~1000MHz, RF output impedance: 75Ω
RF output level: ≥ 82dBuV（-7dBm optical input）
AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm
MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
LED
6, For Status of POWER、LOS、
PON、GE、FE、WiFi
7, For Status of POWER、LOS、PON、
GE、FE、WiFi、CATV
EPON/GPON OLT

V-Sol V2802W Specifications

General

Brand	V-Sol
Model	V2802W
Category	Network Router
Language	English
