ITALIANO
7
I
NSTALLAZIONE DELLA MOLLA

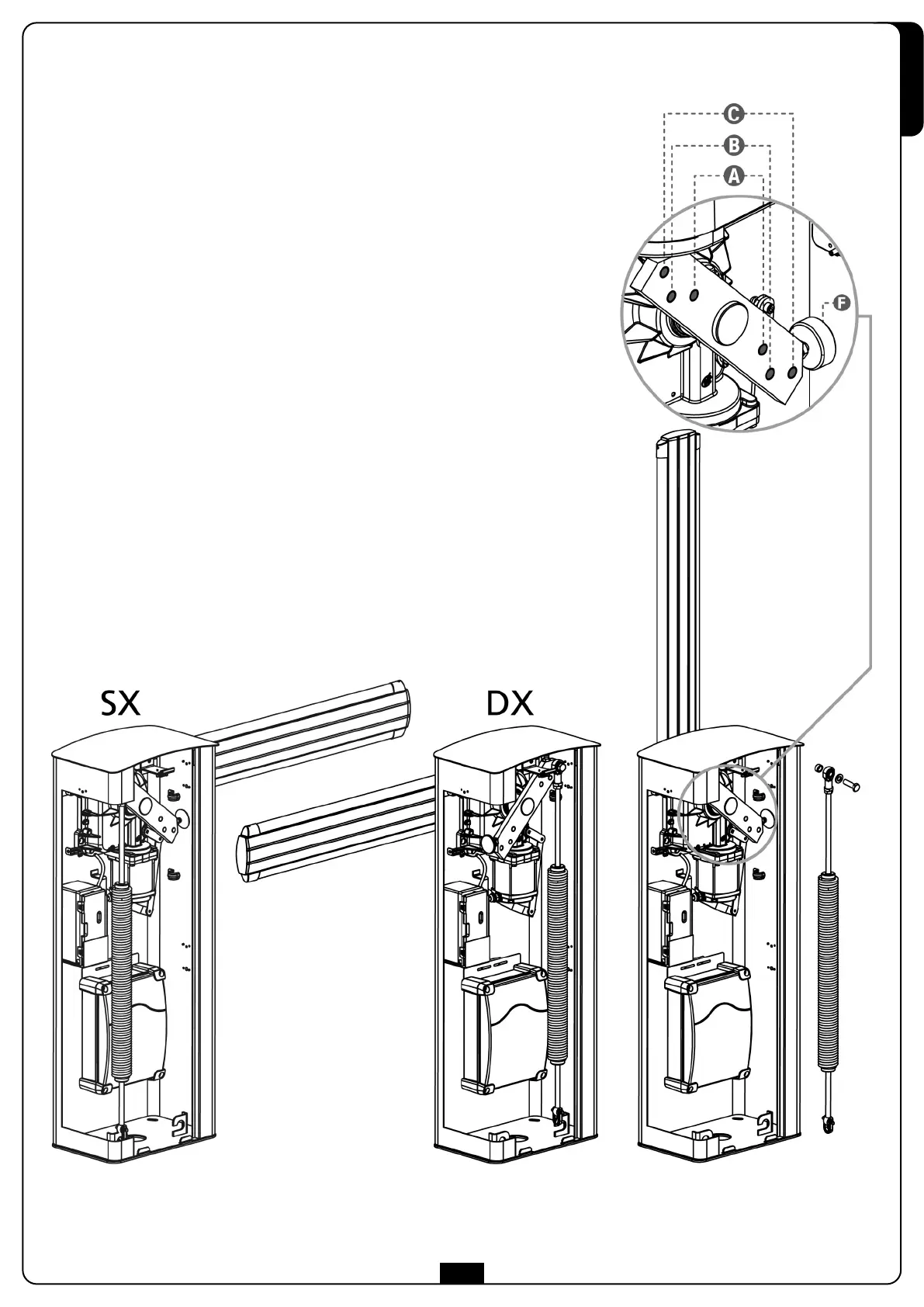

In base all’installazione DESTRA o SINISTRA della barriera, la molla deve
essere montata in posizioni differenti come visualizzato in figura.
Per montare la molla procedere come segue:
1. Sbloccare l’automazione (vedi paragrafo SBLOCCO D’EMERGENZA)
2. Portare la barra in posizione verticale
3. Montare la molla come visualizzato in figura, scegliendo il foro
di aggancio in base alle seguenti indicazioni.
A Per barre di lunghezza inferiore ai 3 m
B Per barre di lunghezza compresa tra 3 e 4 metri senza accessori
C - Per barre lunghe 4 metri con appoggio mobile (cod. 163604)
- Per barre di lunghezza tra 4 e 6 metri (molla codice 163606)
4. Regolare i 2 fermi finecorsa F
