7

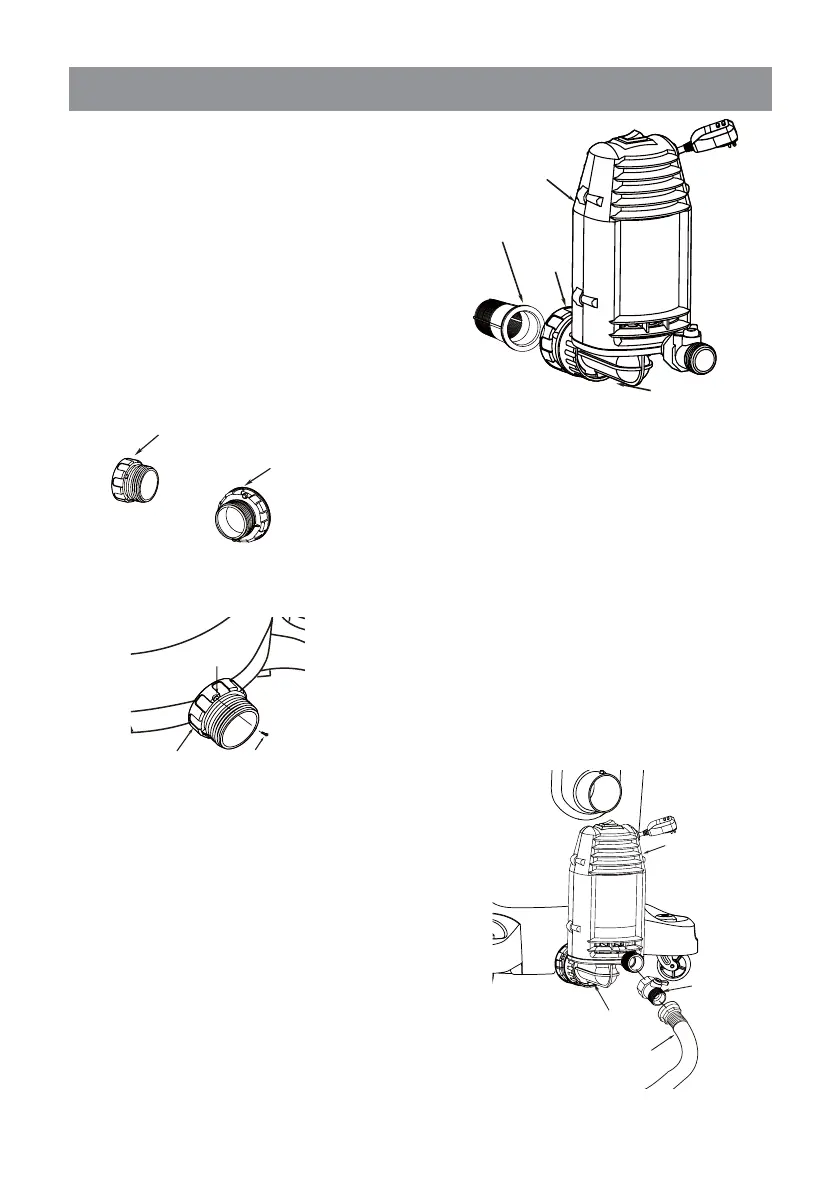

Pump Accessory Assembly
Your Pump Accessory will work on most
Wet/Dry Vacuums that have a drain at
the bottom of the drum. When attaching
the pump to the drain of your vacuum,
you will use most of the parts included
in this kit.
1. Mount adapter onto the drain of your
Wet/Dry Vac and fi rmly tighten by
hand. Locate screw notch and install
the supplied #16 x 2.6-inch long
screw.
ASSEMBLY
Screw Notch
Screw
Small Adapter
Small Adapter
Diameter of
Drain on Wet/Dry
Vac is 1-1/2 Inch:
Use Small
Adapter
Diameter of Drain on
Wet/Dry Vac is 2 Inch:
Use Large Adapter
Large Adapter
Pump Accessory
in Upright
Position
Coupler
Shut-off
Valve
Garden Hose
(Not Included)
Strainer
Large
Inlet
Pump
Accessory
Coupler
NOTE: The connection is designed
to prohibit rotation of the pump after
installation, so proper alignment must
be achieved before the coupler has
been tightened.
3. After the pump assembly is securely
attached to the drain, the shut-off
valve should be installed to the outlet
of the pump and turned to the closed
position. Without this shut-off valve
installed, liquid will leak through
the pump outlet. Connect a standard
size garden hose (not included), up to
50 feet in length, to the outlet end of
the shut-off valve. Longer lengths will
cause reduced performance of the
pump.
NOTE: The drain adapter is now a
permanent fi xture on your vacuum. Use
the original Wet/Dry Vac drain cap when
the pump is not in use.
2. Push the strainer into the large inlet
of the pump assembly. With the
strainer installed, slide the Pump
Accessory into the adapter previously
installed on the vacuum, positioning
the pump in an upright fashion.
Tighten the coupler by hand until
secure.
