Vacmaster VP680 - Housing Assembly Part Identification

20
Parts Information

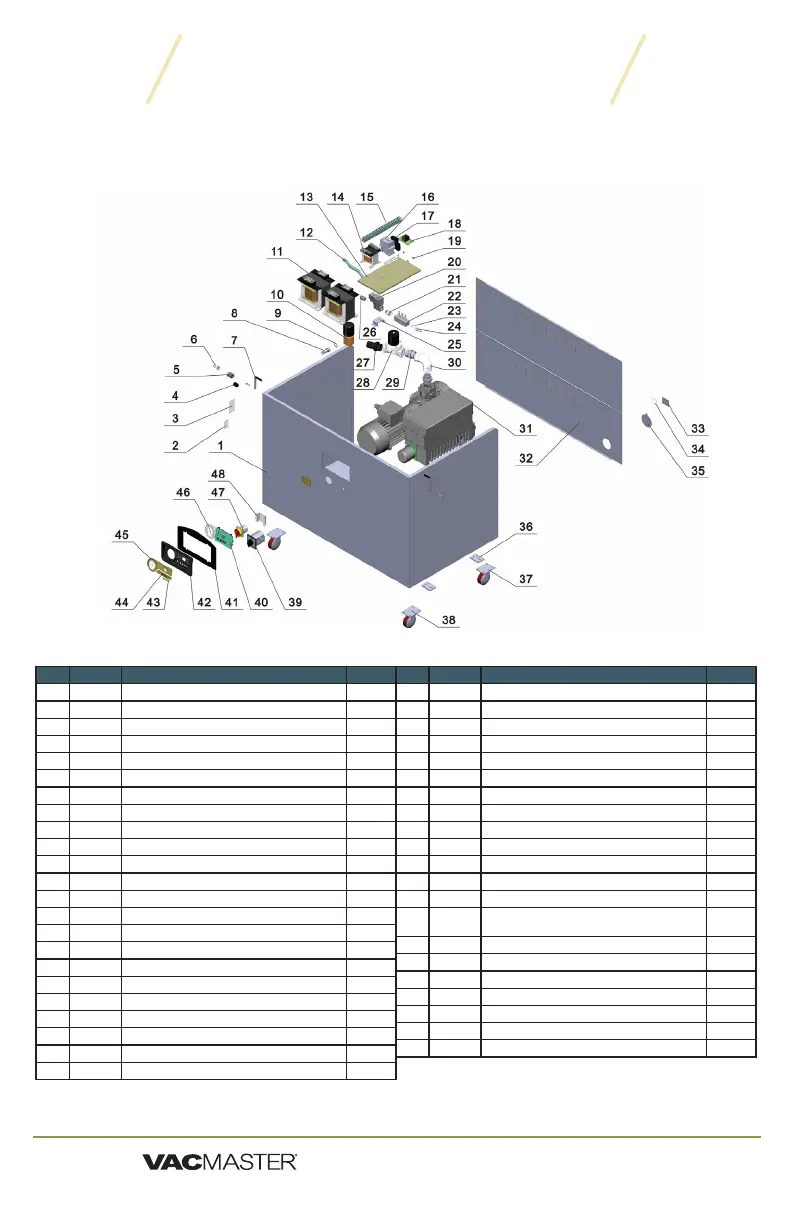

HOUSING
Part # Part Name Qty
1 Machine hull assembly 1
2 Sticker 1
3 Sticker 1
4 - 7 979170 Lid Latch Assembly 1
8 Pipe connector 1
9 O type rubber ring 1
10 979695 Solenoid valve 1
11 979687 Heating transformer 2
12 979156 Solenoid valve hose 1
13 Electrical installation board 1
14 979689 Control Transformer 1
15 Plastic wire groove 1
16 979690 Contactor, AC Relay 1
17 979691 Phase Control Relay 1
18 979136 Timer Relay 1
19 980100 Relay spacer 4
20 979802 Two piston two way solenoid valve 1
21 Double external screw direct connection 1
22 Inatable distributor 1
23 O type rubber ring 4
24 Valve connector 4
25 Electrostatic valve installation rack 1
26 Thread direct connection 1
Part # Part Name Qty
27 Vacuum pump pipe joint (comes w/ pump) 1
28 979707 Vacuum electromagnetic valve 1
29 External thread right-angle pipe connector 2
30 Rectangular pipe joint 1
31 979673 Vacuum pump (with motor) 1
32 Back cover 2
33 Sticker 1
34 Transparent sticker 1
35 Oil-lling hole cov er 1
36 Rack installation board 4
37 979595 Wheel , caster assembly (non-locking) 2
38 979804 Brake plate universal caster 2
39 979334 Switch, selector 1
40
977501 /
977503
Vacuum control board 1
41 979131 Faceplate, panel 1
42 979125 Panel, instrument 1
43 977510 Sticker, Single green panel decal for VP680 1
44-45 977504 Stickers, Green panel decal 1 Set
46 979126 Vacuum Gauge 1
47 979138 Power switch 1
48 Power switch frame 1
