The window slider kit has been designed to fit most standard vertical and horizontal
window applications, however, it may be necessary for you to modify some aspects of the
installation procedures for certain types of windows. The window slider kit can be fastened
with screws.
Note: If the window opening is less than the minimum
length of the window slider kit, cut the end without the
INSTALLATION INSTRUCTIONS
EXHAUSTING HOT AIR
In the Cool Mode the appliance must be placed close to a
window or opening so that the warm exhaust air can be
ducked outside.
First position unit on a flat floor and make sure there's a
minimum of 17.7" (45cm) clearance around the unit, and is
within the vicinity of a single circuit outlet power source.

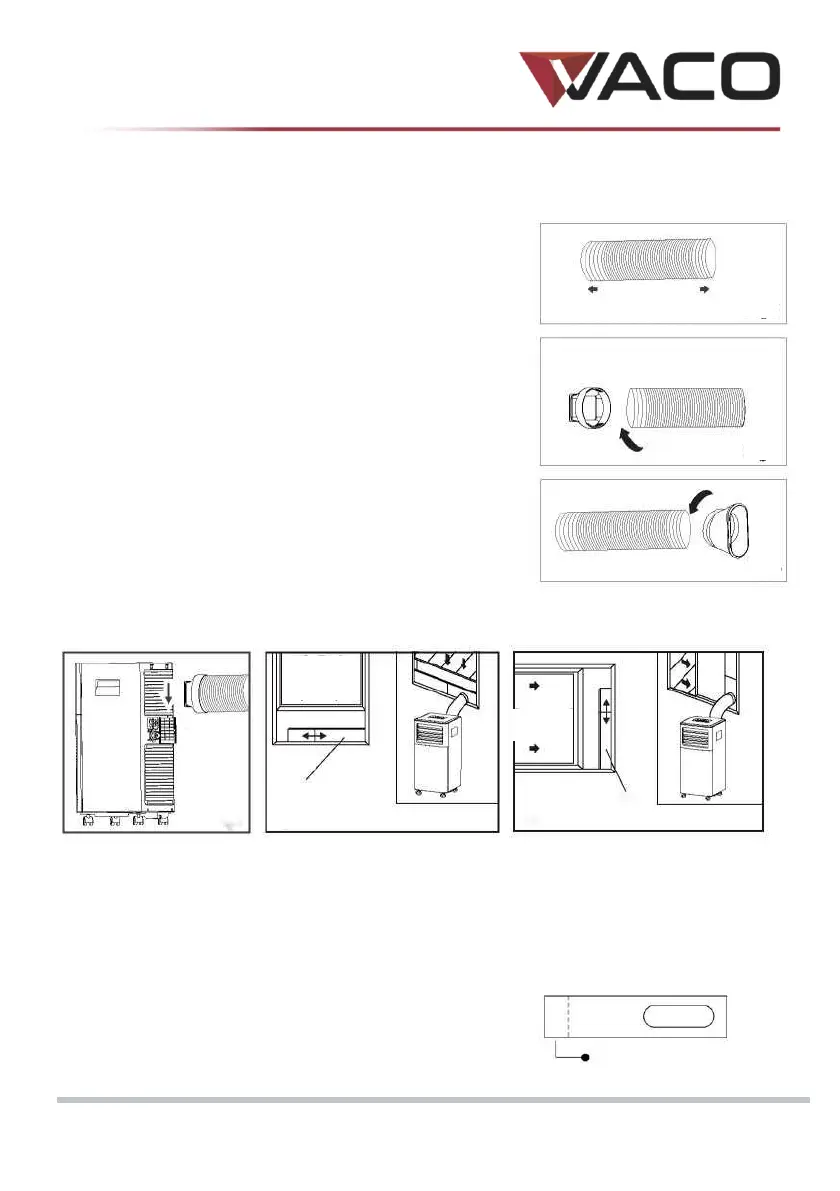

1. Extend either side of the hose (Fig. 1)
2. Screw the hose inlet (Fig.2).
3. Screw it to the hose inlet (Fig.3).
4. Install the hose inlet into the unit (Fig.4).
5. Affix the hose outlet into the window slider kit and seal.
(Fig.5 &6).
Extend the side of hose
Fig. 2
Fig. 3
Fig. 1
Fig.4
Slide into
Vertical
Window
Window slider
Fig.5
Horizontal
Window
Window slider
Fig.6
