7.3.1 Monitoring menu (M1)
You can enter the Monitoring menu from the Main menu by pressing Menu button right when the
location indication M1 is visible on the first line of the display. Figure 3-1 shows how to browse
through the monitored values.
The monitored signals carry the indication V#.# and they are listed in Table 7-1. The values are
updated once every 0.3 seconds.
This menu is meant only for signal checking. The values cannot be altered here. For changing values
of parameters, see Chapter 7.3.2.

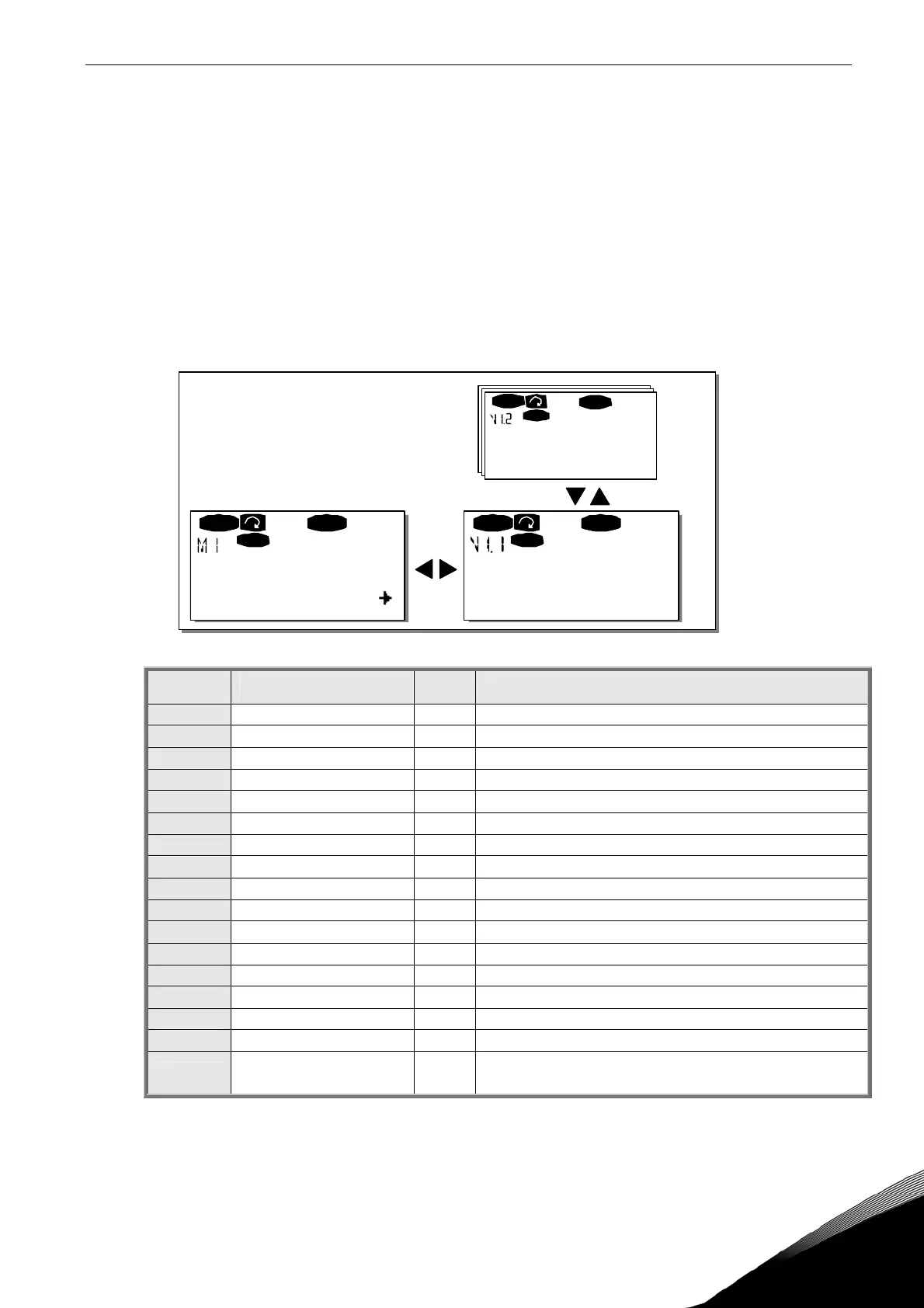

Figure 7-3 Monitoring menu
Code Signal name Unit Description
V1.1 Output frequency Hz Frequency to the motor
V1.2 Frequency reference Hz
V1.3 Motor speed rpm Calculated motor speed
V1.4 Motor current A Measured motor current
V1.5 Motor torque %
Calculated actual tor
q
ue/nominal tor
q
ue of the
V1.6 Motor power %
Calculated actual
p
ower/nominal
p
ower of the
V1.7 Motor voltage V Calculated motor voltage
V1.8 DC-link voltage V Measured DC-link voltage
V1.9 Unit temperature ºC Heat sink temperature
V1.10 Motor temperature % Calculated motor temperature
V1.11 Voltage input V AI1
V1.12 Current input mA AI2
V1.13 DIN1, DIN2, DIN3 Digital input statuses
V1.14 DIN4, DIN5, DIN6 Digital input statuses
V1.15 DO1, RO1, RO2 Di
g
ital and rela
y
out
p
ut statuses
V1.16
Analo
g
ue out
p
ut
mA AO1
M1.17
Multimonitoring
items
Displays three selectable monitoring values. See
chapter 7.3.6.5.
Table 7-1. Monitored signals
Note! All in One applications may embody more monitoring values.
V1

V14
READY
Local
13.95 Hz
READY
Local
13.95 Hz
READY
Local
RUN RUN
RUN
Monitor Output frequency
FreqReference
