-8-

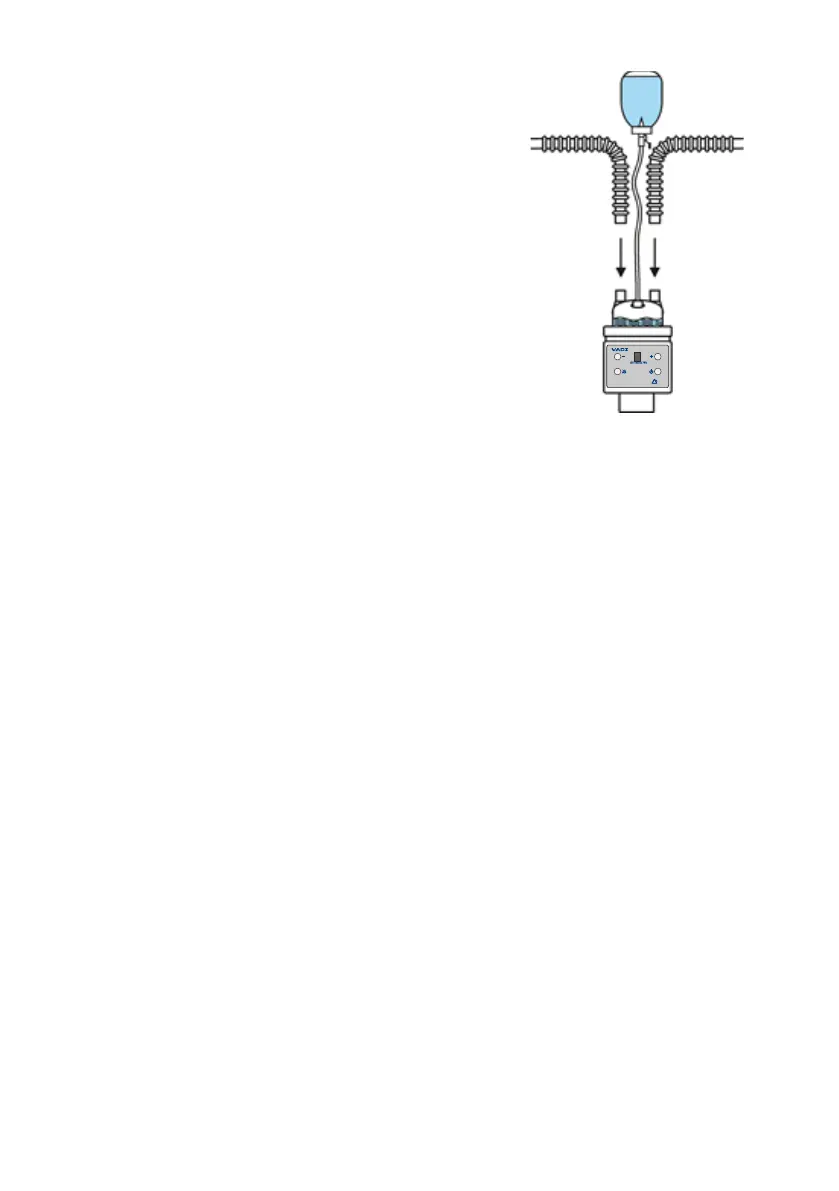

5.4 Connect the tube from gas supply to
inlet port of chamber and the
inspiratory part of circuit to the
outlet port.
Notes
1. Water level should not exceed the highest level and should
not be less than the lowest level.
2. Device cannot be lean over 10°.
3. Condensed water in circuit is not acceptable.
4. Connect water trap is recommended.
5. Water level exceed in chamber may result water
condensation in breathing circuit.
6. Do not touch the heater plate while operation.
