VADO celsius - Operation and Specifications; Product Dimensions; Operating Pressure and Temperature

6

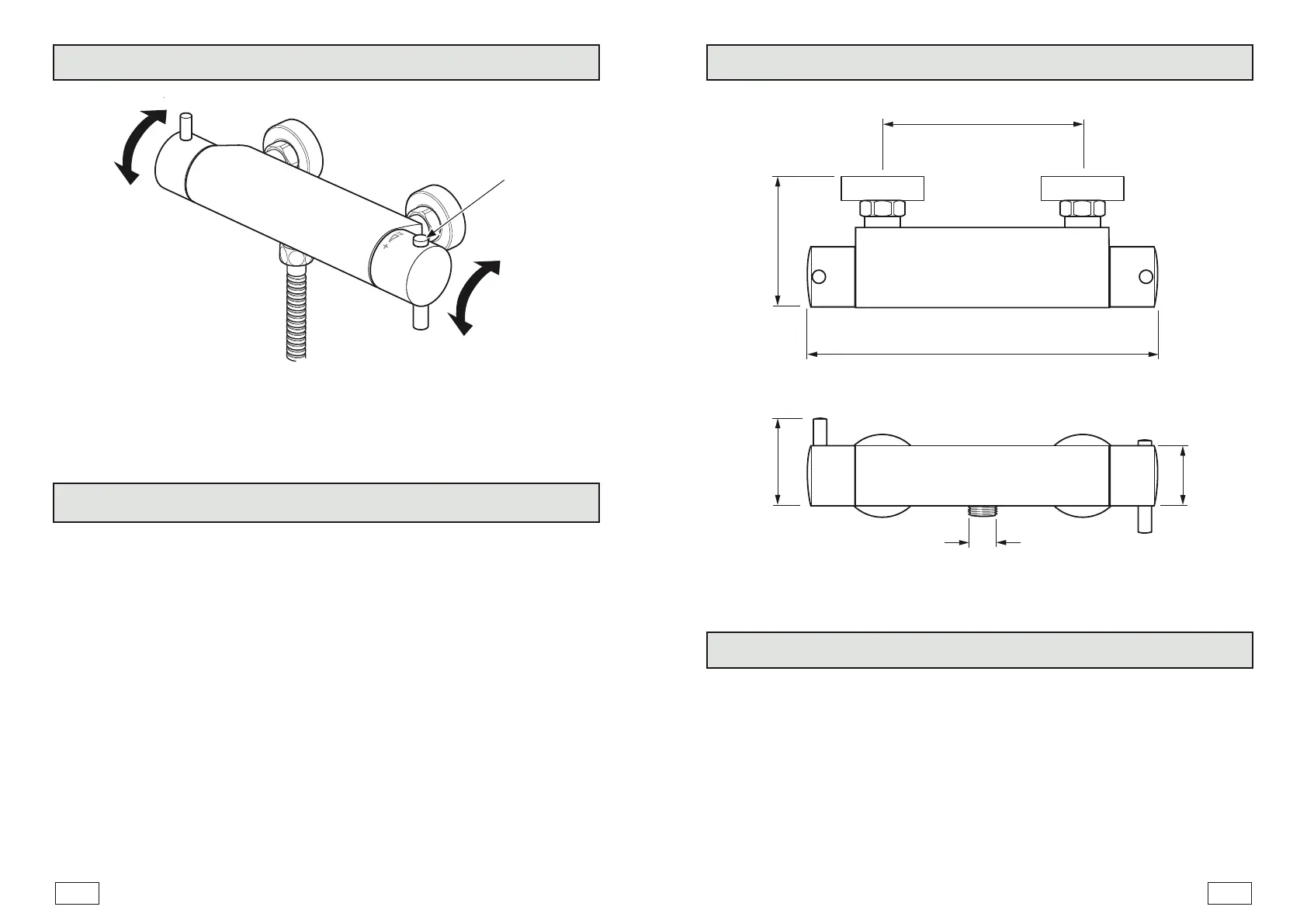

Dimensions
3
Operating Specications
Operation
Hot Water Supply Temperature:
Maximum: 85° C
Minimum: 10° C higher than the maximum required mixed temperature (advise 65° C)
Operating Pressure
Minimum operating pressure 0.2 bar
Maximum operating pressure 5 bar
100mm
46mm
66mm
267mm
1/2”
Moving the handle
controls the ow of
water.
Moving the handle will
increase/decrease the
water temperature.
Pushing down on
this button will
override the set
temperature.
150mm +/–20mm
Maintenance
IMPORTANT:
Please see the below procedure for isolating the thermostatic valve.
1. Isolate the incoming hot and cold water to the valve.
2. Turn shower valve on to check isolation, please ensure that your body/hands are not
under the ow of water as there is a potential for delivery of hot water.
3. Remove temperature control handle (refer to instruction leaet) and temperature
stop ring (essential).
4. With shower in the on position, replace temperature handle on thermostatic valve
(ensure temperature stop ring has been removed).
5. Turn temp handle fully anti clockwise until stop point is reached and can be turned
no further , please ensure that your body/hands are not under the ow of water as
there is potential for delivery of hot water if isolation has been unsuccessful.
6. Turn temperature handle fully clockwise until you feel a click.
7. If there is no ow of water coming from the outlet during both points 5 and 6
isolation has been successful, you may now remove and maintain the cartridge.
8. If at any of the above point’s water continues to ow please isolate at an alternative
point within the system for both hot and cold and repeat points 2-8.
