Vaillant ecoFIT pure 830 User Manual

0020230531_06 ecoFIT pure Installation and maintenance instructions 11
6 Set-up
6.1 Checking the scope of delivery
▶ Check that the scope of delivery is complete and intact.
Number Designation
1 Heat generator
1 Unit mounting bracket
1
Flexible condensate discharge pipe
6 3/4" seals
4 1/2" seals
1 Service valve
1 Gas stopcock
1 Filling loop
2 Connection pipe (heating flow and return)
1 Cold water connection pipe
1 Domestic hot water connection pipe
1 Gas pipe
1 Drain pipe for the Pressure relief valve
1 Mounting template
1 Enclosed documentation

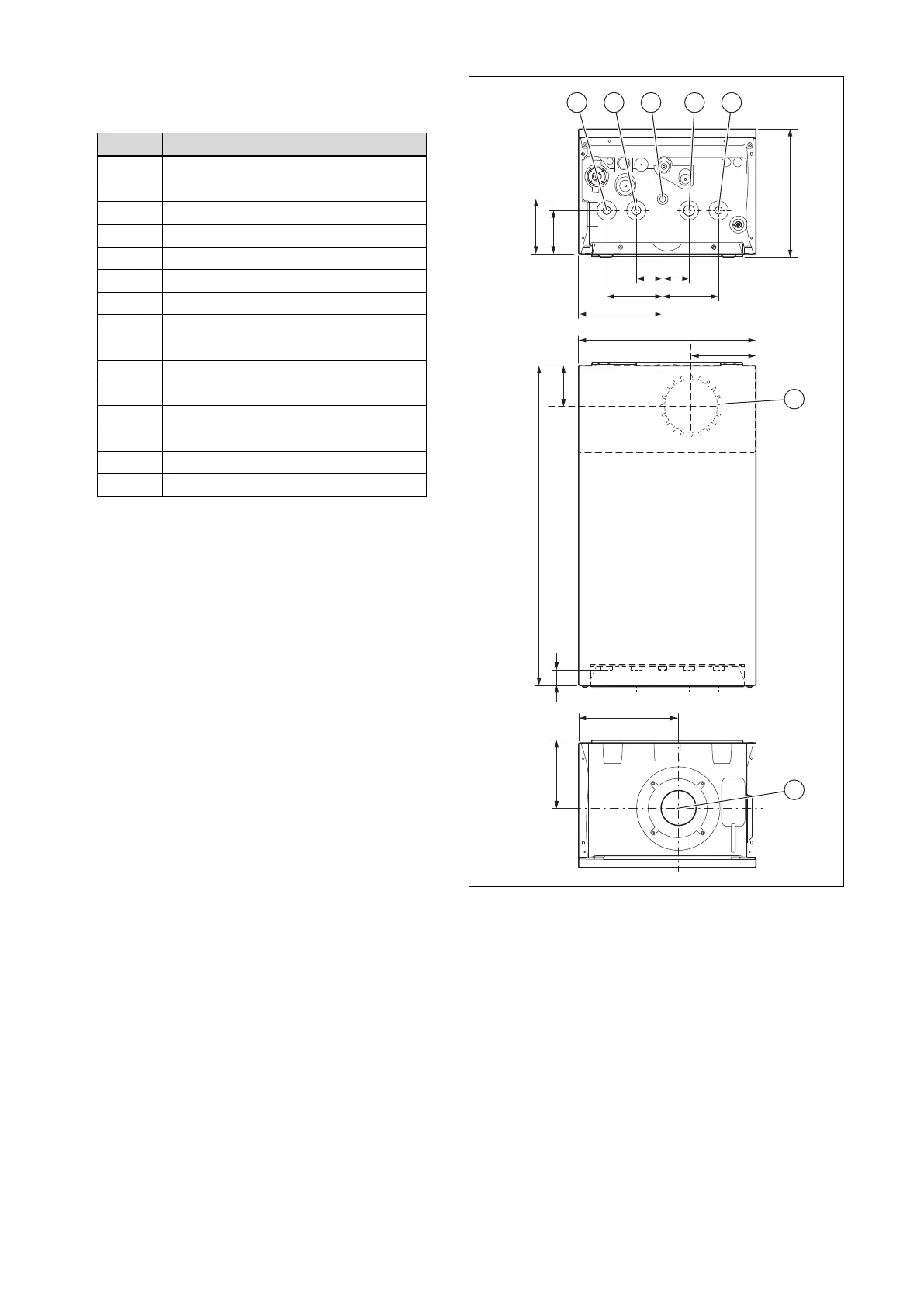

6.2 Dimensions
96
121
34
123
185
390
123
58 58
220
700
150
295
150
76
1 2 3 4 5
7
6
1 Heating flow
2 Domestic hot water
connection
3 Gas connection
4 Cold water connection
5 Heating return
6 Rear air/flue connection
7 Top air/flue connection

Vaillant ecoFIT pure 830 Specifications

General

Output	30 kW
Efficiency Rating	A
Fuel Type	Natural Gas
ERP Rating	A
Mounting	Wall Mounted
DHW Output (kW)	30 kW
Efficiency (%)	94%
Efficiency	94%
Warranty	5 years
Type	Combi Boiler
Dimensions (H x W x D)	700 x 390 x 295 mm
Flow Rate	12.4 l/min
