Vaillant ECOmax 824 E - TURBOmax Boiler Time Clock Installation

2
1. Plug in time clock
installation with a
TURBOmax
VUW 242/1 E
VUW 282/1 E
•
Isolate the boiler from the mains
electricity supply by disconnecting the
plug at the socket outlet (if there is an
isolating switch only, remove the fuse
from the switch).
•

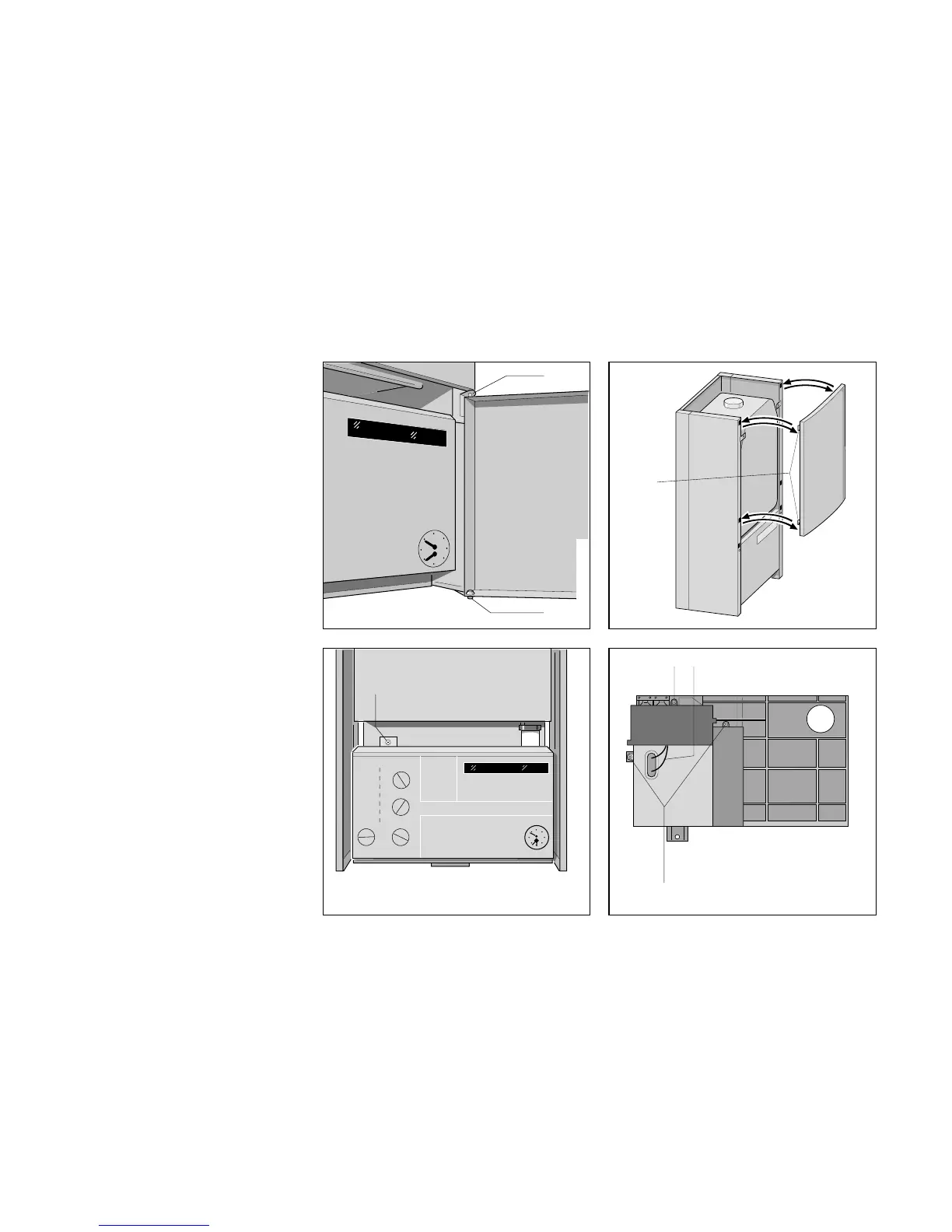

Remove bottom hinge screw (1, fig.
1a) and pull lower door panel forward
and down to release it from the top
hinge pin (2, fig. 1a).
•
Slide the top panel up to release the
retaining clips (1, fig. 1b).
•
Undo screw (1, fig. 1c) and lower front
control panel.
•
Disconnect ignition leads (2, fig. 2)
from rear of control box, and remove
terminal strip cover and back of control
box by undoing three screws (1, fig. 2).
1
Fig. 1b
12
1
Fig. 2
EC_Regler_(24h_7d)_007/0
EC_Regler_(24h_7d)_003/0
2
1
Fig. 1a
GW 606/1
1
Fig. 1c
EC_Regler_(24h_7d)_008/0
