6 Operating and installation instructions 0020244064_02
2 Notes on the documentation
2.1 Observing other applicable documents
▶ You must observe all the operating and installation in-
structions included with the system components.
▶ Observe the country-specific notes in the Country Specif-
ics appendix.
2.2 Storing documents
▶ Store these instructions and all other applicable docu-
ments for further use.
2.3 Validity of the instructions
These instructions apply for the following products only:
Product article number
VPS R 100/1 M
0010021456
VPS R 200/1 B
0010021457
3 Product description

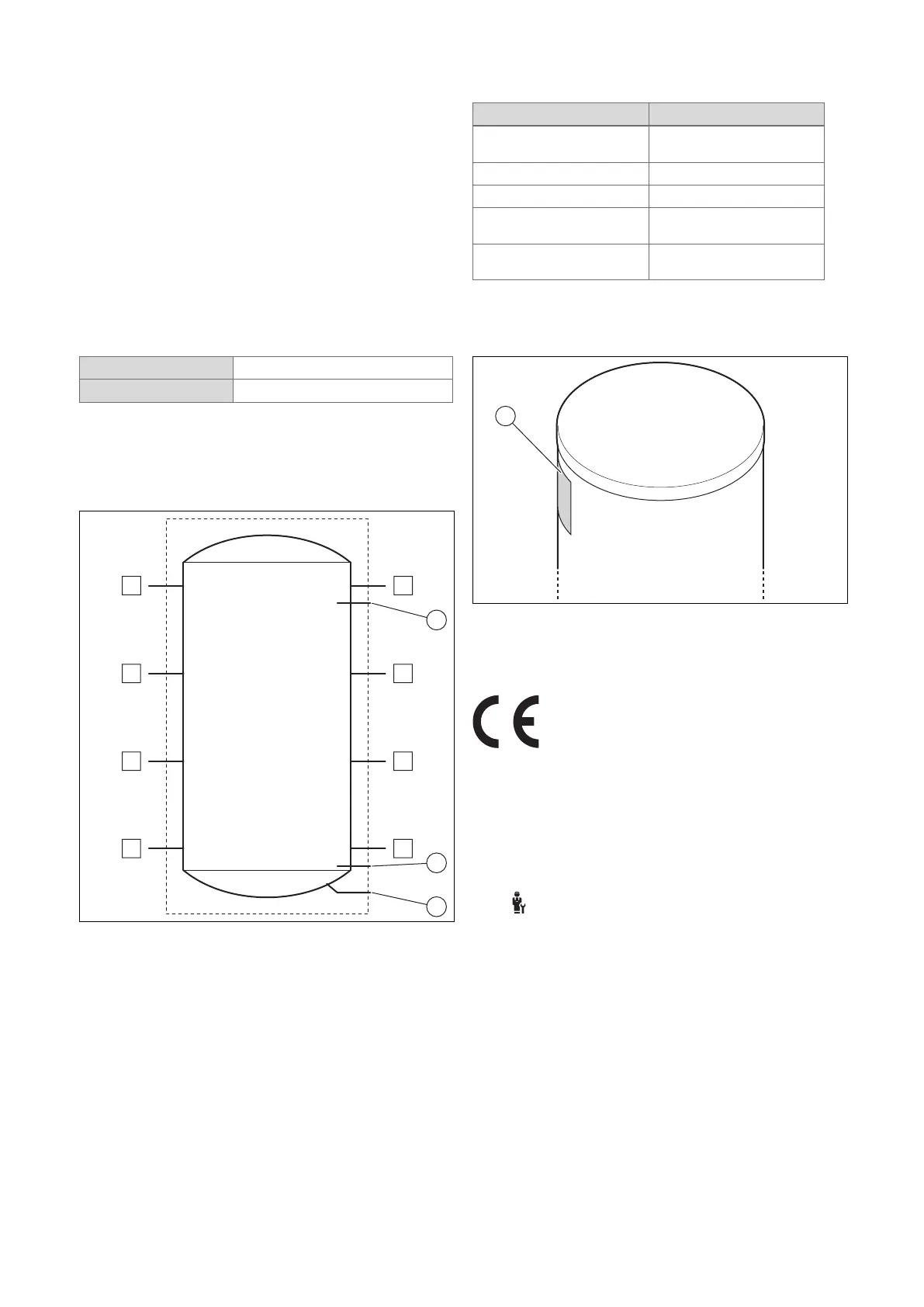

3.1 Product design
A
B
C
D
A
B
C
D
1
2
3
1 Sensor pocket for the
top temperature sensor
2 Sensor pocket for the
bottom temperature
sensor (only on the 200-
litre model)
3 G3/4 draining connec-
tion (only on the 200-
litre model)
A G1" 1/2 hydraulic con-
nection
B G1" 1/2 hydraulic con-
nection
C G1" 1/2 hydraulic con-
nection
D G1" 1/2 hydraulic con-
nection
3.2 Information on the identification plate
The identification plate contains the following information:
Abbreviations/symbols Description
Serial no. Brand name and serial num-
ber for the product
"XX" kg Net weight
"XX" l Total cylinder capacity
"XX" mPa Maximum cylinder operating
pressure
"XX" °C Maximum cylinder operating
temperature
3.3 Serial number
Installation location for the identification plate:
1
The model and serial number are located on the identifica-
tion plate (1).
3.4 CE marking
The CE marking shows that the products comply with the
basic requirements of the applicable directives as stated on
the declaration of conformity.
The declaration of conformity can be viewed at the manufac-
turer's site.
4 Set-up
4.1 Unpacking
1. Remove the product from the packaging.
2. Remove the protective film from all of the product's
components.
