23VRT 230 Installation Manual
4
2
3
1
5
6
7
4

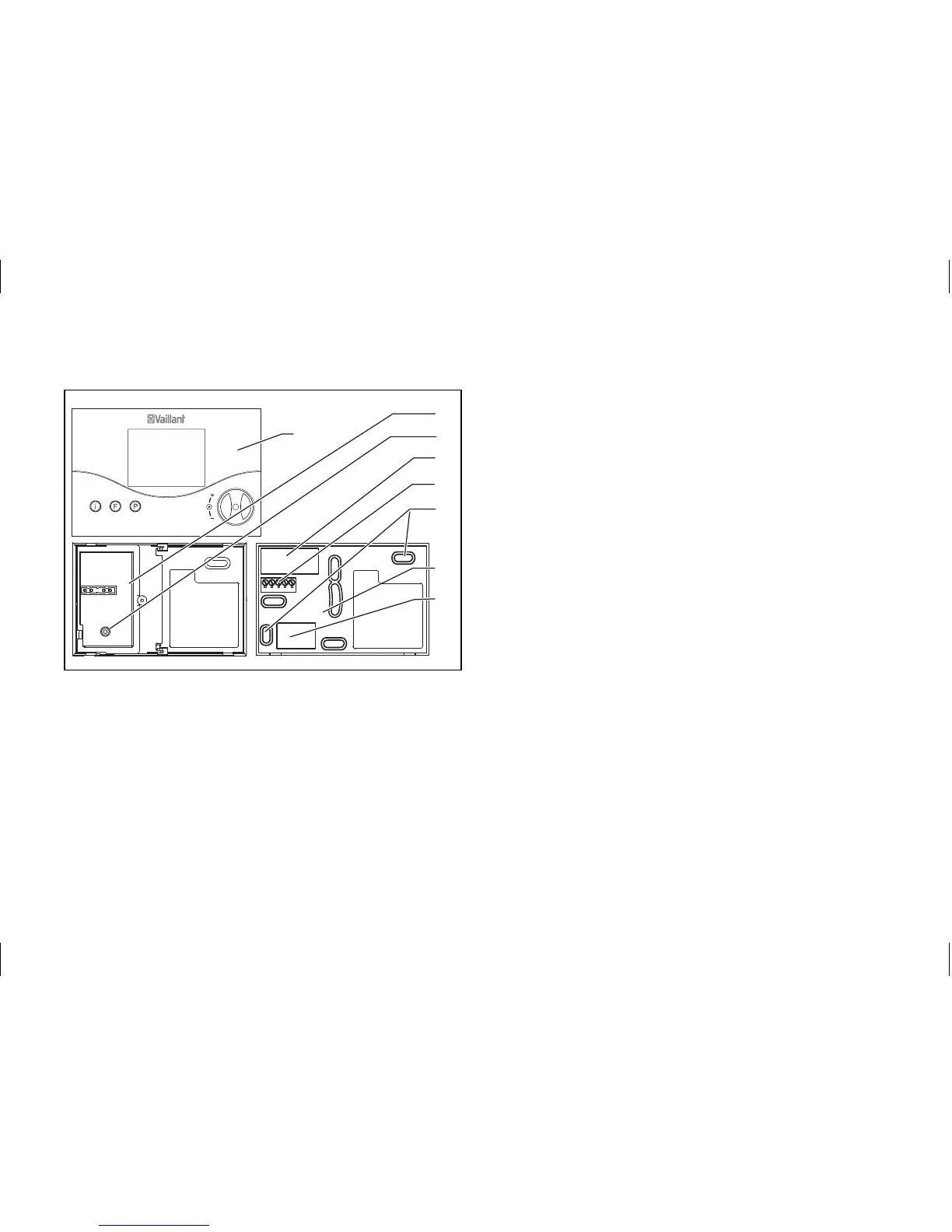

Fig. 9.1 Mounting the room thermostat
• Drill two holes (3) of 6 mm diameter
(as shown in fig. 9.1) and put in the
supplied wall plugs.
• Thread the cable through the cable
entry (4) below the inner protective
cover.
• Fix the mounting box to the wall with
the two screws provided.
• Connect the cable as described in 10.1.
• Push the inner protective cover back
to the left and fasten it with the screw.
• Place the room thermostat (1) on the
mounting box (5) so that the pins on
the back of the upper section fit into
the recesses (2).
• Push the room thermostat onto the
mounting box until it catches.
Installation 9
