0020238195_07 ecoTEC plus Installation and maintenance instructions 11
6 Set-up
6.1 Checking the scope of delivery
Check that the scope of delivery is complete and intact.
6.1.1 Scope of delivery
Number Designation
1
Heat generator
1
Unit mounting bracket
1 Flue adapter
1
Gas stopcock
1 Gas pipe
1 Condensate discharge hose
1
Mounting template
1 Enclosed documentation

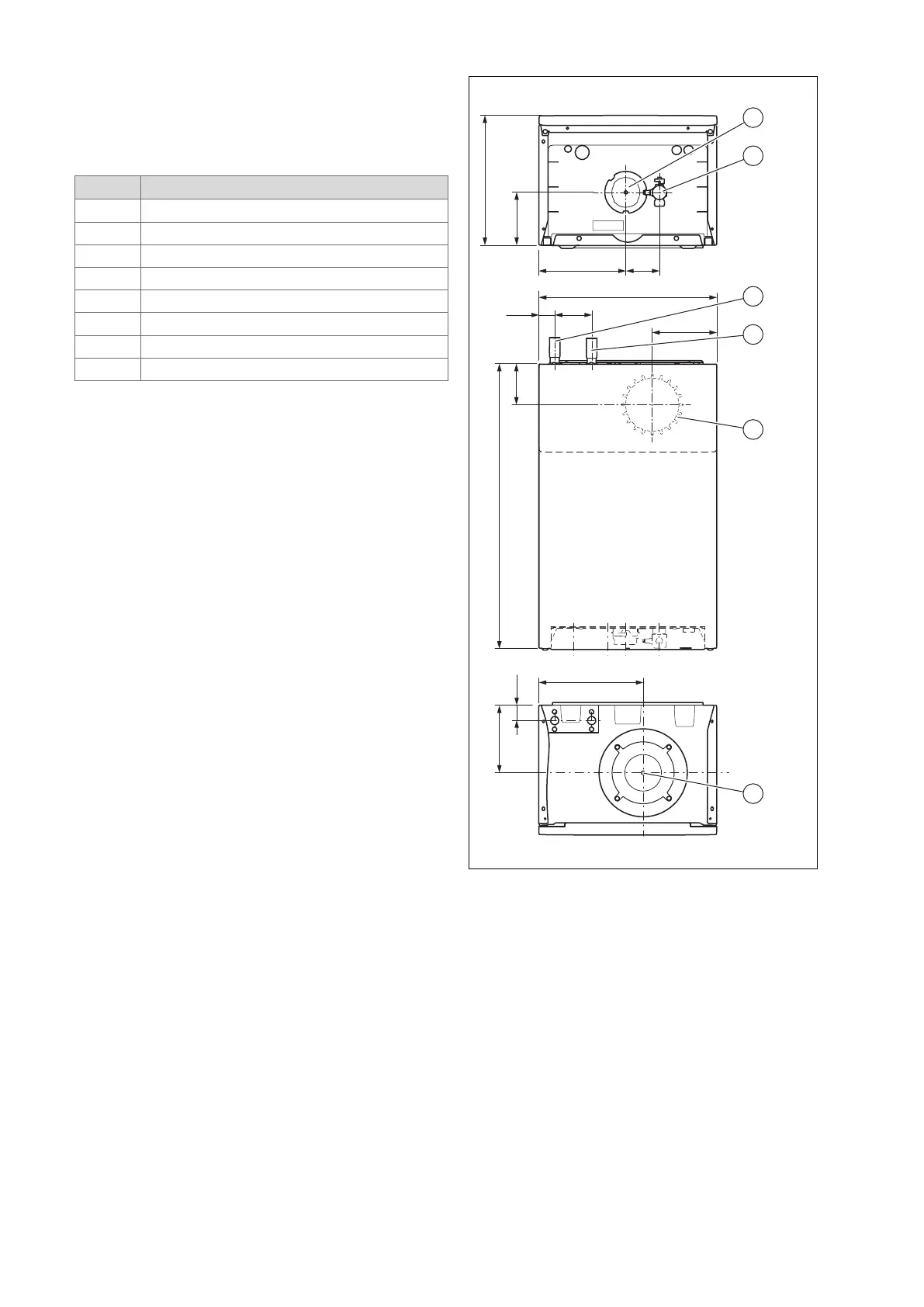

6.2 Dimensions
112
183,5 71
375
7833,5
602
220
150
32,5
100
133,5
295
1
2
3
4
5
6
1 Condensate discharge
2 Gas connection
3 Heating return
4 Heating flow
5 Rear air/flue connection
6 Top air/flue connection
6.3 Installation site
This boiler is not suitable for outdoor installation. This boiler
may be installed in any room. However if the boiler is being
installed in a room containing a bath or shower it must only
be installed in zones 2 or 3. In GB this is the current I.E.E.
WIRING REGULATIONS and BUILDING REGULATIONS. In
IE reference should be made to the current edition of I.S.813
“Domestic Gas Installations” and the current ETCI rules.
If the boiler is to be installed in a timber frame building it
should be fitted in accordance with the current version of the
Institute of Gas Engineers document IGE/UP/7. If in doubt
seek advice from local gas undertaking or the manufacturer.
