Using the appliance
B
Positioning the unit
• Place the dishwasher in the desired location. The back of the unit should rest against the
wall behind it, and the sides against adjacent cabinets or walls.
• This dishwasher has drain and water supply pipes that can be positioned on the left or right
side for easy installation.
Recessed installation
Step 1: Choosing the best location for the dishwasher
• The dishwasher should be installed close to the existing water supply, supply sources and
drain pipes.

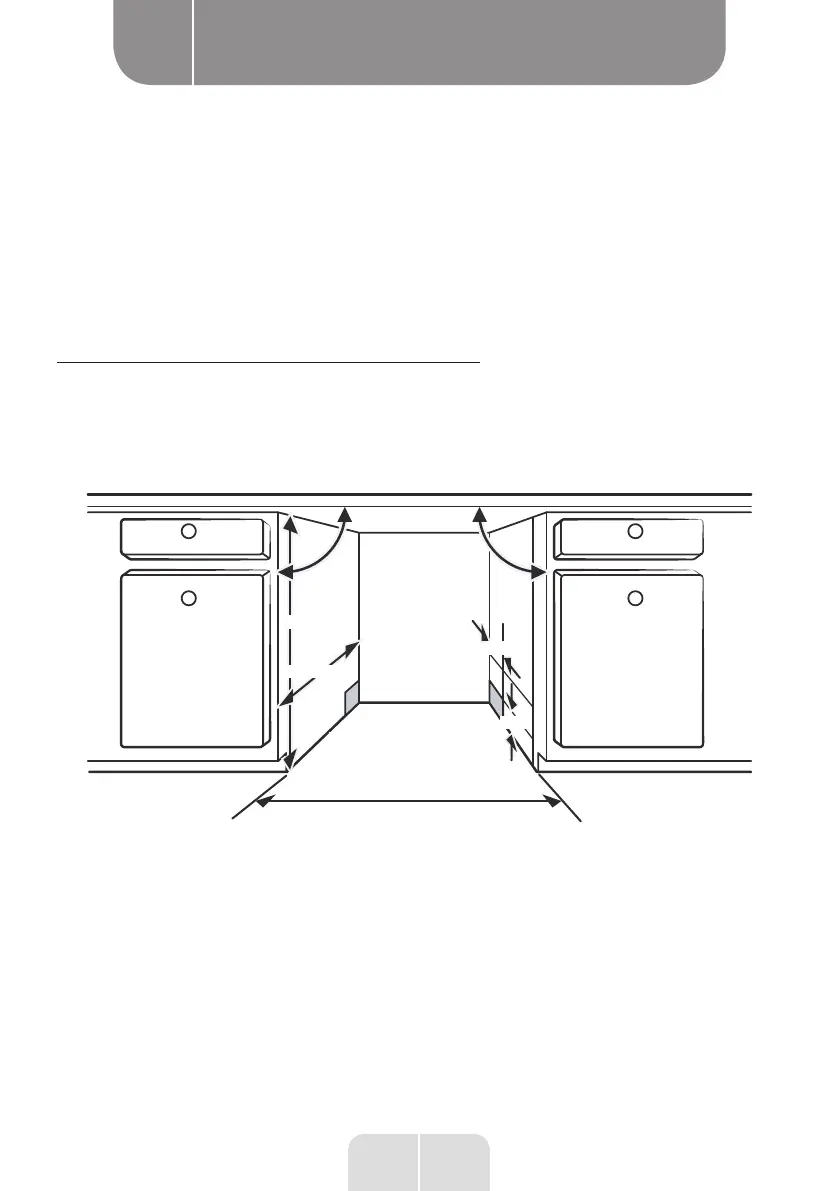

• Illustration of cabinet dimensions and installation position of the dishwasher
90°
90°
820 mm
580 mm
80
100
Opening for
power supply,
water supply
and drainage
Clearance between the
bottom of the cabinet and
the oor
600 mm (for 60 cm models)
450 mm (for 45 cm models)
1. There should be a gap of less than 5 mm between the top of the dishwasher and the
worktop, and the outer door should be ush with the cabinet.
2. If you install the dishwasher in the corner of a cabinet, you must allow sufficient space for
the door to open.
