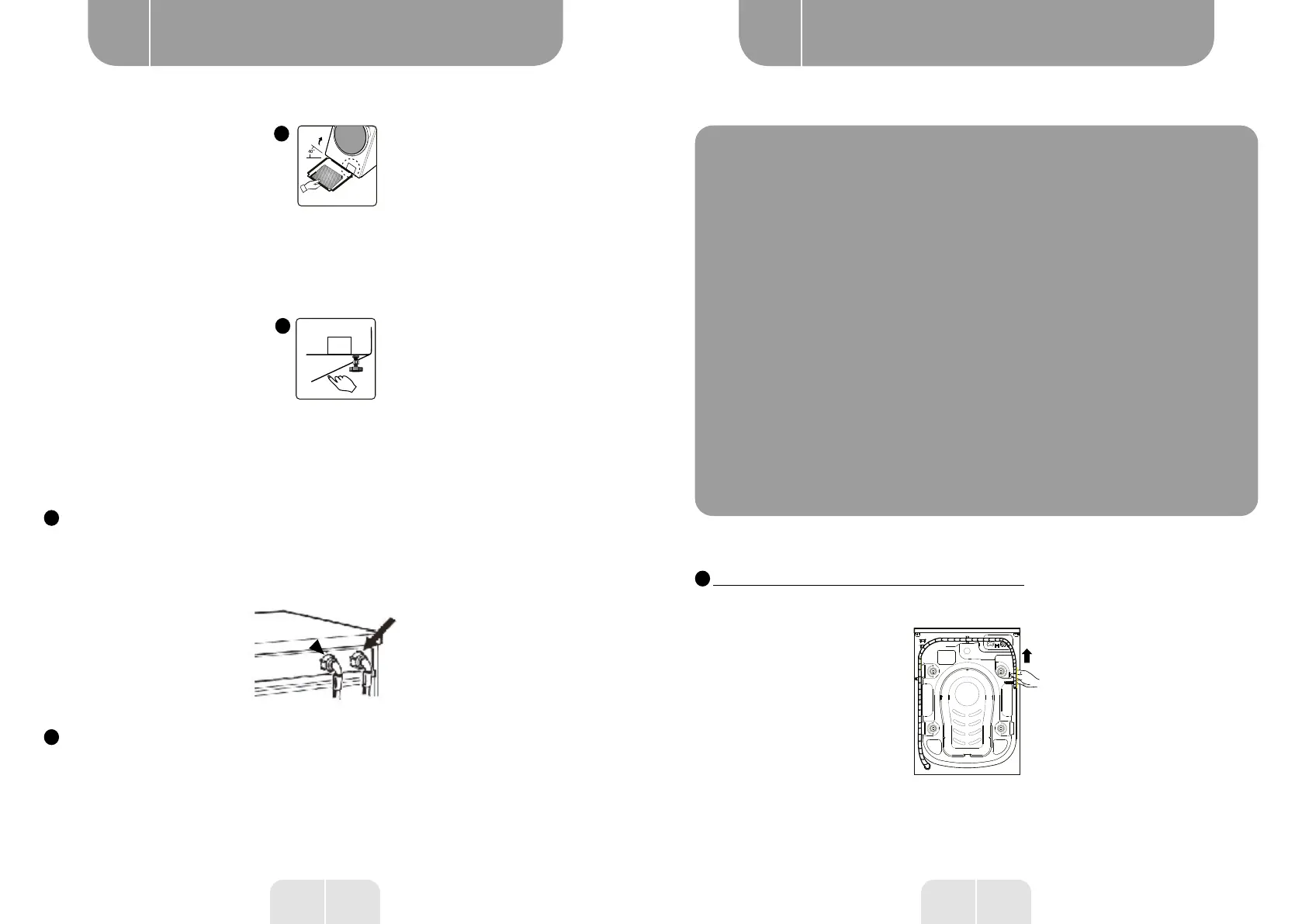

Incline the machine to an angle of 40° and let the side with right-angle notch face towards
frost of the washing machine, as shown in the figure. Insert the side with oblique-angle notch
between two foot screws at back of the washing machine completely in place. Then, install
the bottom plate and ensure that it contacts with bottom of the washing machine closely.
4
Press the double sided tape on four sides manually to secure the noise-reduction plate to
the machine body firmly.
Connect the water supply inlet hose
9
If the water inlet hose is not already installed, it must be screwed to the appliance.The
blue marked hose is only for cold water. Depending on the model, the hot waterhose marked
with red should also be connected, for models having dual inlets.
Hot (Depending on models} Cold
10
Screw by hand the inlet hose onto the tap, tightening the nut.
Using the appliance
EN
IMPORTANT
• No kinks in the hose!
• The appliance must not be connected to the mixing tap
of an un-pressurized water heater.
• Check water-tightness of connections by turning the tap
completely on.
• If the hose is too short, replaça it with a suitable length
of pressure resistant hose (1000 kPa min).
• Check the inlet hose regularly for brittleness and cracks
and replace if necessary.
• The washing machine can be connected without a non-
return valve.
Connect the drain hose
11
In case the drain hose is installed as shown below:
Unhook it only from the right clip (see arrow)
