Valcom V-2000A User Manual

2
Dimensions/Weight
• 2.50" H x 7.70 " W x 5.30" D
(6.35cm H x 19.56cm W x 13.46cm D)
• 2.6 lbs. (1.2 kg)
Nominal Power Requirements
• Voltage: 115VAC
• Current: 0.35 Amp
Environment
• Temperature: 0 to +40° C (+32 to +104° F)
• Humidity: 0 to 85% non-precipitating
Nominal Specifications
Input Impedance: 600 Ohms
Input Level: -10dBm nominal
Music Source Input Impedance: 8 to 600 Ohms
Voice Switch Sensitivity: -21dBm
Music Input Level: -10dBm nominal
Output Impedance: 8 Ohms
Output Level: -10dBm nominal
DC Output: -24VDC at 600mA
SYSTEM DESIGN
General
The Valcom V-2000A Integrated Single Zone Page
Control Unit provides access to paging from a
standard PABX loop start trunk port, an Electronic
Key System C. O. line button or a 1A2 Key System C.
O. line button (A 400 type line card is required). In
most cases, access is also possible from a PABX or
Electronic Key System page port.
NOTE: Do not connect to Central Office Line or
PBX Station Port.
Electronic Key or PABX Access
When using the V-2000A with an electronic key
system or PABX, the following equipment will be
needed:
1) 1 - V-2000A Integrated Single Zone Page Control
Unit
2) 1 - C. O. Line Circuit (Electronic Key System) or 1
Loop Start Trunk Circuit (PABX)
3) Valcom One-way Amplified Speaker Assemblies
(Quantity and style determined by specific
installation)
Operation: Press the appropriate line key (Electronic
key system) or dial the appropriate trunk access code
(PABX). You will immediately be connected to the
paging speakers. Make announcement. The V-
2000A will automatically disconnect when you hang
up.
Page Port Access
When accessing the V-2000A from a page port the
following equipment will be required:
• One V-2000A Integrated Single Zone Page
Control Unit
• Telephone System Page Card (If required for
external page outputs)
• Valcom One-way Amplified Speaker Assemblies
(Quantity and style determined by specific
installation)
Operation: Follow the telephone manufacturers’
directions on how to access external paging. You will
immediately be connected to the paging speakers.
Make announcement. The V-2000A will automatically
disconnect when you hang up.
Background Music
Background music may be connected to the V-2000A
when using any of the above configurations. The
background music will cut off automatically when the
party making the page is speaking.
E-KEY
OR PABX
V-2000A
INTEGRATED
SINGLE ZONE
PAGE SYSTEM
VALCOM ONE-WAY
AMPLIFIED SPEAKERS
NOTE; Additional power supplies required for large numbers of speakers.

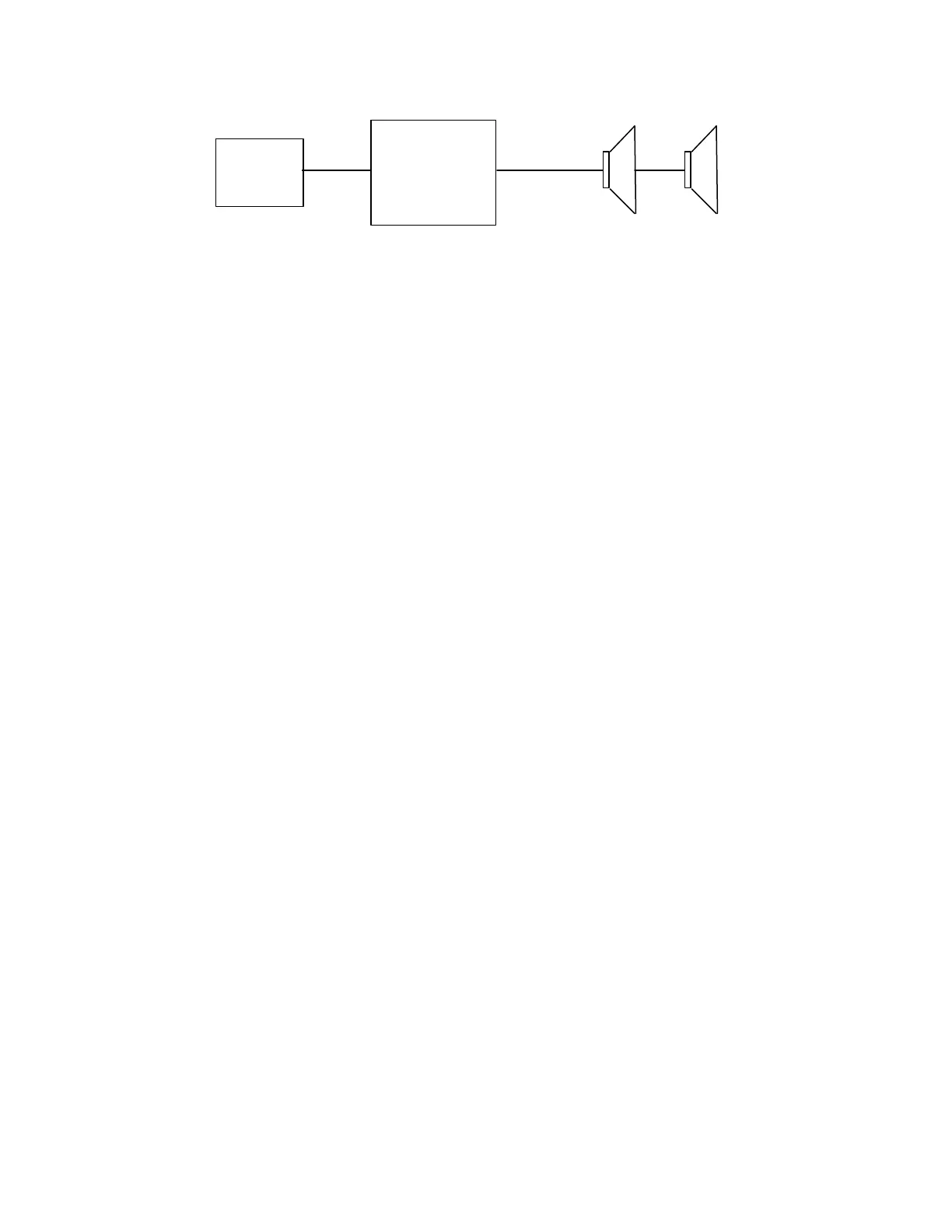

FIGURE 1 - TYPICAL INSTALLATION

Valcom V-2000A Specifications

General

Brand	Valcom
Model	V-2000A
Category	Control Unit
Language	English
