Setting Program Dip Switches

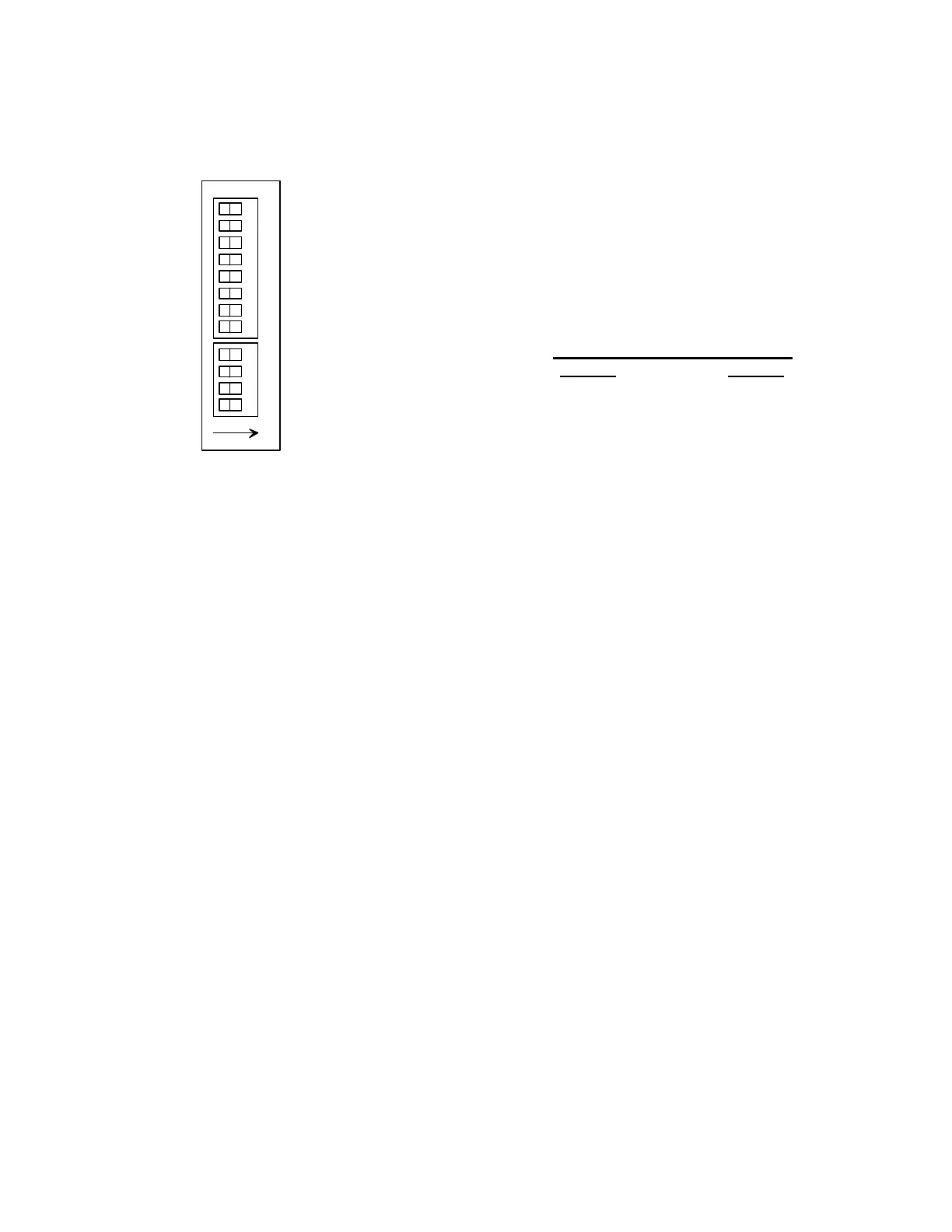

There are two sets of dip switches on the V-9962 (See
Figure 4) which provide user selectable Options.
The 8-position dip switch (SW-272-1)
offers the following choices:
Maximum Recording Length:
#1 Off 60 sec. at 3.4 Khz Bandwidth
#1 On 30 sec. at 6.8 Khz Bandwidth
DTMF Options:
#2 Off, #3 Off DTMF, No restrictions
#2 On, #3 Off DTMF, Allow two bursts
#2 Off, #3 On DTMF, Allow one burst
#2 On, #3 On DTMF, Choke (Abort)
Record Setup:
#4 On, #5 Off Activate RECORD by DTMF (One
Pulse).
#4 Off, #5 On Activate RECORD by Audio Sensor.
NOTE: Activate RECORD by external dry contact is
always functional regardless of switch settings.
Play Setup:
#6 Off, #7 Off Play while active by external contact.
#6 On, #7 Off Play once active by external contact.
#6 Off, #7 On Auto-repeat once. No external
contact needed.
#6 On, #7 On Auto-repeat twice.
#8 On Play Pre-page tone.
The 4-position dip switch (SW-272-2)
offers the following selections:
Page Delay:
(Delay time after recording ends before page play).
#1 Off, #2 Off 1 second delay.
#1 On, #2 Off 3 second delay.
#1 Off, #2 On 5 second delay.
#1 On, #2 On 10 second delay.
#3 and #4 - Spare switches.
Typical dipswitch setting is:
SW272-1 SW272-2
#1 ON #1 OFF
#2 ON #2 OFF
#3 ON #3 N/A
#4 OFF #4 N/A
#5 ON
#6 OFF
#7 ON
#8 OFF
Volume Control Setup
There are three volume controls on the V-9962.
VOX - Adjusts the voice sensitivity of the record by
VOX or DTMF activation. (Typical
adjustment of this control is completely
clockwise).
LINE - Adjusts level of page from Output 1 line level
600Ω output.
SPKR- Adjusts level of page from Output 2 speaker
level 8Ω output.
OPERATION
For proper operation, the V-9962 must receive a
RECORD command. This command will be from an
external source in the form of:
1. External dry contact closure: Between
terminals #6 (BL/R)(Record), and #31
(R/BL)(Com). The unit will record as long as
the contact closure is supplied to the unit or
until the maximum record time is reached.
When the Closure signal is removed, the V-
9962 automatically switches modes to re-play
the "just recorded" page. The re-play will be
played according to options selected during
set-up.
1 2 3 4 5 6 7 8
1 2 3 4
SW272-1 SW272-2
On
To Next Page
