1. Mount the wall mount box into the double gang box using four machine screws(#6-32) included in the kit.
2. Connect the ground wire into the flush mount box using the tooth lockwasher and machine screw nut (included in the kit).
3. Disconnect the red filter from the display panel.
4. Connect the wiring as shown on the wiring diagram.
5. IMPORTANT: If using a low voltage system (24 volt) make sure that the transformer is an isolated transformer.
6. Mount the display panel into the flush mount box using four (4) black machine screws (#6, included in the kit). Make sure
the switches are on the right side.
7. Snap the red filter into the display panel.
Installation Instructions

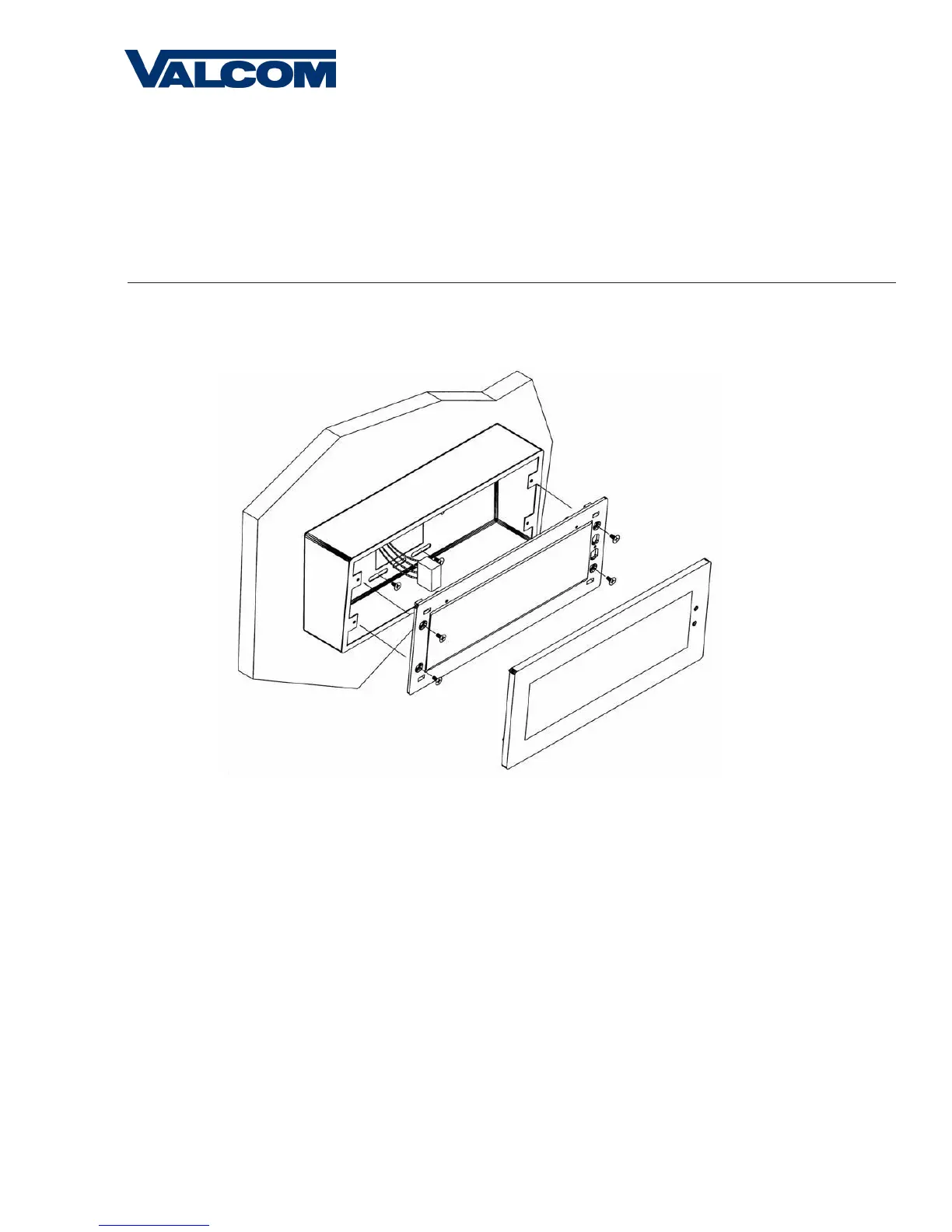

Surface (Wall) Mount Installation

Valcom V-D2425 Specifications

General

Brand	Valcom
Model	V-D2425
Category	Clock
Language	English
