Intel LGA1200/1700 Installation

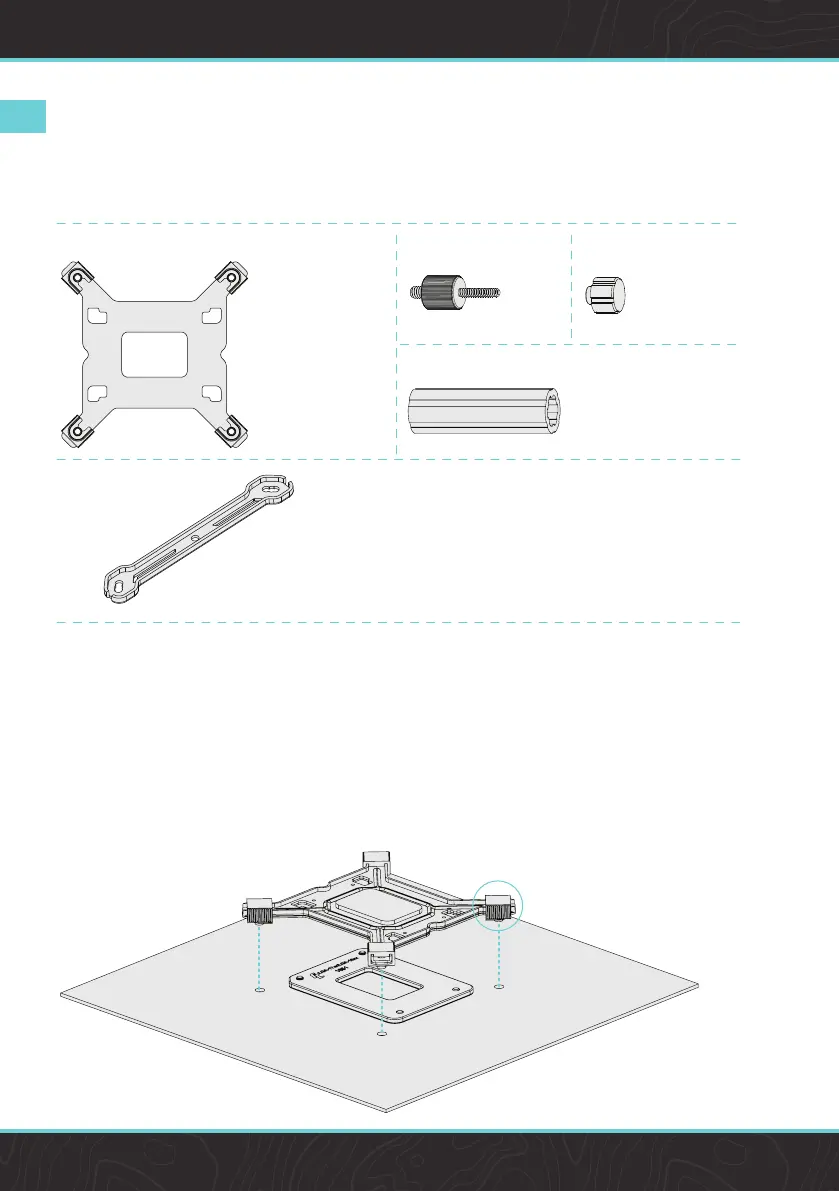

We have marked the parts required for installing the Intel LGA1200/1700
platform for you.
1x Intel Backplate
2x Intel Brackets
4x Intel / AMD Bolts
1x Nut Socket
4x Nuts
Step 1: Install backplate
1. Align the backplate to the corresponding platform holes.
2. Install the backplate onto the back of the motherboard.
* You may slide it to adjust for alignment with the corresponding platform holes.
* Use the inner mounting hole position for 1200
(115X) and outer mouting hole position for 1700.
EN
To Next Page
