Vallox 70 - Main Parts

VALLOX 70
MAIN PARTS
2
2
13
15
6
97
10
3
16
3
16
14
8
18
1
17
18
4
2
17
11
5
12
13
15
6
97
10
3
16
3
16
14
8
18
1
17
18
4
2
17
11
13
15
6
97
10
3
16
3
16
14
8
18
1
17
18
4
2
17
11
5
12
CALENDAR
Spring:
• Wash or replace the coarse filter, and clean or
replace the fine filter if needed.
• Check the fan impellers and the post-heating
radiator if needed.
• Check that summer ventilation is in operati-
on. When needed, replace the heat recovery
cells (3) with (optional) summer cells, so that
discharge air will not heat air coming from
outside..
MAIN PARTS......................................................................................................... s. 2
1. THREE QUESTIONS ABOUT VENTILATION
1.1. Why Are Rooms Ventilated? ..................................................................... s. 3
1.2. What Are the Characteristics of Adequate Ventilation? ................................ s. 3
1.3. How Much Ventilation Is Needed? ............................................................. s. 3
2. INSTRUCTIONS FOR USE: VALLOX 70, 70 OK, AND 70 K
2.1. Initial Adjustments .................................................................................... s.4
2.2. Use of Ventilation ..................................................................................... s.5
2.3. Post-heating ............................................................................................ s.5
2.4 Air Filtration ........................................................................................... s.6
2.5. Defrosting ............................................................................................... s.6
3. INSTRUCTIONS FOR MAINTENANCE
3.1. Filters...................................................................................................... s.7
3.2. Fans and Post-heating Radiator.................................................................. s.7
3.3. Condensing Water................................................................................... s.7
4. TROUBLE SHOOTING .................................................................................. s.8
5. AUTHORIZED SERVICE REPRESENTATIVES........................................................ s.8

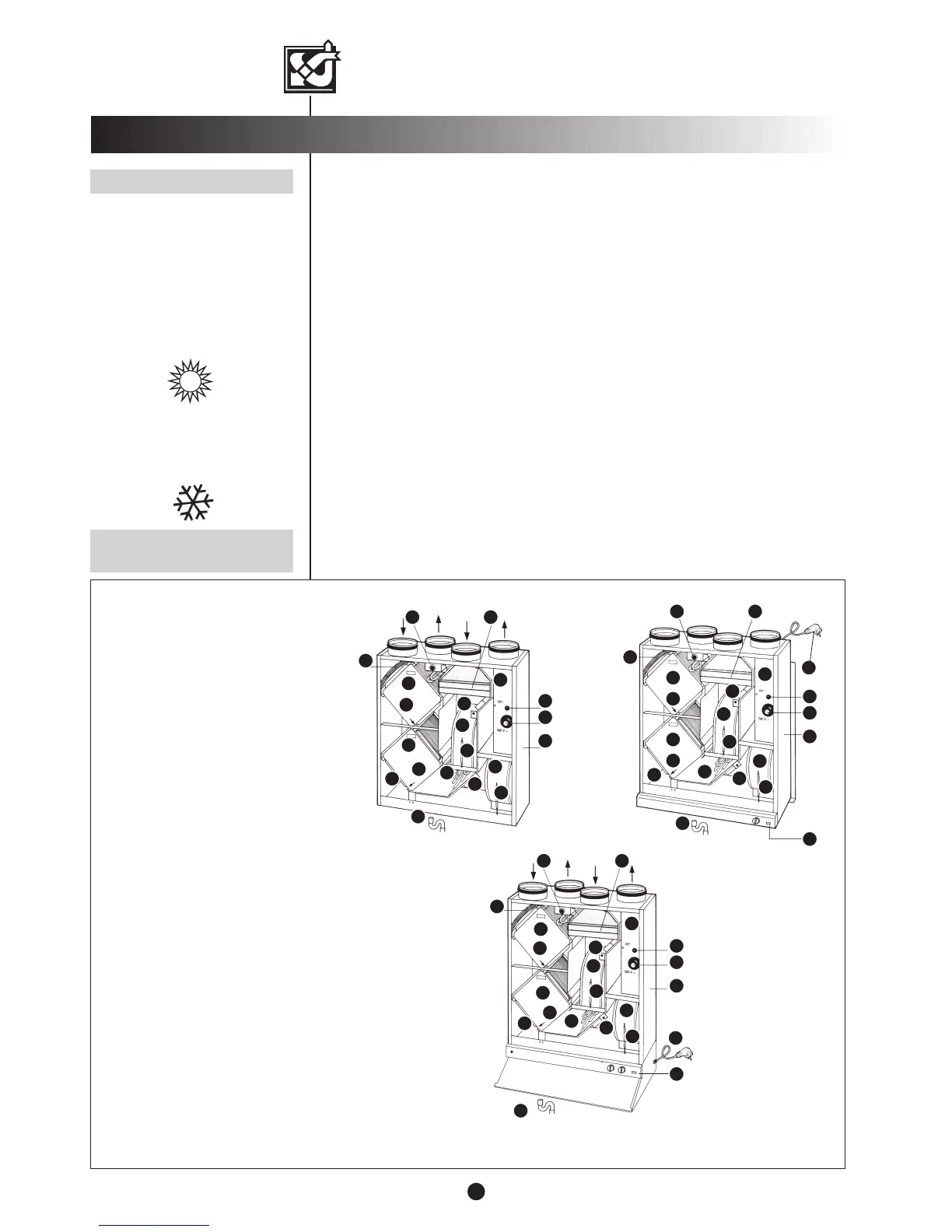

MAIN PARTS
1. Discharge air fan 90 W
2. Supply air fan 90W
3. Heat recovery cell, 2 pcs
4. Electrical connection
5. Control center, OK and K models
6. Adjustment thermostat of the post-
heating radiator
7. Post-heating radiator, 500 W
8. Preheater 1000 W, optional
9. Outdoor air filters
10. Discharge air filter
11. Water seal and hose, 2 m
12. Earthed plug, OK and K models
13. Adjustment of the defrosting thermostat
14. Sensor of the defrosting thermostat
15. Envelope and insulation
16. Drip groove
17. Fan fastener
18. Electrical quick-disconnect coupling of the fan
VALLOX 70 K
VALLOX 70 OKVALLOX
70
Autumn:
• Clean or replace the coarse filter, and clean or
replace the fine filter if needed.
• Check the cleanliness of the heat recovery
cell.
• Make sure the condensation water joint is not
clogged.
