VALLOX 75/95 has been initially adjusted for
normal circumstances in your home.
Ventilation adjustment is needed mainly in the
following circumstances:
2
2
VALLOX 75/95

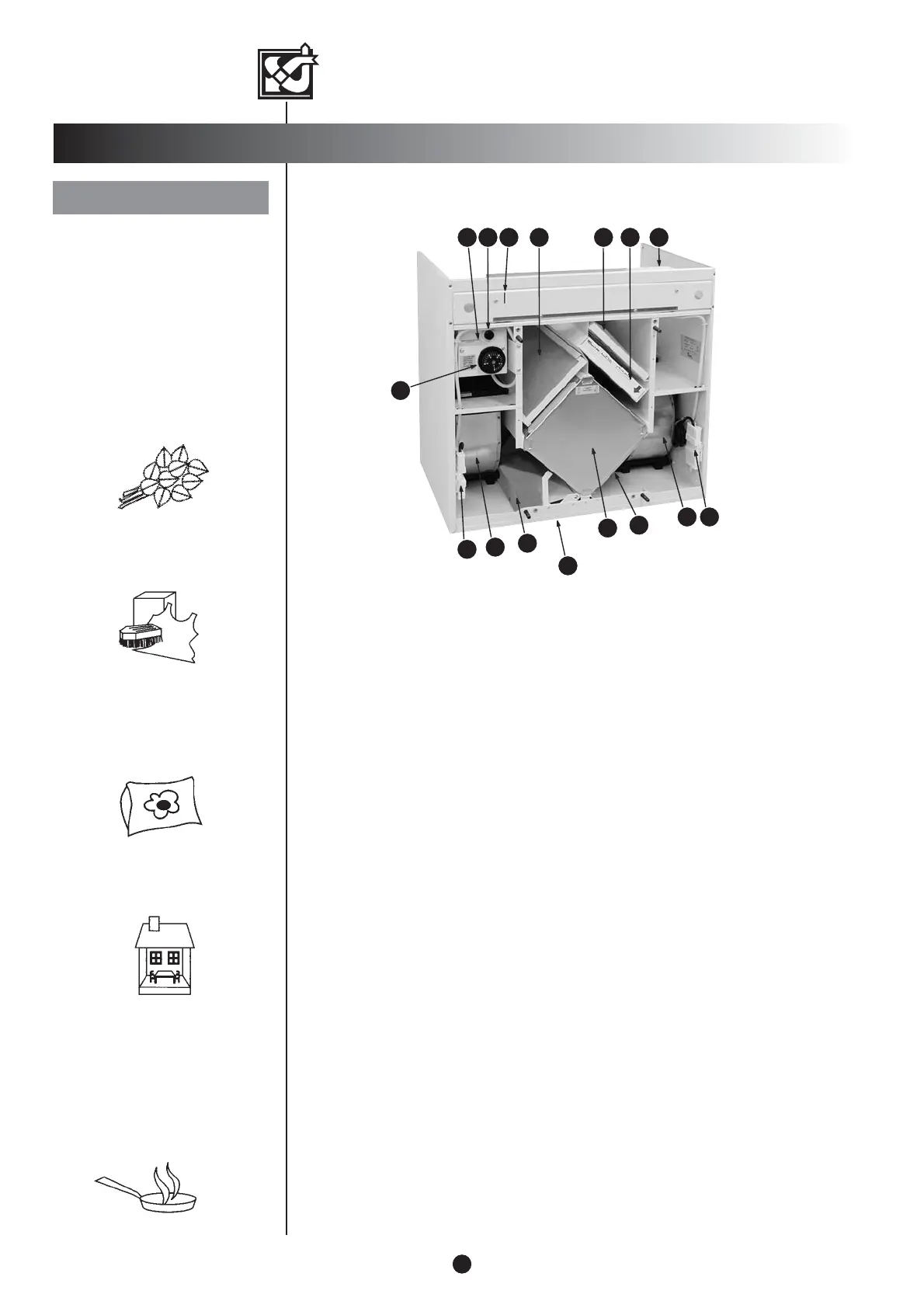

MAIN PARTS
2
2
VALLOX 75/95
1. Extract air fan
VALLOX 75 105 W
VALLOX 95 180 W
2. Supply air fan
VALLOX 75 105 W
VALLOX 95 180 W
3. Heat recovery cell
4. Damper for summer/
winter ventilation
5. Outdoor air coarse filter G3
EVERYDAY QUICK GUIDE
• Taking a bath
Boost ventilation in bathing and washing
facilities in order to ensure that the rooms
get dry as quickly as possible. It is recom-
mended to have boosted ventilation on for
2 to 3 hours after taking a sauna bath.
• Washing and drying clothes
Boost ventilation in washing and drying fa-
cilities during these activities.
• Sleeping
Ventilation in a bedroom has to be suffi-
cient throughout the night. The level is cor-
rect when air does not smell fusty when
you enter the room in the morning.
• Empty dwelling
To save energy, ventilation can be adjusted
to the minimum level.
• Cooking
When the ventilation unit is integrated with
a cooker hood, boost ventilation while
cooking food (the most common way in
blocks of flats to abate cooking fumes.
Small detached houses and terraced
houses are normally equipped with a sepa-
rate cooker hood.
6. Outdoor air fine filter F7
7. Extract air coarse filter G3
8. Electrical connection box
9. Post-heating radiator 500 W (in picture)
or, in VKL models, water radiator
10. Post-heating radiator regulating thermostat
11. Condensing water outlet (below the unit)
12. Cell antifreezing sensor
13. Safety switch
14. Electrical quick-connect terminal for fans
15. Overheat protection reset button
