36
Model Code Page
21. Engine
1. 11. 2000
95--115
X100--X120
210 14

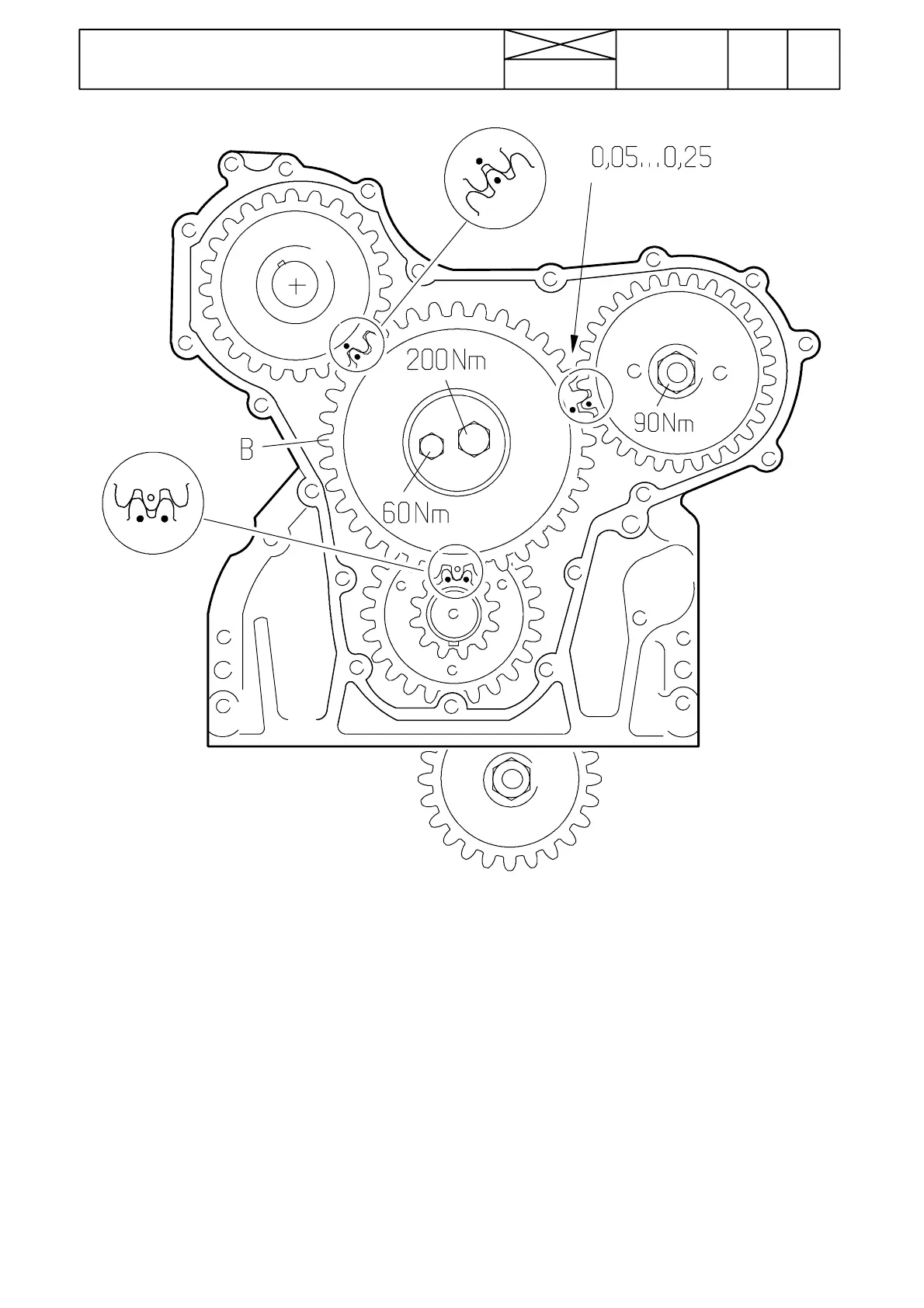

Timing gears
The timing gear train consists of hardened, helically cut gear
wheels. The gears are encased by the timing gear casing
which is fitted to the frontof the engine. Thetiming gear drives
the camshaft, fuel injectio n pump and oil pump.
The idler gear is supported with a bearing sleeve on the shaft
on the front face of the cylinder block.
