Valtra N Series User Manual

• Roof hatch
3
4
5
1
2
GUID-BA2C1723-EB95-4628-8964-6805ECBE1B9A

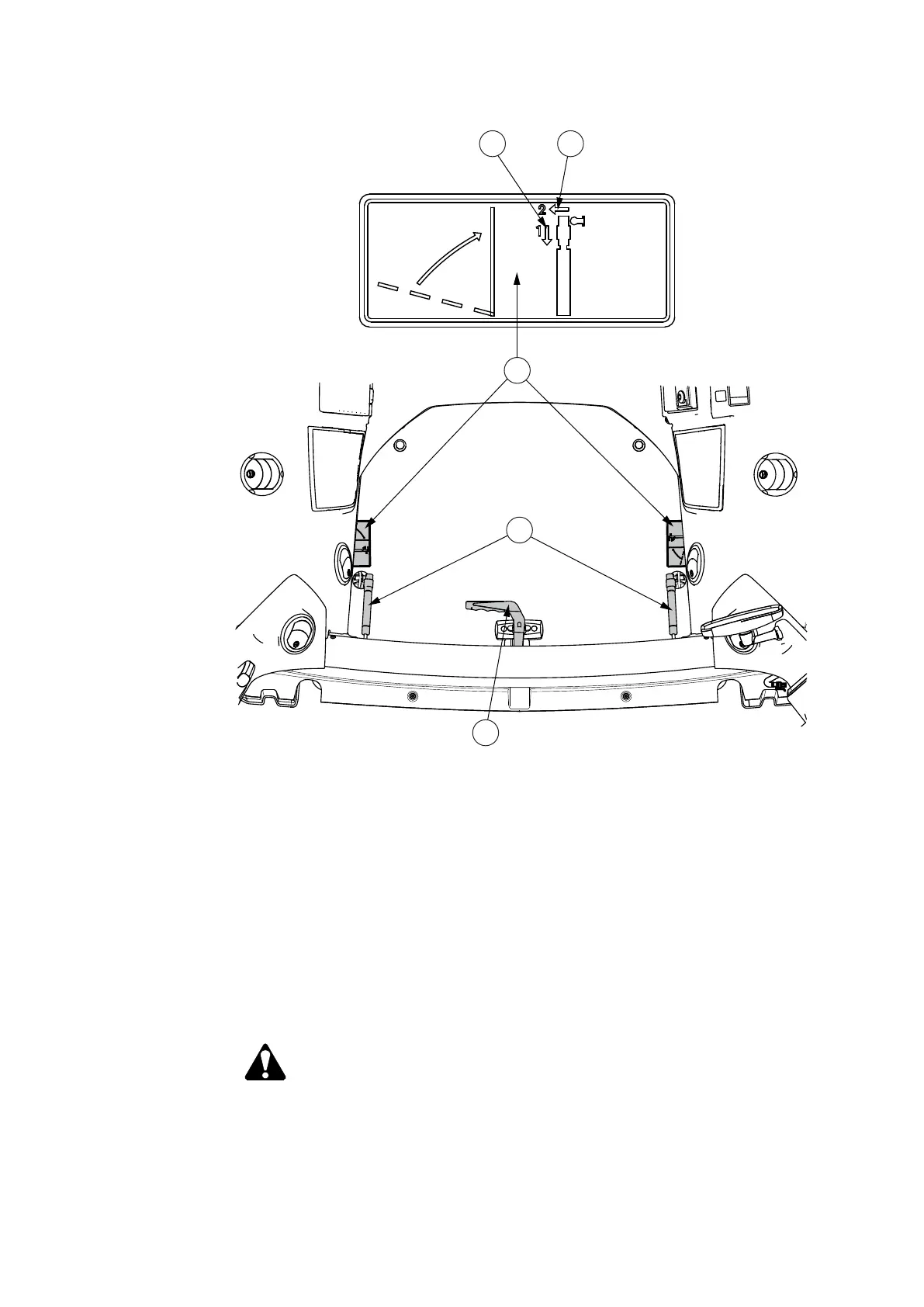

1. Direction for releasing the lock
2. Direction for detaching the spring
3. Safety sign for using the emergency exit
4. Gas springs with quick locks
5. Handle
• Pull open the sunshade.
• Turn the handle to unlock the hatch.
• Release the locking of the gas springs by pulling the spring shafts to the
direction the arrow indicates.
• Detach both gas springs from their quick locks by pulling to the direction
the arrow indicates.
• Push the hatch fully open.
WARNING: When driving on ice, keep the roof hatch open.
1. Safety precautions
- 24 -
