3.21.5 Changing the pick-up hitch implement
3.21.5.1 Changing the Euro pick-up hitch implement
You can change the Euro pick-up hitch implement. When the trailer hitch or
drawbar is not in use, you can fasten it to the bracket on the rear side.

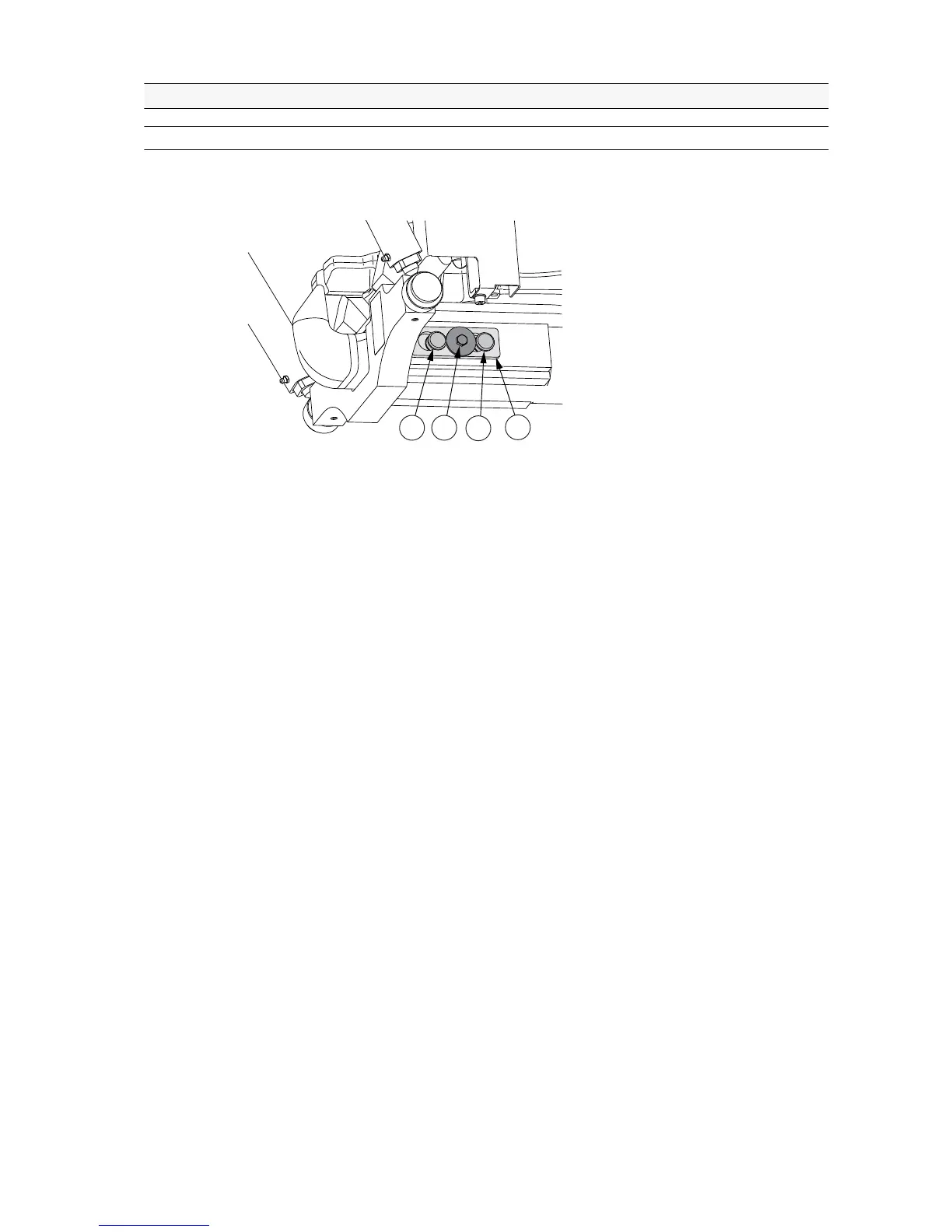

GUID-7A2CAC17-5E58-4744-91D1-2B502FCE1387
1. Locking pins
2. Screw and washer
3. Locking plate
1. Ensure that the pick-up hitch is in the locking position.
Lift to the locking position if not.
2. Remove the screw and washer.
3. Push the locking plate forward and pull to the side to remove it.
4. Remove the locking pins by pulling.
Support the pick-up hitch implement by hand while removing the locking pins.
5. Pull the implement out.
6. Attach the pick–up hitch implement.
7. Fit the locking pins.
8. Fit the locking plate and pull backwards into place.
9. Fit the screw and washer.
Tightening torque is 23 Nm.
3. Operation
- 235 -
