Value VRR24L-R32 - Parts Diaqrarn

'JALUE@

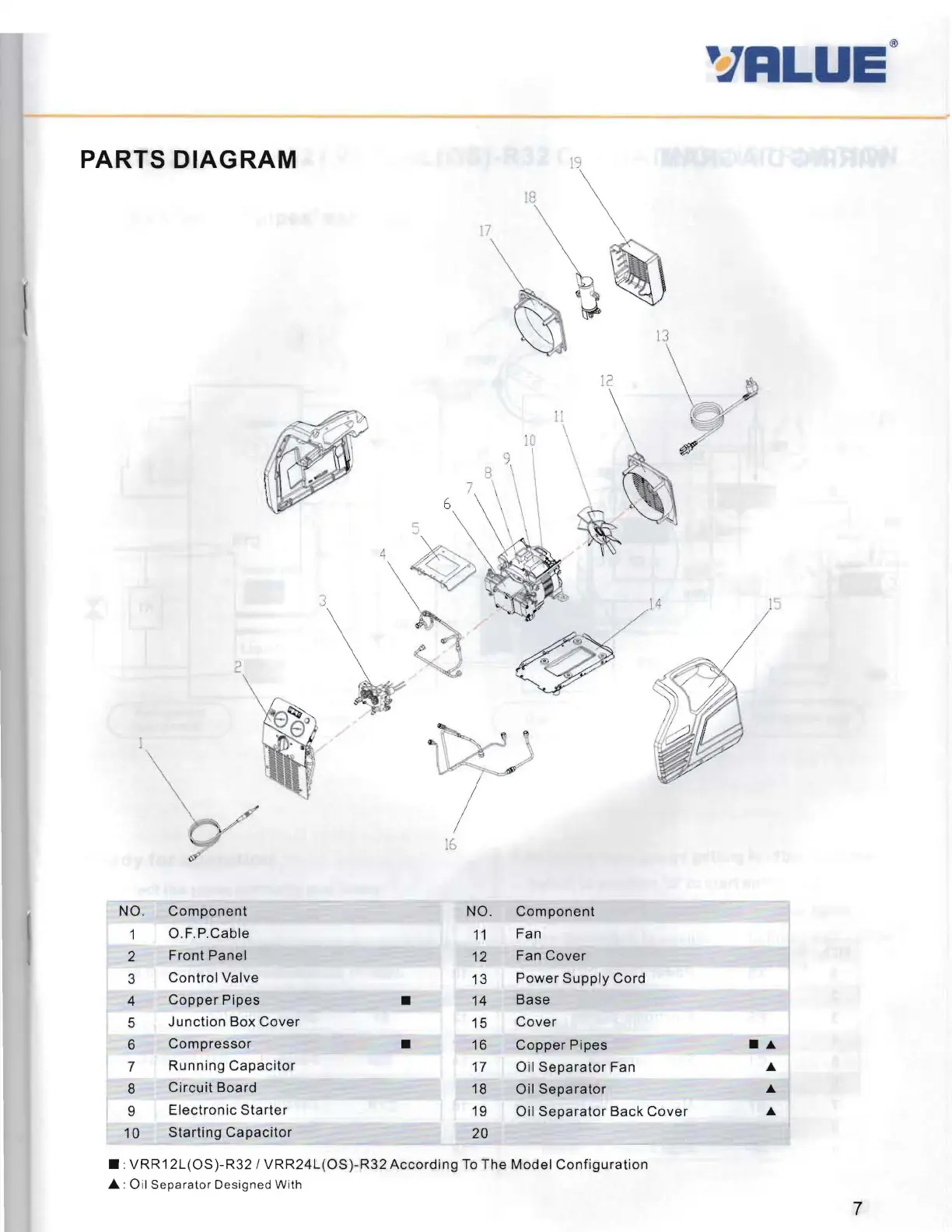

PARTS DIAGRAM
NO. Component
1 O.F.P.Cable
2
Front Panel
3
Control Valve
4
Copper Pipes
5 Junction Box Cover
6 Compressor
7 Running Capacitor
8 Circuit Board
9
Electronic Starter
10 Starting Capacitor
18
7
\
16
NO.
11
12
13
•
14
15
•
16
17
18
19
20
Component
Fan
Fan
Cover
Power Supply Cord
Base
Cover
Copper Pipes
....
Oil Separator Fan
...
Oil Separator
...
Oil
Separator Back Cover
...
. :
VRR12L (OS)-R32 / VRR24L(OS) -R32 According To The Model Configuration
. : O il Separat or Des igned With
7
