ValueHD Corporation
10

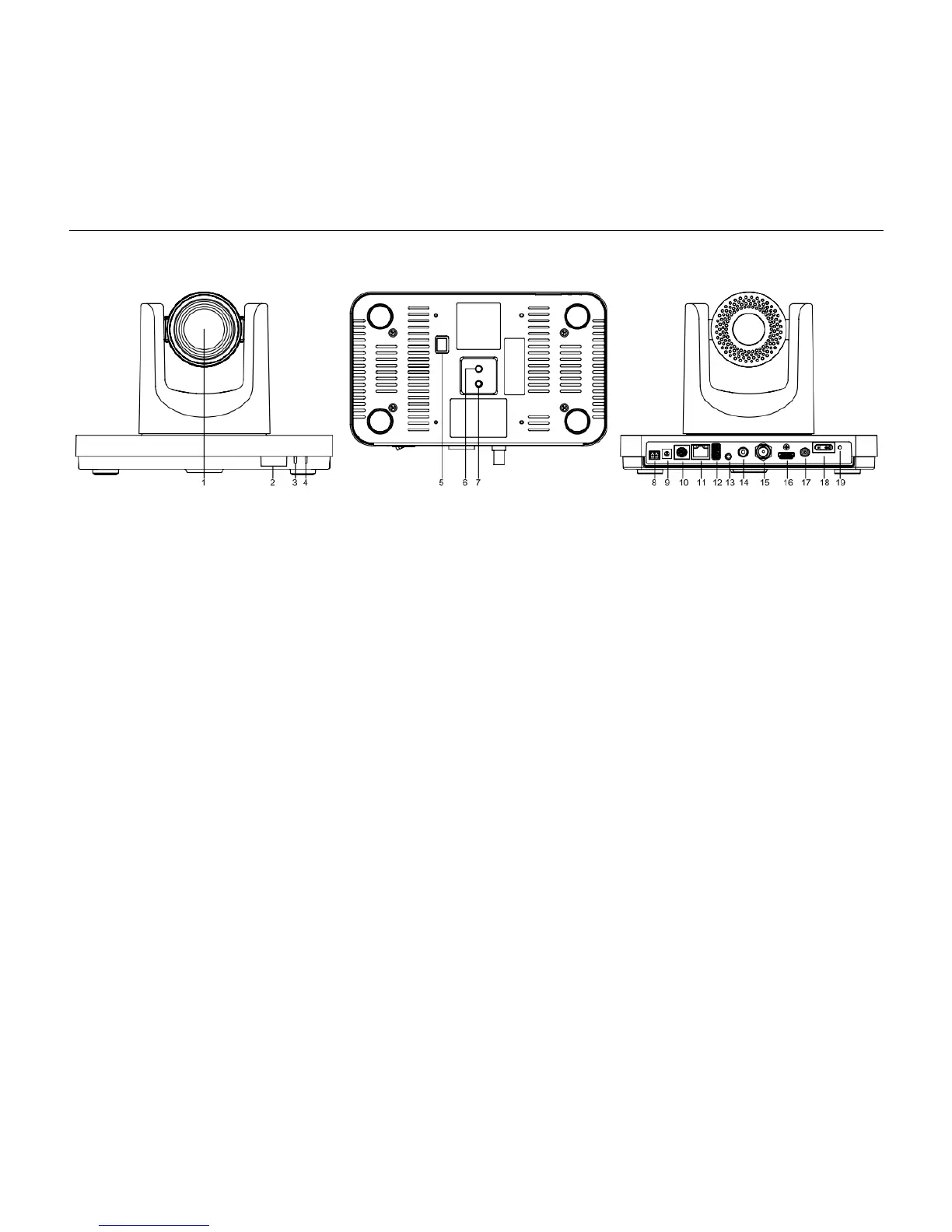

Main Unit
1. Lens 11. RJ45 interface
2. Sensor for the Remote Commander 12. USB interface
3. Power lamp 13. Audio out interface
4. Standby lamp 14. CVBS interface
5. Bottom switches 15. HD-SDI interface
6. Tripod screw hole 16. HDMI interface
7. Fixing screw hole 17. DC IN 12V jack
8. RS485 interface 18. Power switch
9. System select switch 19. POWER lamp
10. RS232 interface
