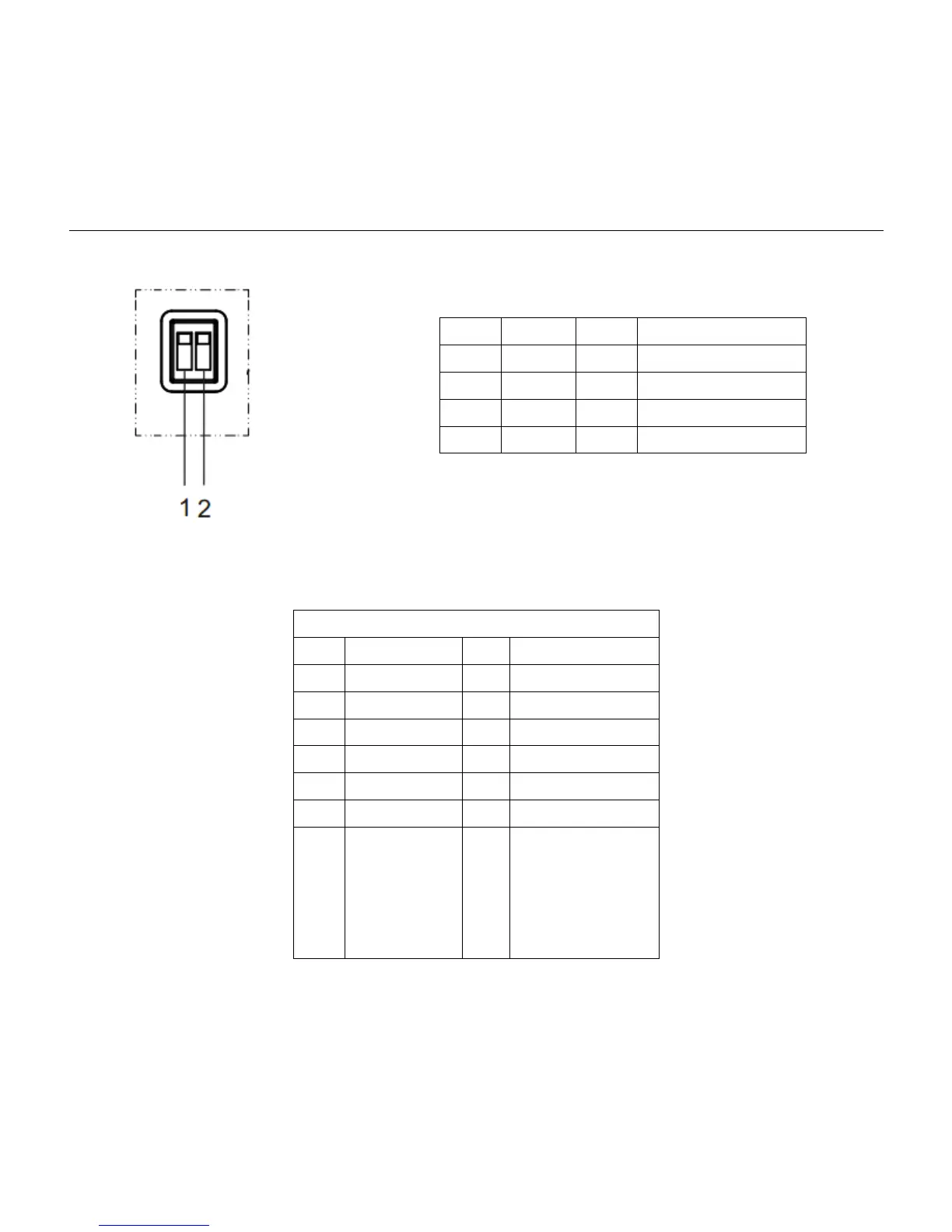

Step2. Setting of the bottom switches
Set both of the switch1 and switch2 to ‘OFF’. That is ‘Normal Working Mode.
Step3. Setting of the system select switch
The option of video format:
VIDEO SYSTEM
0
-
8
-
1
-
9
-
2
1080i60
A
-
3
1080i50
B
-
4
720p60
C
-
5
720p50
D
576i
6
1080p30
E
480i
7
1080p25
F
Network
output(HDMI,SDI
output only
1080P30,1080P25
video format)
SW-1
SW-2
Modes
1
OFF
OFF
Normal Working Mode
2
ON
OFF
-
3
OFF
ON
-
4
ON
ON
-
